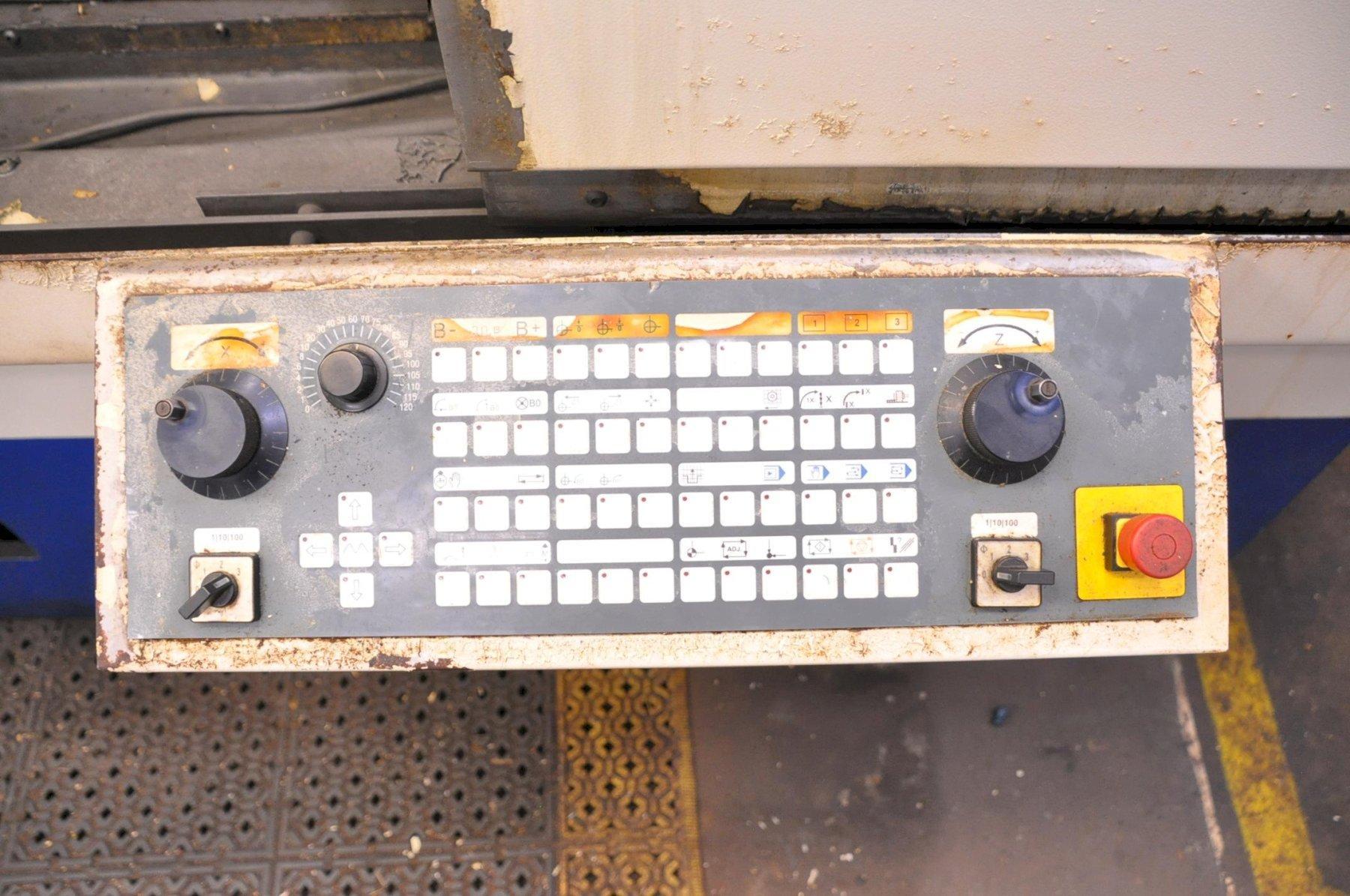

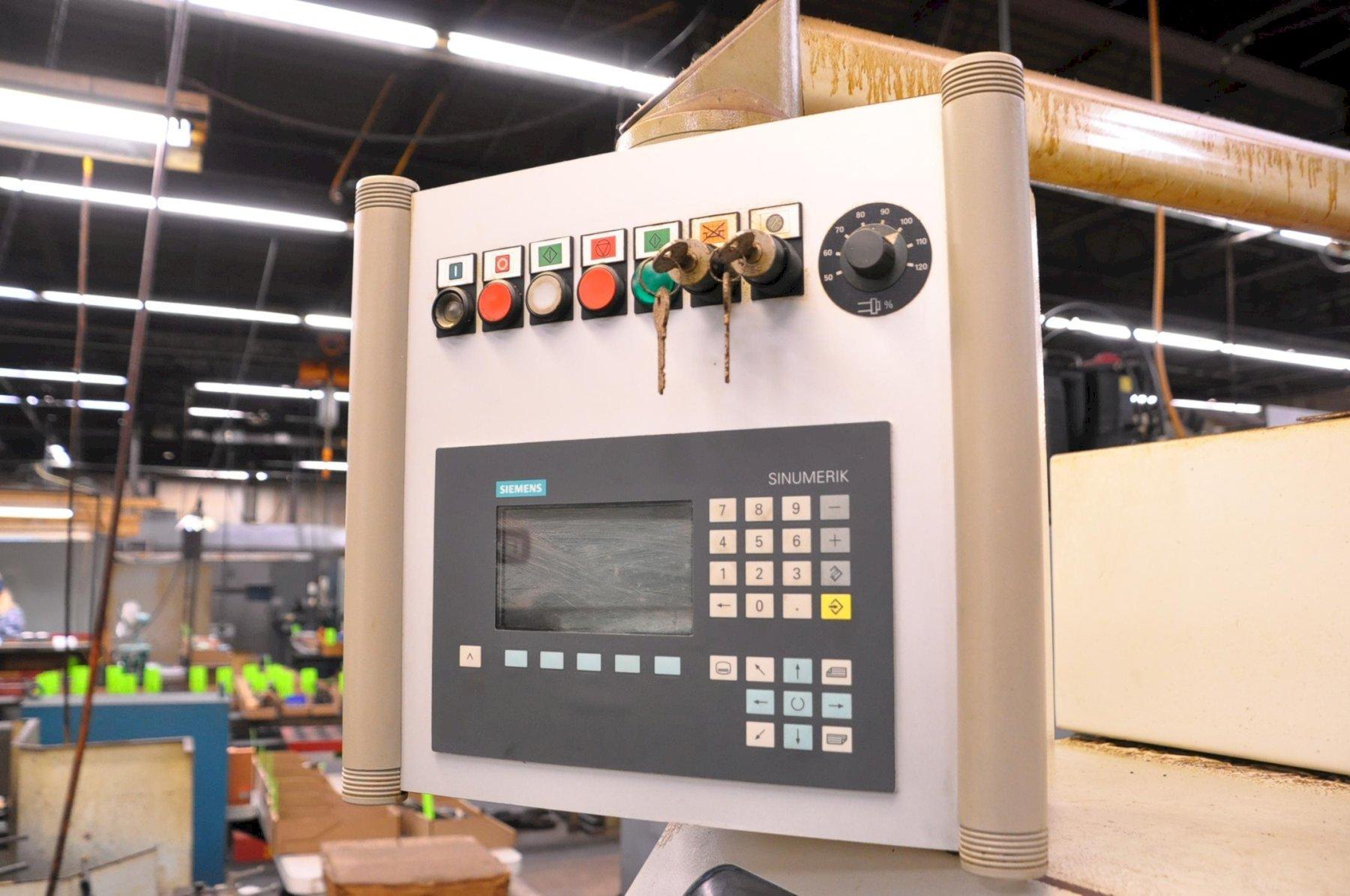

Control Type: Siemens Sinumerik OP030 CNC Control
Max Workpiece Swing Diameter: 280mm
Length of work admitted for hole grinding: 250mm
Length of work admitted for hole & radius grinding, measured from the headstock flange: 200mm
Grindable Hole Length: 160mm
Max. Grindable Hole Diameter: 200mm
Max Grindable Hole for Radius Grinding: 140mm (2x Radius of Curvature)
Max Grinding Radius: 50mm
Max Workpiece Weight: 60kg
Max Swiveling range of Workhead: 110*
Spindle Speed: 50-1000 RPM
Internal Spindle Taper: 5MK
Flange Diameter of Headstock Spindle: 140mm
Grinding Table:
Max Travel Speed: 15m/min
Oscillation Path: 370mm
Min/Max Distance Between Workpiece: 50mm x 630mm
Headstock Max Travel: 170mm
Traverse: 250mm(X-Axis) x 320mm (Z-Axis)
Grinding Spindle Speed: 1000-4500 RPM/Min
Spare Spindle for additional cost:
GMN TSI60C X 200-600l18R 35,000RPM Spindle

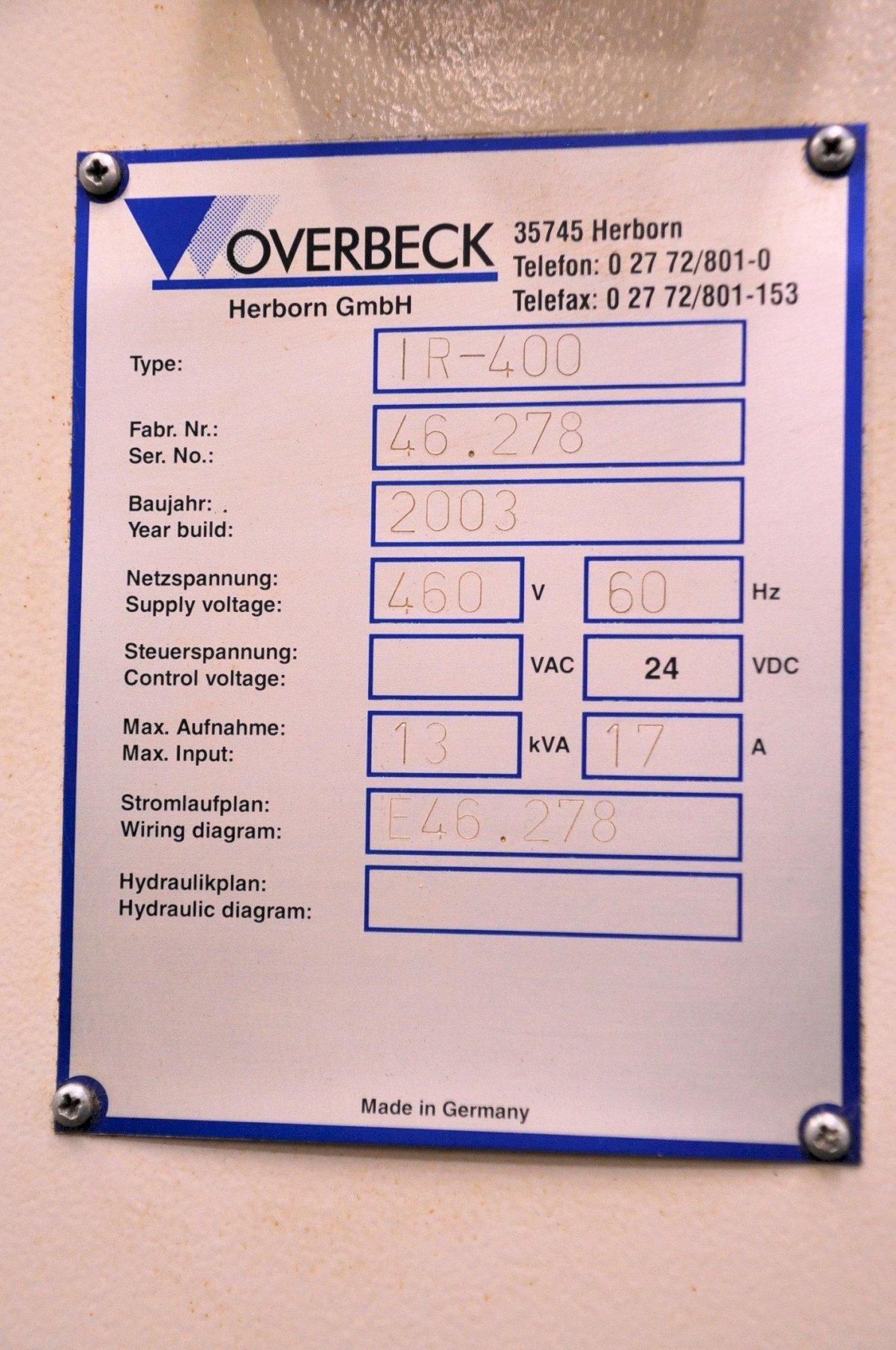

Voltage: 3ph / 460V / 60Hz
Machine Weight: 3000kg
Dimensions: 2100mm x1900mm x 2000mm
Available for Inspection by Appointment
Specifications Subject To Verification; Subject To Prior Sale & Price Change
