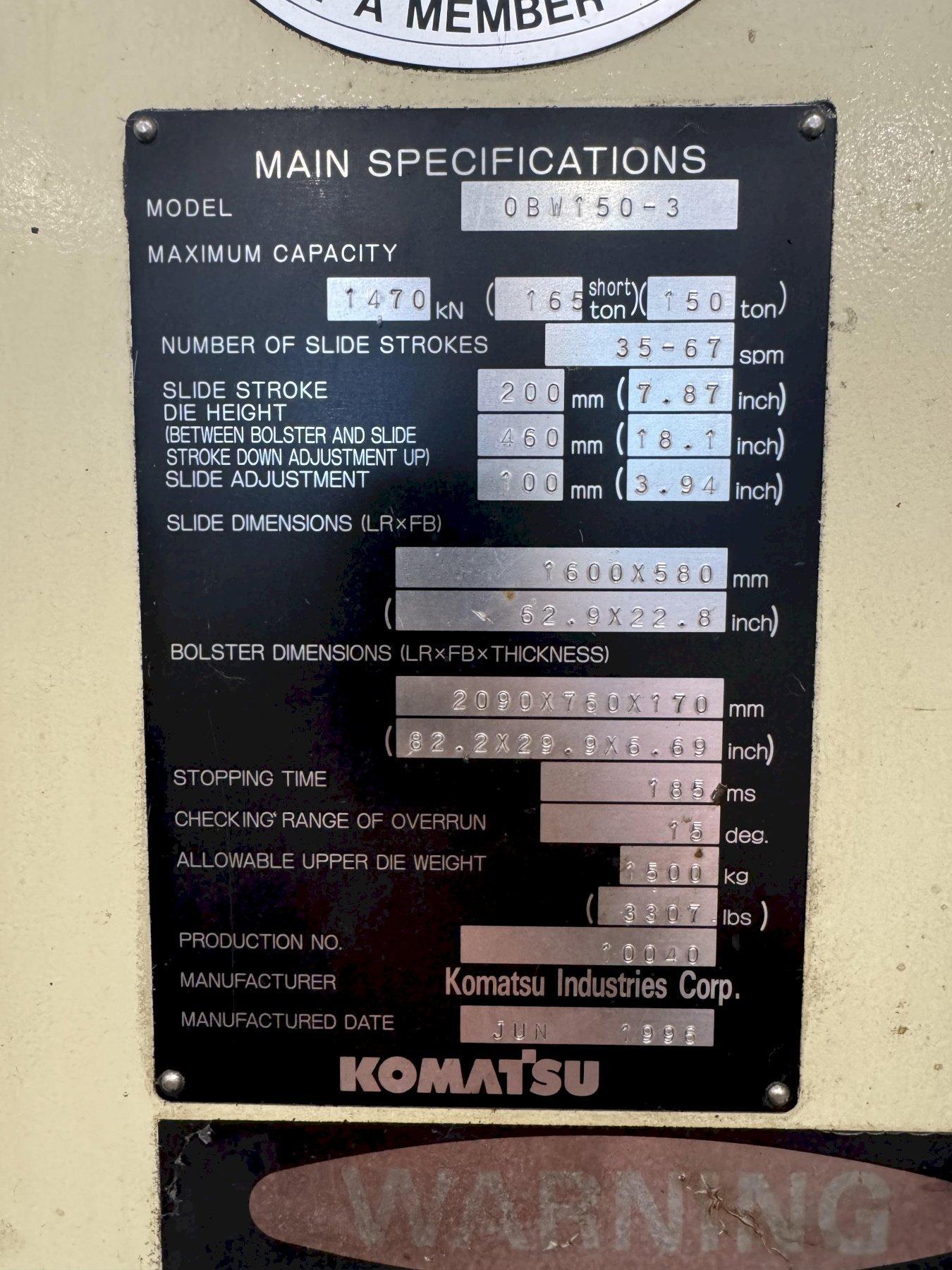

Specifications
Equipped With
Capacity: 150 tons US

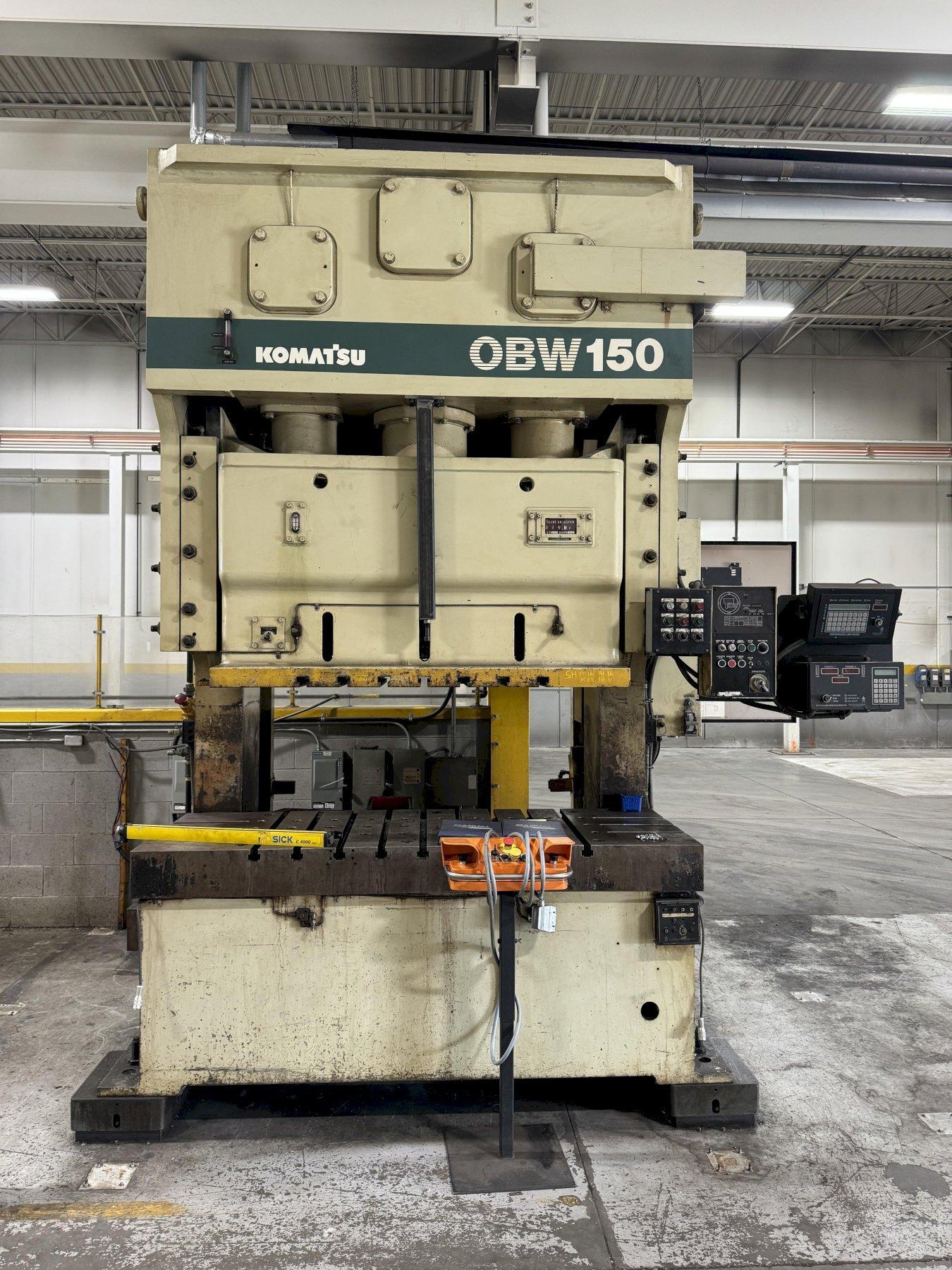

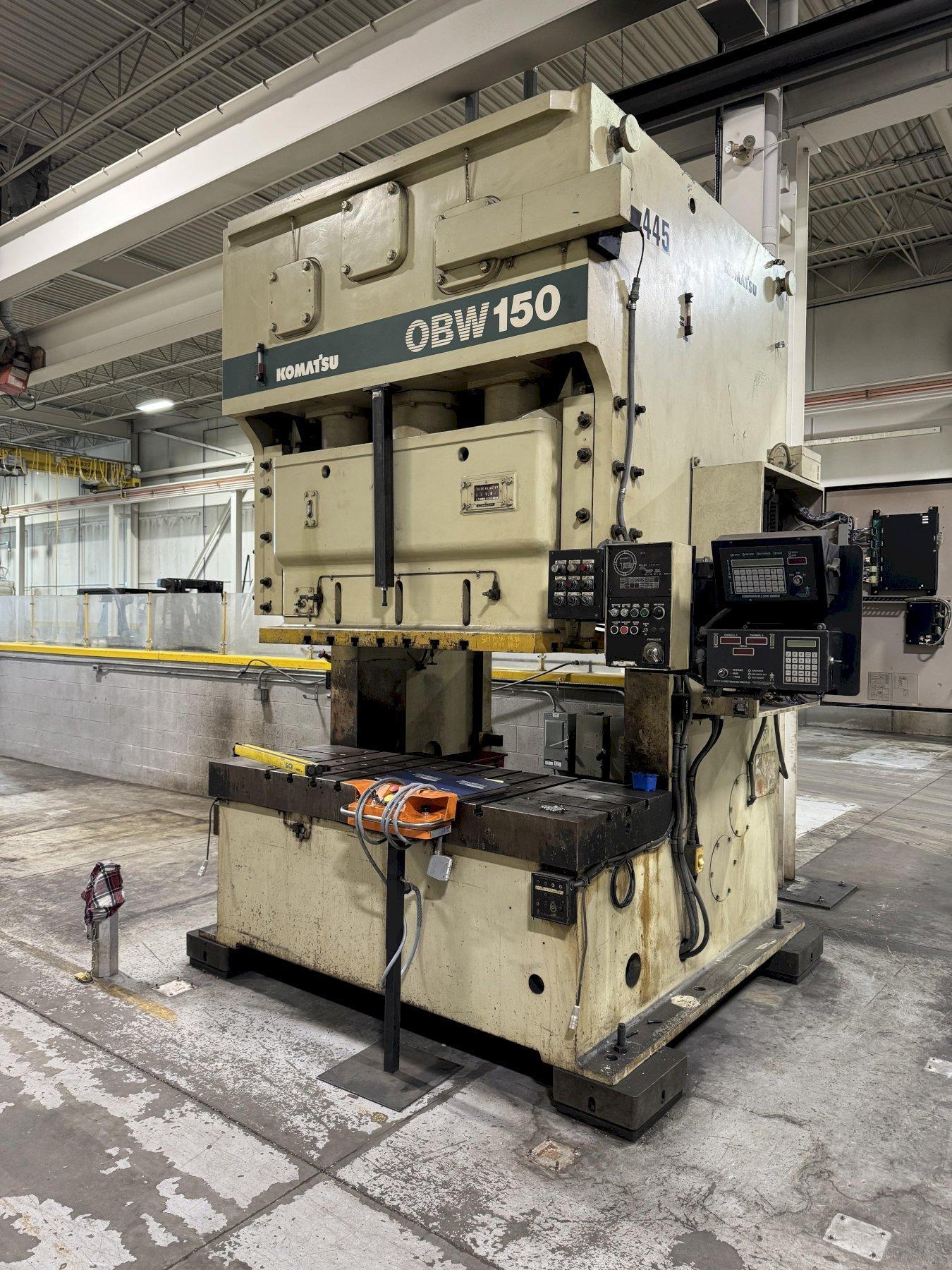

Model OBW 150-3
Stroke: 7.87”
Bolster S.D.A.U.: 18.11”
Bed Area: 82” x 30” (LR x FB)
Bolster Plate: 82.2” x 29.9” (LR x FB) x 6.69” Thick T-Slotted Plate
Ram Area: 63” x 22.8” (LR x FB)
Ram Adjustment: 3.94”
Speed: 35-67 Strokes per Minute
Distance Between Uprights: 63.75”
EQUIPPED WITH:
Air clutch and brake
air counter balances
Hydraulic overload protection
(3) Knock-Out Slots in the Ram
7" T-slotted bolster plate

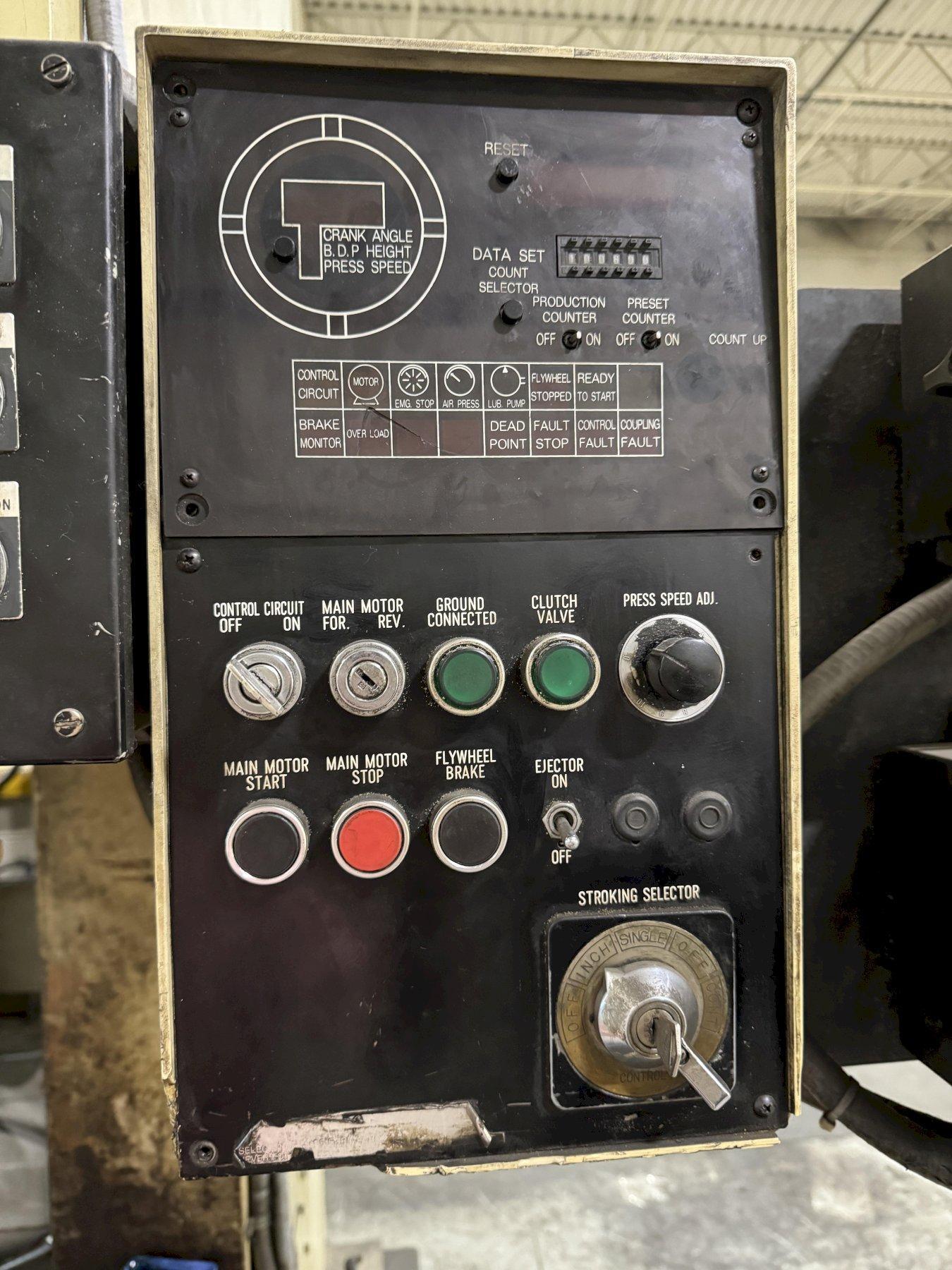

inch/single/continuous

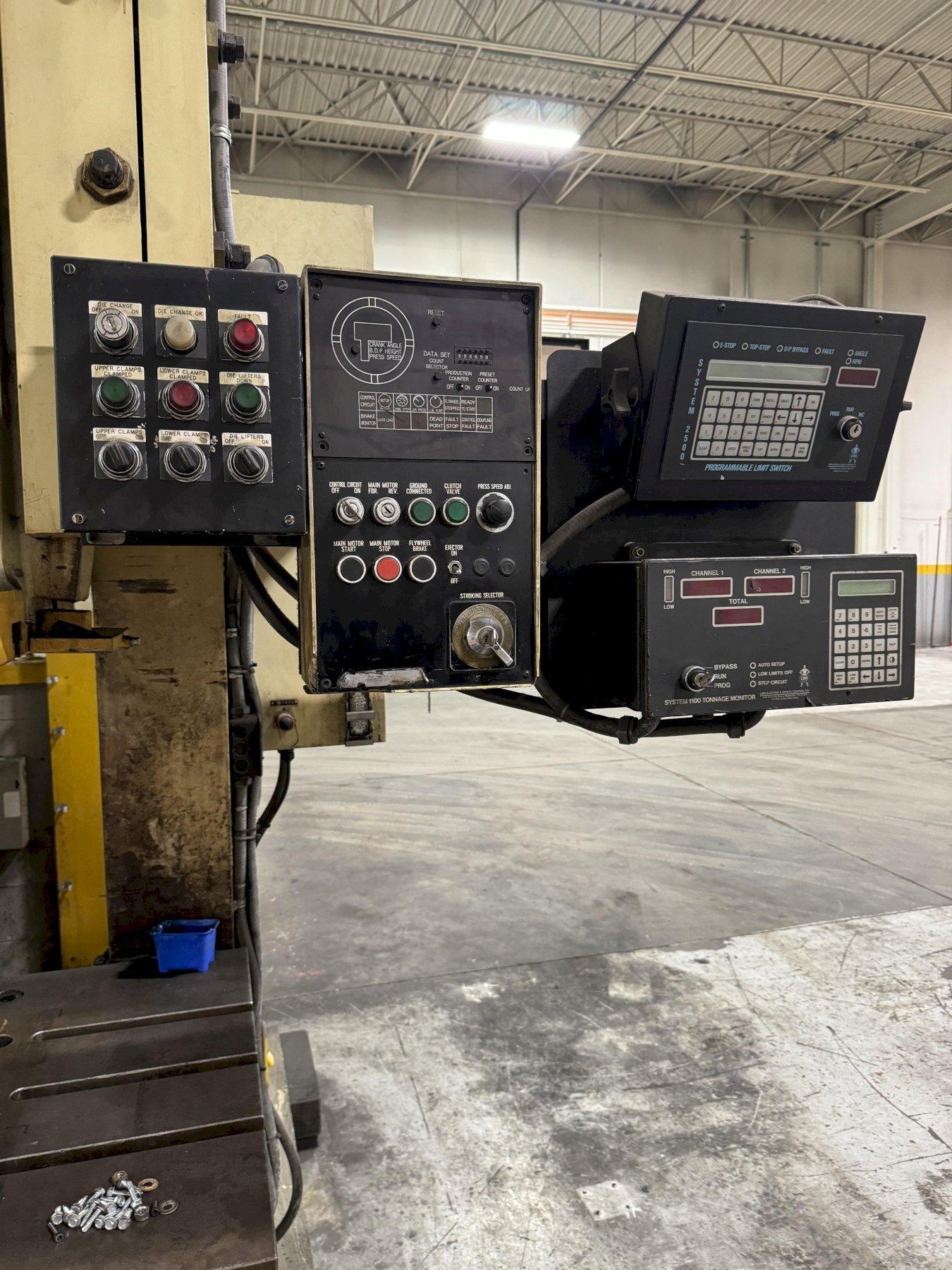

T-stand palm controls( with top stop,reset,emergency stop, slide control, )
light curtains
Vibro foot pads
T-Slotted Ram
Safety Block
Link model 1100 tonnage control
Overall Dimensions (approx.)
89" LR x 82.3" FB x 139.8" Overall height
55,000lbs weight
Floor Standing
Just arrived from a small tool shop was doing die tryout. In very good operating condition, please don't hesitate to call for an inspection.
