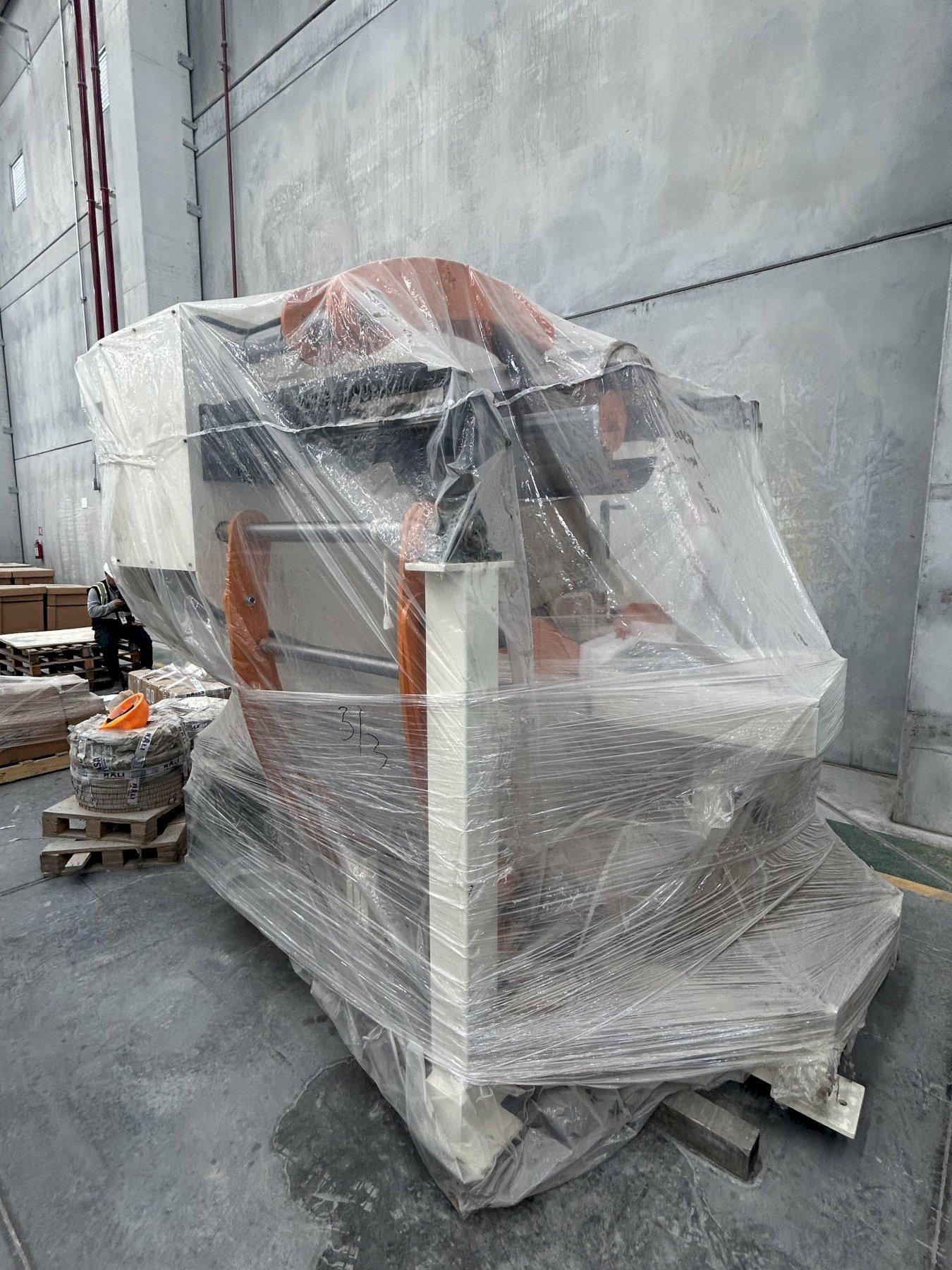

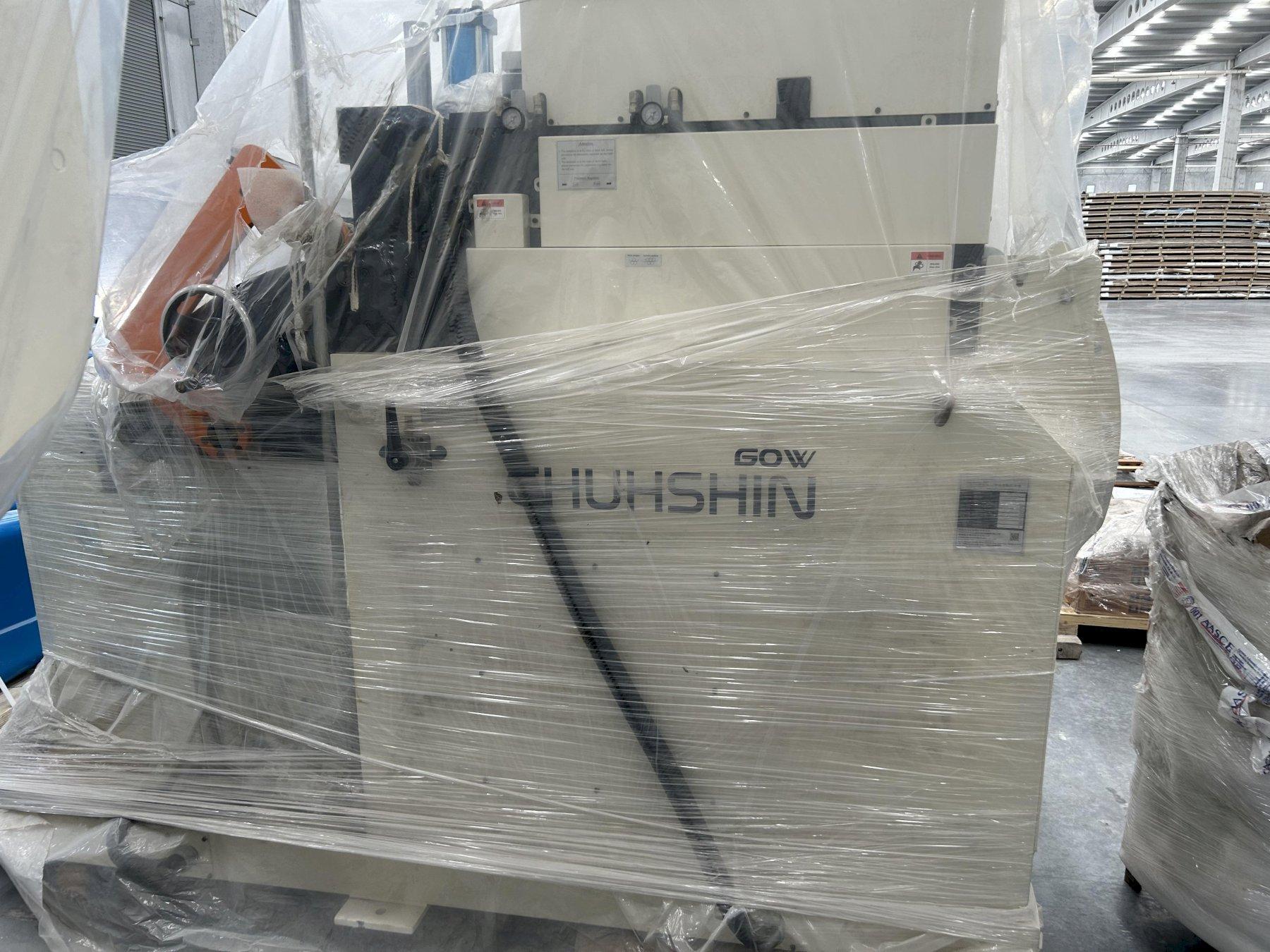

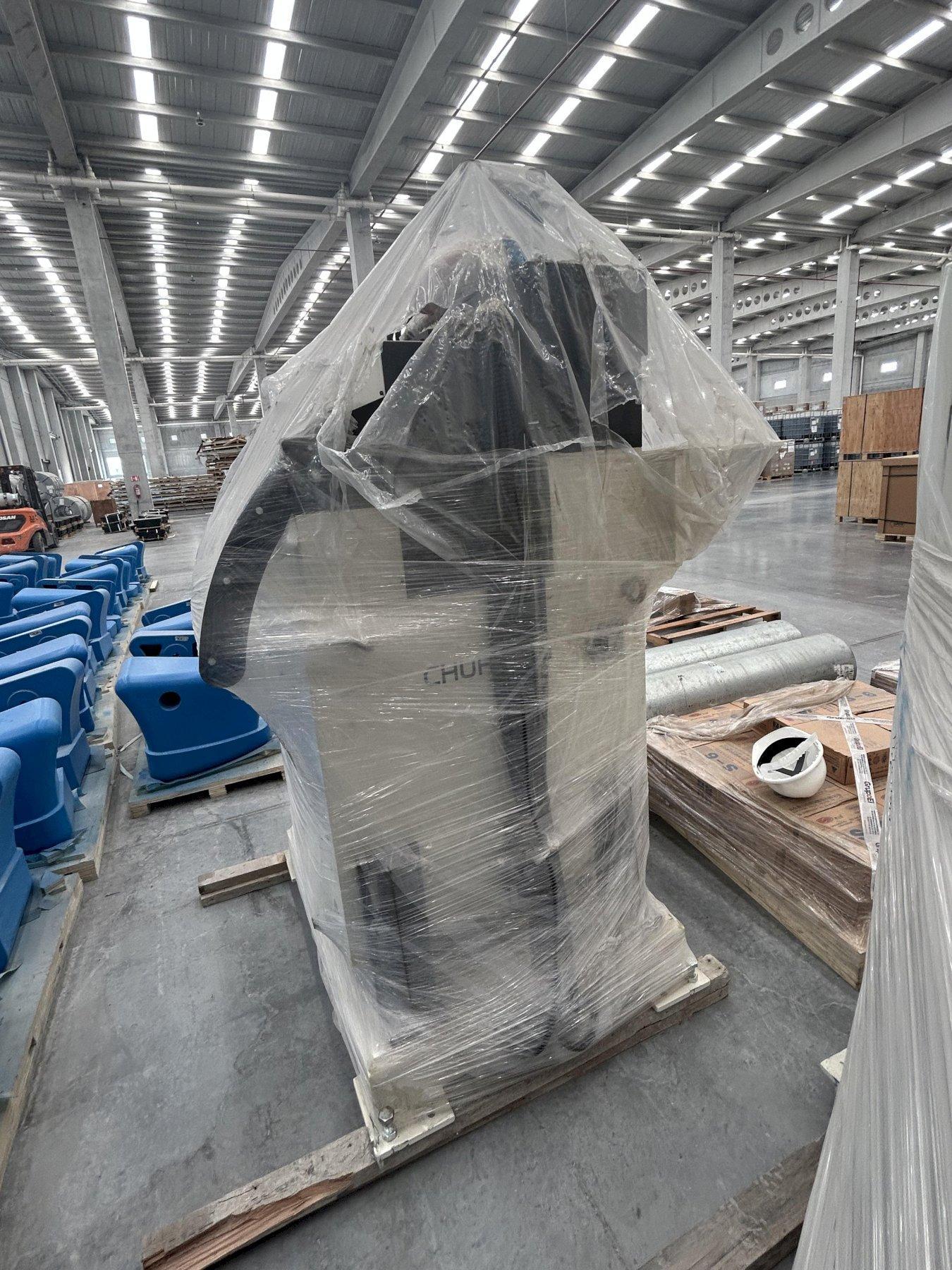

Coil width: 70-700 mm
Coil thickness: 0.5-4 mm
Coil I.D: 450-520 mm
Coil O.D: 1,500 mm
Max. coil loading ability: 5,000 kgs
Loop controller: Photo Sensor
Uncoiler driven manner: AC Motor Driven
Leveler driven manner: AC Servo Motor Driven
Feeding direction: Left to Right
Power system: 400V
Control power: AC 220V & DC24V
Pneumatic pressure: 5 kg/cm2
Hydraulic pressure (Lower): 70 kg/cm2
Hydraulic pressure (Higher): 140 kg/cm2

- Feeding speed: 18 M/min
- Feeding accuracy: +/- 0.1 mm
- Feeding height options: +/- 70mm
- Upper & lower roller diameters: 112mm
- Motor: 7 kW

Equipped with:

- Hydraulic shear
- Siemens control system
- UL compliant
- Motorized straightener adjustment

PASQUATO TR15/600 Slitting Machine:

- Current type: 3 Ph
- Voltage: 480 V
- Frequency: 60 Hz
- Air supply pressure: 6 bar
- Air consumption: 600 L/min
- Working width: 1,500 mm
- Max width master roll: 1,500 mm
- Max outer diameter master roll: 600 mm
- Max weight master roll: 200 kgs
- Min slitting width: 80 mm
- Max outer diameter final rolls: 600 mm
- Max weight final rolls: 100 kgs

YORK YVAA0153BAF46BAVSXX Chiller:

- Cooling capacity: 150.3 ton
- Power: 460 V, 3 Ph, 60 Hz
- Refrigerant: R513a
- Compressors (x2): VSD screw, semi hermetic
- Evaporator flow rate:
     Min: 250 GPM
     Design: 360 GPM
     Max: 980 GPM
- EER: 9.127 Btu/W*h
- IPLV.IP: 15.80 Btu/W*h
- NPLV.IP: 15.42 Btu/W*h
- Rigging weight: 11817 lbs
- Operating weight: 12280 lbs
- Refrigerant charge: 352.8 lbs
- Total power: 197.7 kW

UNIST UNI-ROLLER S2 Lubrication System:

- 35" Coverage, 42" Extrusion
- Polyester felt covers
- Standard dispenser tube
- 24 VDC solenoid

- SmartFlow control system
- 15 gal tank
- Stand for SmartFlow & Tank
- 25 Micron Filter Assembly

TimeSavers 42 Series 1350WRB Deburrer:

- Max working width: 1,350 mm
- Opening: 0.8-100 mm
- Feed speed: 0.2-8 m/min
- Vacuum pump: 15 kW
- Conveyor motor: 2.6 kW
- Motor (table height adjustment): 0.37 kW
- Electrical: 460V, 60 Hz
- Control voltage: 24 V
- Total power: 37 kW
- Required air pressure: 6 bar
- Total air consumption: 25 l/min
- Dust extraction required: 5,500 m3/h

- Set of abrasive belts (384F, 784F, 461F, Scotch Brite VFN)
- Frequency controller on carousel RB head (5-9 rpm)
- Steel wire brushes
- Aluminum oxide brush (#180, 3 & 5 mm)
- Conveyor cleaning brush
- Magnetic track for small parts
- Extended rear table
- Prep outfeed table w/ conveyor cleaning brush)
- 90 degree outfeed table
- Spare parts (brushes, roller, cylinder, valve, electrical eyes, shafts, bearings)

ABSAUGWERK SERIE B 3000 Wet Dust Collector:

- Supply voltage: 400 V
- Frequency: 50 Hz
- Current type: 3 Ph
- Motor: 5.5 kW
- Fuse: 25 A
- Fan Max: 6,900 m3/h
- Neg Pressure Max: 4,000 Pa
- Connection diameter: 315 mm
- Sound pressure: 75 dB
- Permissible ambient temp: 5-40 C
- Permissible humidity: 70%
- Water connection diameter: 25 mm
- Operating water pressure: 1-6 bar

- ATEX fire proection
- HEPA H14 filter
- Sludge container L
- Ducting to deburrer
- Spare steel mash & H14 filter

ECOVIS CAT-V90 G Thermal Oil Heater:

- Type: Vertical
- Number of coils: 2
- Working pressure: 5 kg/cm2
- Design pressure: 8 kg/cm2
- Hydrostatic test pressure: 10.4 kg/cm2
- Max working temperature: 350 C
- Design temperature: 330 C
- Fuel: Natural gas
- Heating surface: 35 m2
- Outlet thermal capacity: 765,000 kcal/hr
- Efficiency: 89%
- Fuel thermal requirement: 859,550 kcal/hr
- Burner:
     Manufacturer: Limpsfield
     Model: LCN15
     Capacity: 500,000 to 900,000 kcal/hr
- Shell material: ASTM SA-36
- Tubing material: ASTM A-106 B
- Insulation: 2" mineral wool w/ pintro steel cover
- Oil capacity: 444 L
- Inlet/outlet nozzle diameter: DN80 (3")

- Expansion tank:
     Material: 3/16" A-36 carbon steel
     Volume: 666 L
     Dimensions: 700 mm DIA x 1900 mm L
- Exhaust chimney:
     Material: Cal.14 galvanized steel
     Dimensions: 355 mm DIA x 6 m H
- Thermal oil pumps (x2):
     Mfg: Shii
     Model: ZNTD080160
     Type: Horizontal centrifuge
     Motor: 25 HP

Standard Catalog Specifications (subject to verification)
