Specifications
Equipped With
Preliminary specifications.

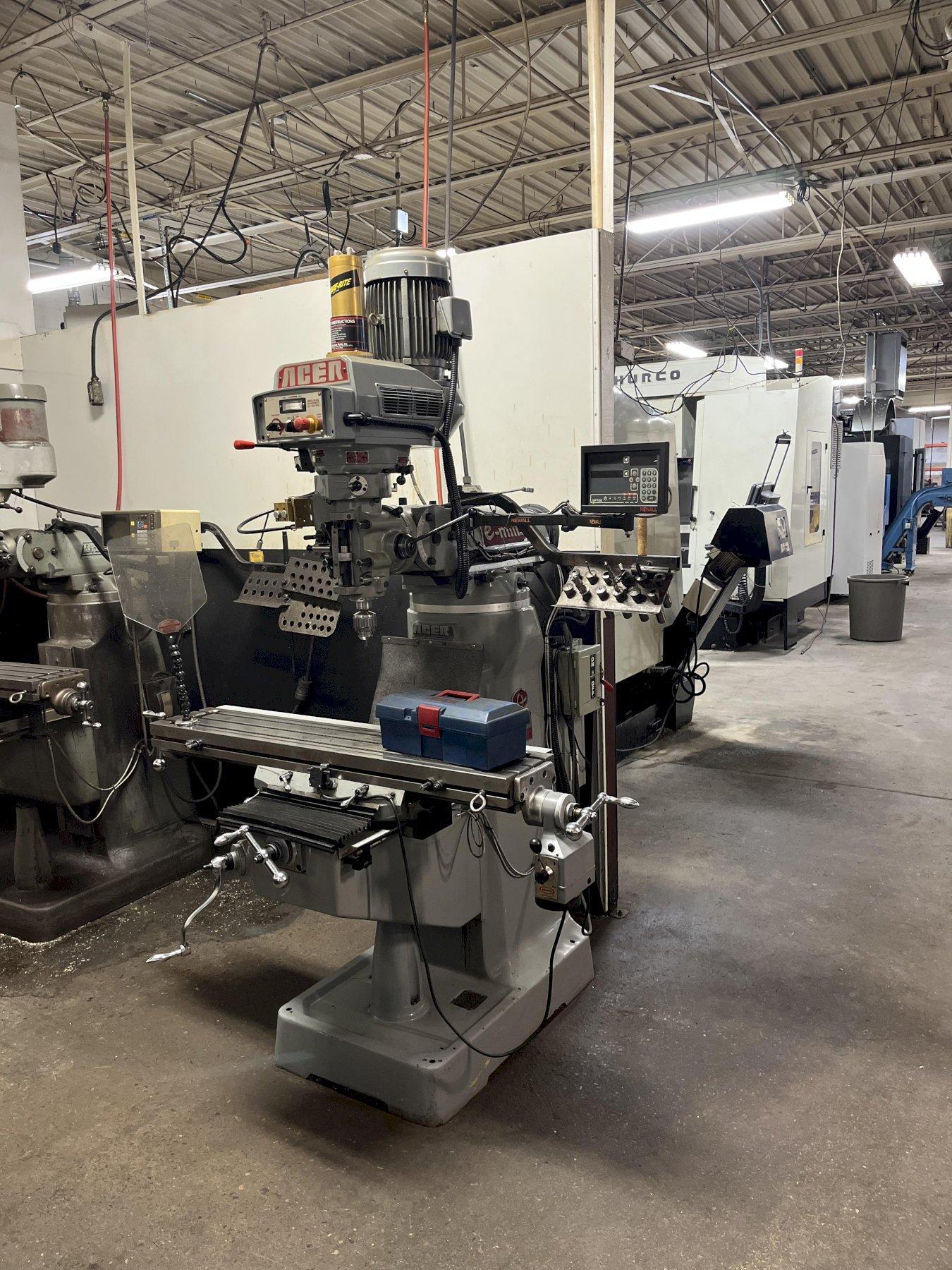

Model EVS-3VS II
49" x 9" power table
28" longitudinal travel
16" Vertical knee travel
12" cross travel
6-4500 RPM spindle speeds
Maxi Torque Rite, chuck torque
Jacobs chuck
2 axis Newall Model DP-700 DRO
Precision X, Y axes & knee by hardened & ground dovetail ways
3 H.P motor 220/440-3-60 cycles..inverter motor
1 shot lubrication
Dimensions aprox
67" x63" x 71" high
2380 aprox weight
This machine is from a small tool shop. Very low hours , very good working order.
