Presses For Industry

PRELIMINARY SPECIFICATIONS

NEW IN 1974

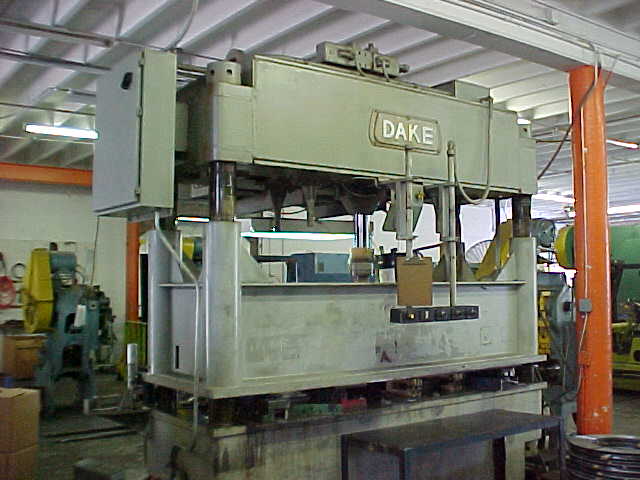

MODEL 27-683
75 TON CAPACITY
12" STROKE
12" DAYLIGHT OPENING
120" X 42" BED AREA
103" X 25" BETWEEN POSTS

SPEEDS:
500 IPM ADVANCE
150 IPM WORK CONTACT
30 IPM PRESSING
80 IPM BREAKAWAY
400 IPM RETURN

EQUIPPED WITH:
DYNEX PF2006 PUMP
VICKER V201P11R PUMP
20 HP MOTOR
- 1800 RPM
- 3 PH/60 CYCLE
90 GALLON CAPACITY OIL TANK

APPROX O.A. WEIGHT: 31,000LBS
APPROX O.A. DIMENSIONS: 158" X 85" X 140"H

IN PLANT UNDER POWER
