PRELIMINARY SPECIFICATIONS

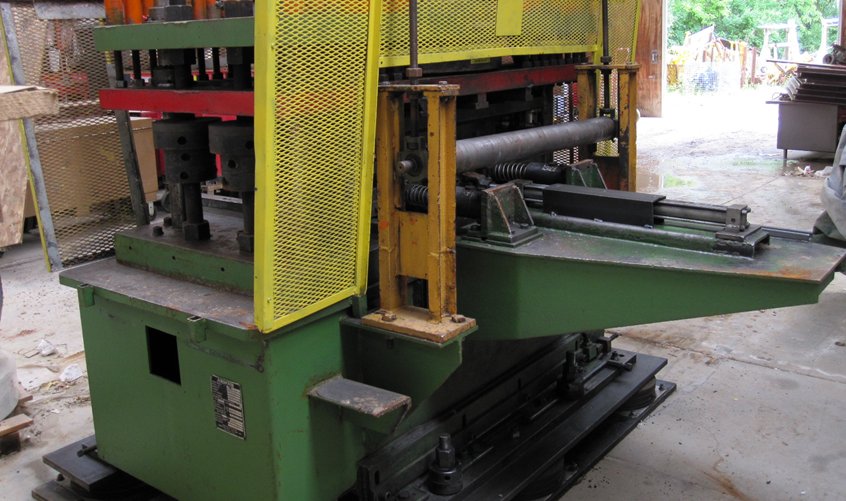

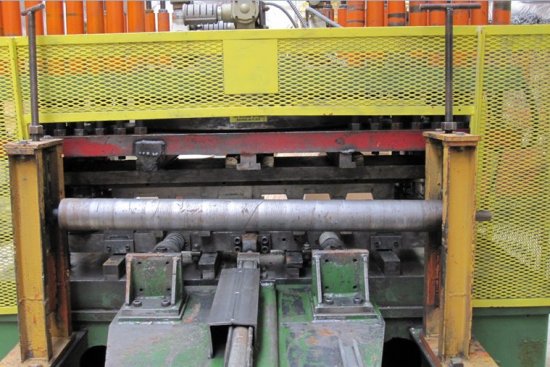

MODEL 4P-70
70 TON CAPACITY
0-3" STROKE
0-12" SHUT HEIGHT
12" ADJUSTMENT
64" X 32" BED AREA
48" X 32" OPEN DIE AREA
35-38" FROM FLOOR TO TOP OF BOTTOM RAIL

RAIL POSITIONS:
TOP RAIL - 26.000
BOTTOM RAIL - 13.000

DISTANCE BETWEEN BUSHINGS:
F.TOB. - 0"
L.TOB. - 16"

APPROX O.A. DIMENSIONS: 82" X 95" X 84"H

IN PLANT UNDER POWER
