Specifications
Equipped With
PRELIMINARY SPECIFICATIONS

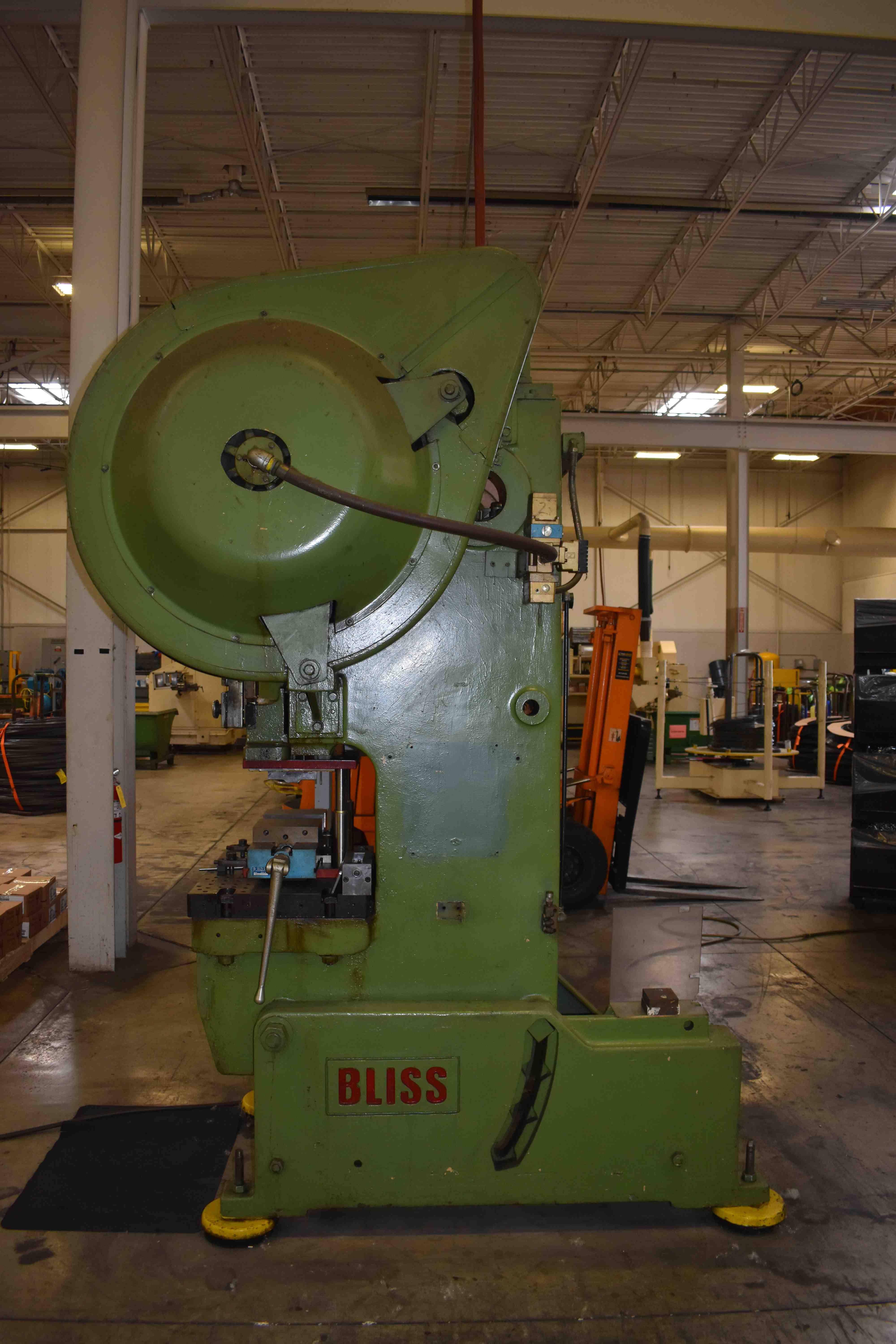

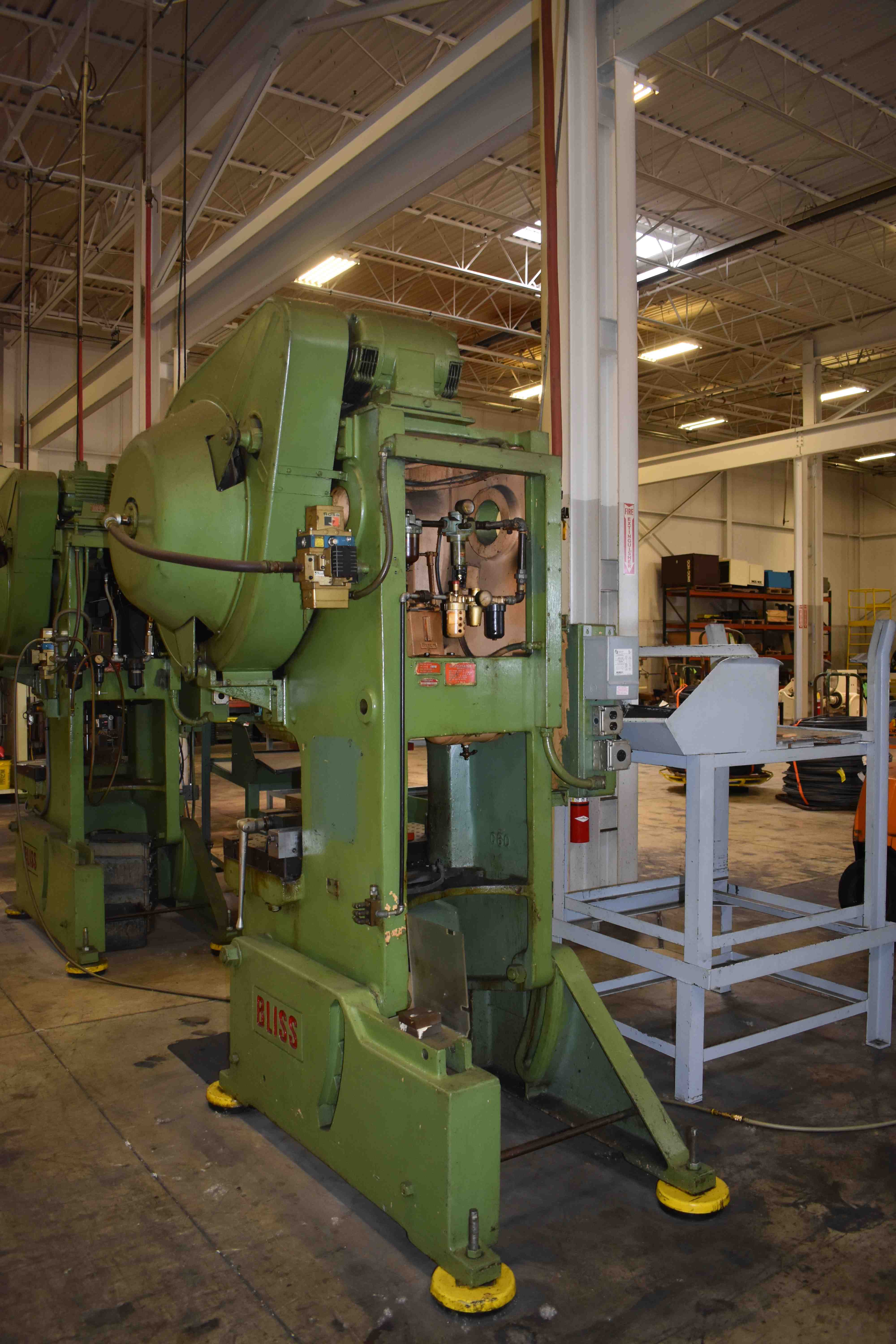

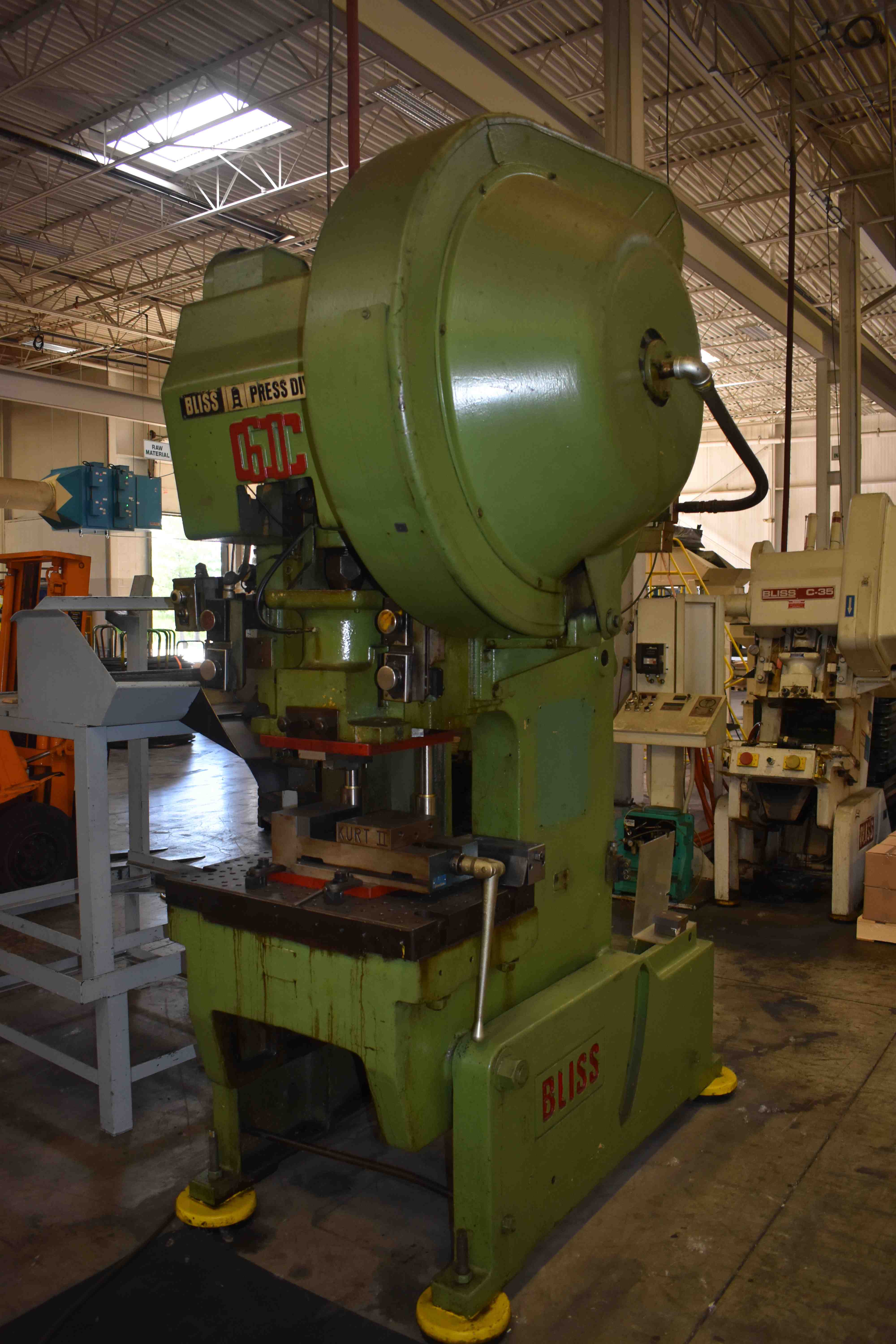

BLISS OBI FLYWHEEL PRESS
MODEL C-60
60 TON CAPACITY
4" STROKE
14.25" SHUT HEIGHT (S.D.A.U.) TO PRESS BED
3" ADJUSTMENT
32" LR X 21" FB BED AREA
17" LR X 12" FB SLIDE AREA
11" THROAT DEPTH
100 SPM
EQUIPPED WITH
MOTOR & ELECTRICS
OPERATOR PALM BUTTONS
INCH, SINGLE, & CONTINUOUS OPERATION
LEVEL INSULATOR PADS
30 DEG. MAX. INCLINE
APPROX. DIMENSIONS 60" LR X 85" FB X 115" H
ESTIMATED WEIGHT 12,000 LBS
Available Immediately, Available for Inspection, well maintained!
See Video of Press Cycling on link in quote!
Specifications Subject To Verification; Subject To Prior Sale and Price Change
We encourage your personal inspection of this machine, available immediately!
