PRELIMINARY SPECIFICATIONS

FISHER DYNAMICS
60 TON & 40 TON 4 POST UP ACTING HYDRAULIC PRESSES

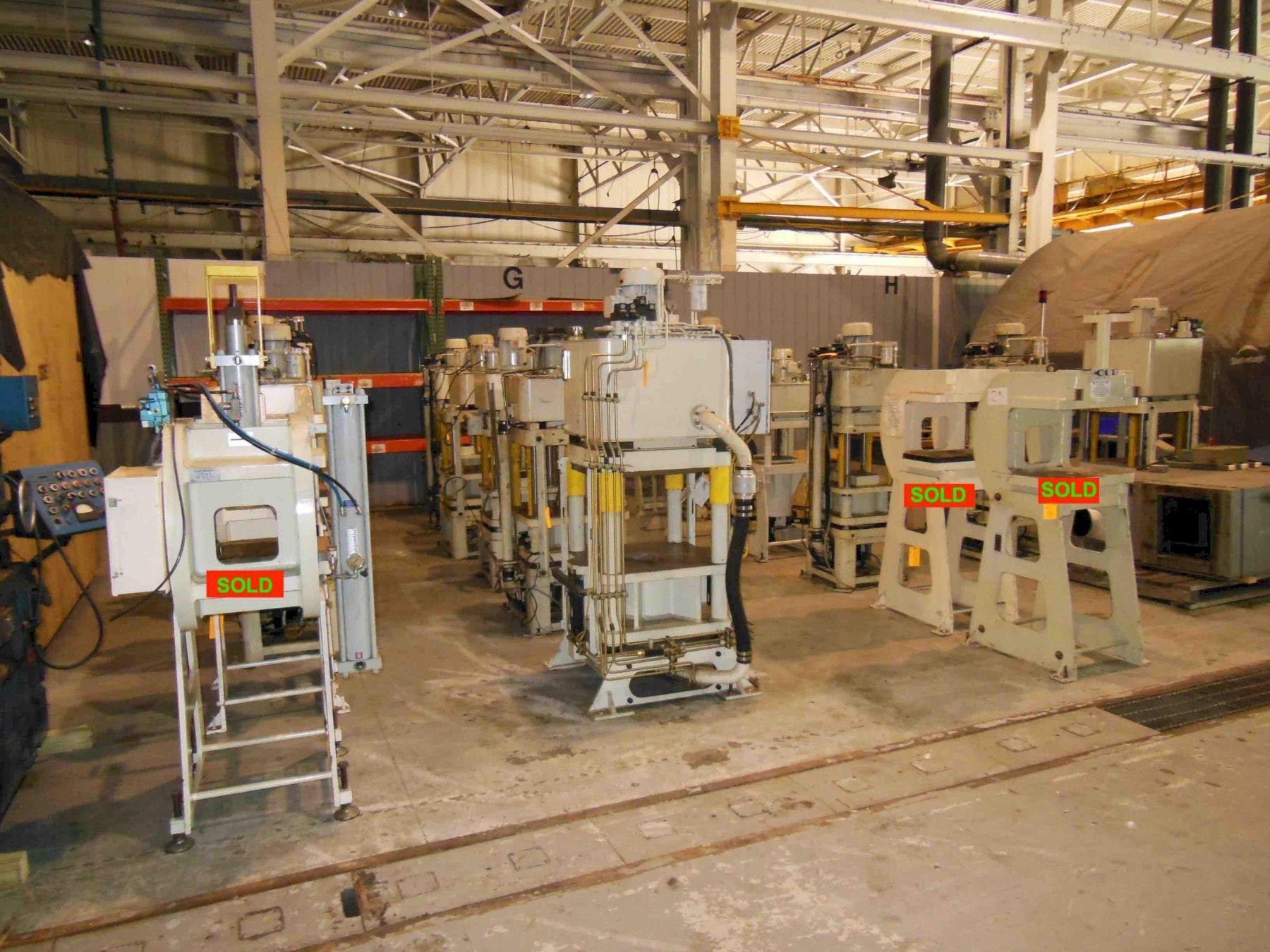

(14) 4 POST HYDRAULIC PRESSES

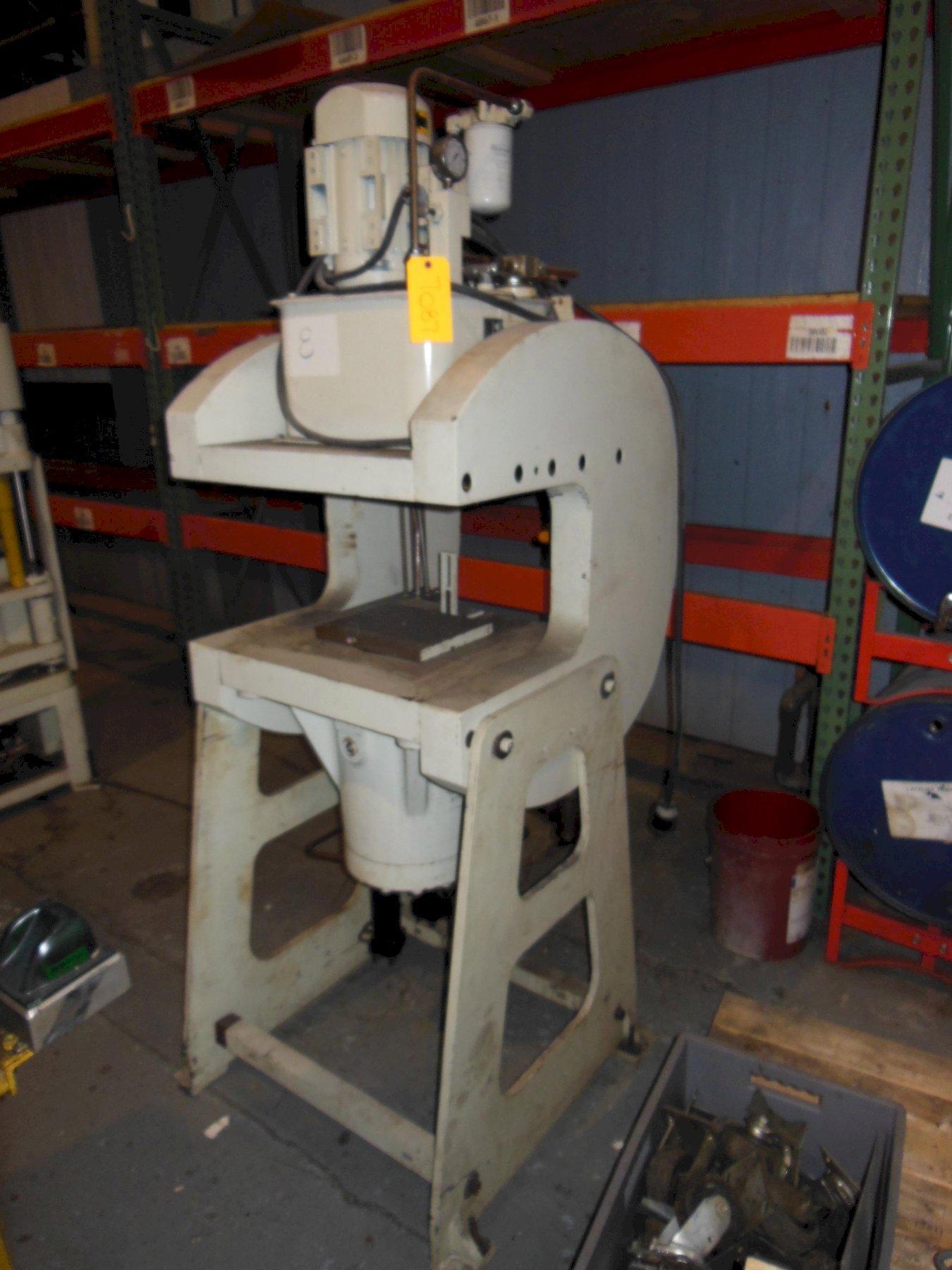

(2) C-FRAME HYDRAULIC PRESSES
(3) C-FRAME STANDS

MANUAL SPECIFICATIONS FOR 60 TON HYDRAULIC PRESS

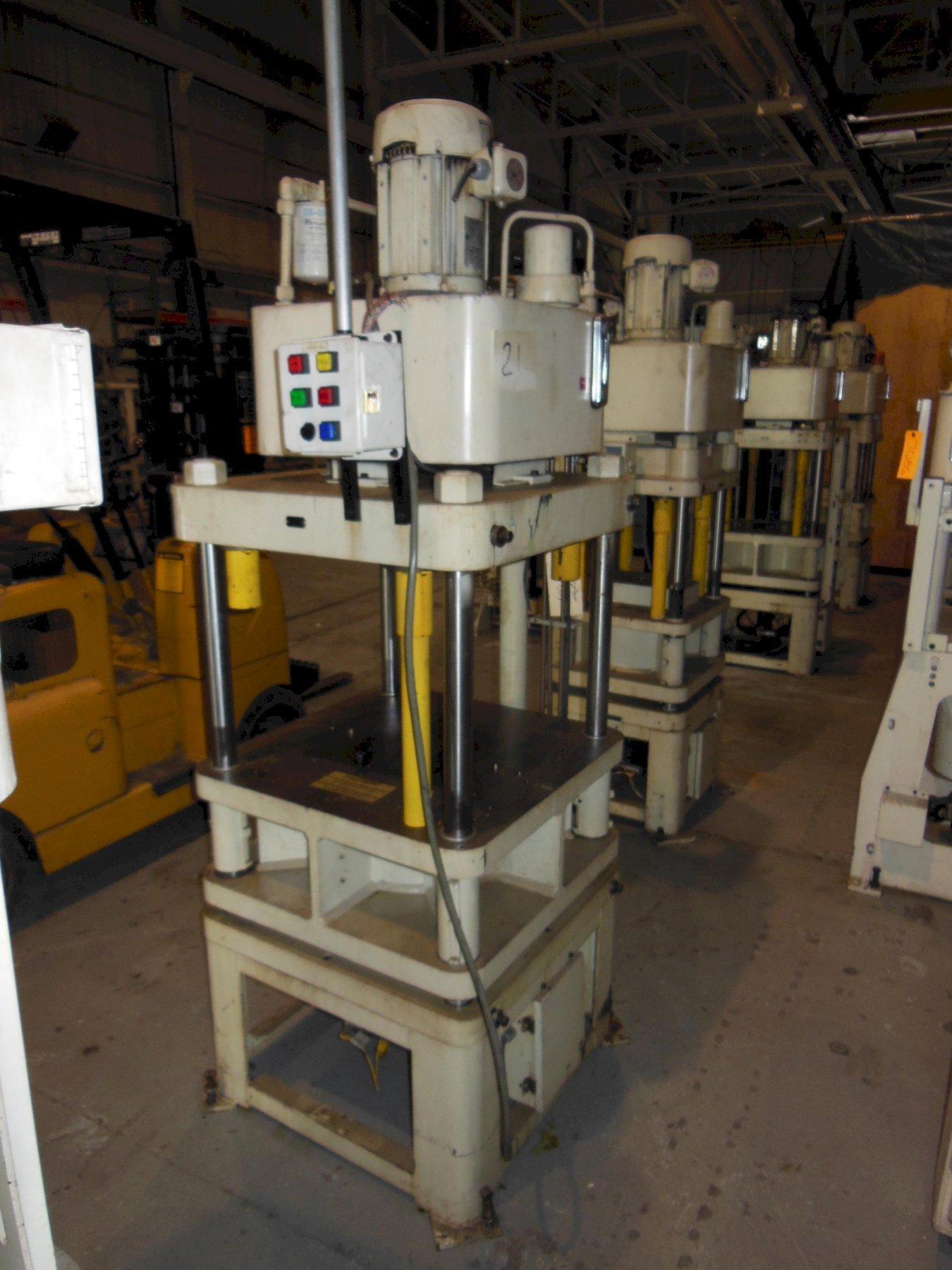

FISHER DYNAMICS UP ACTING 4 POST HYDRAULIC PRESS
MODEL AJF-7

60 TON CAPACITY
7" STROKE
19.75" X 19.75" WORK BED & RAM AREA

APPROX. CYCLE TIME (AT 7" STROKE) 10 SEC.

EQUIPPED WITH
MOTOR 5 HP, 230/460/3/60
HYDRAULIC TANK

OVERALL DIMENSIONS APPROX. 40" FB X 40" LR X 96" H
APPROX. WEIGHT 4700 LBS

**PRESSES REQUIRE NEW ELECTRICAL & CONTROLS
AVAILABLE AS A LOT OR INDIVIDUAL SALE

Specifications Subject To Verification; Subject To Prior Sale & Price Change
