PRELIMINARY SPECIFICATIONS

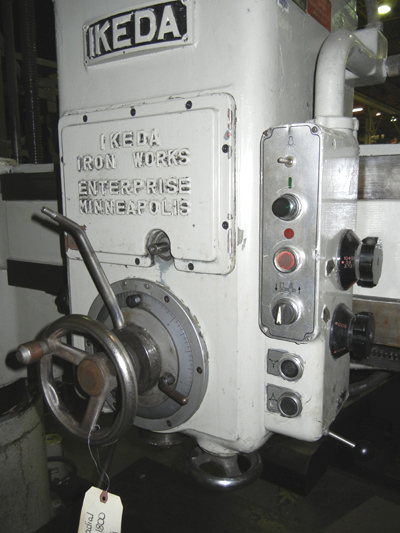

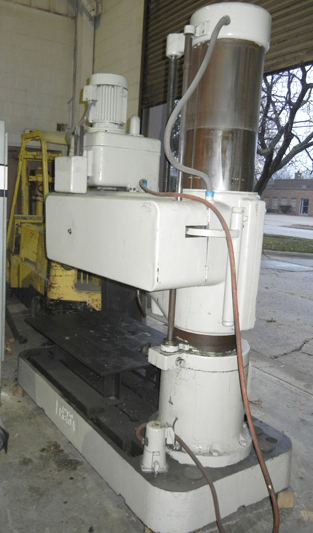

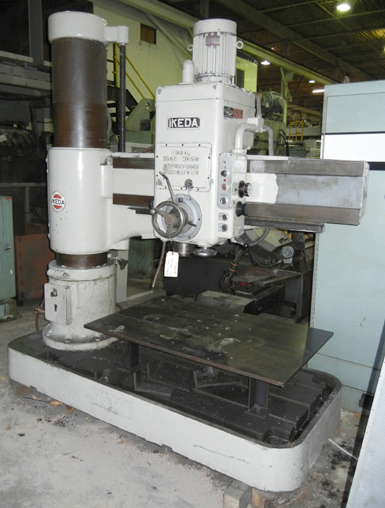

IKEDA RADIAL ARM DRILL
MODEL RM1300
YEAR 1978

13-5/8" COLUMN DIAMETER
54-1/2" ARM LENGTH
9" MIN. - 52-5/8" MAX. FACE OF COLUMN TO CENTER OR SPINDLE
15-1/4" MIN. - 56-3/4" MAX. SPINDLE TO BASE
57-1/4" X 36" WORKING SURFACE OF BASE
8-1/2" HEIGHT OF BASE
12" VERTICAL TRAVEL OF SPINDLE IN HEAD
3-5/8" SPINDLE DIAMETER (DRIVING DIA.)
#5 MORSE TAPER IN SPINDLE
47" TRAVERSE OF HEAD ON ARM
(4) 0.004" - 0.021" REV FEED & TAP LEADS
(12) 30 - 1,440 RPM SPINDLE SPEEDS
5 HP DRIVE MOTOR

EQUIPPED WITH
POWER ELEVATION
POWER CLAMPING
COOLANT

CAPACITY
2-1/4" STEEL & 2-5/8" IRON DRILLING
1-3/4" STEEL & 2" IRON TAPPING
4" STEEL & 6" IRON BORING

APPROXIMATE DIMENSIONS
82" X 36" X 96"
APPROX. WEIGHT 7,700 LBS (LESS MOTOR)

WELL MAINTAINED BY SMALL FAB SHOP
AVAILABLE FOR IMMEDIATE DELIVERY
AVAILABLE FOR INSPECTION!!
