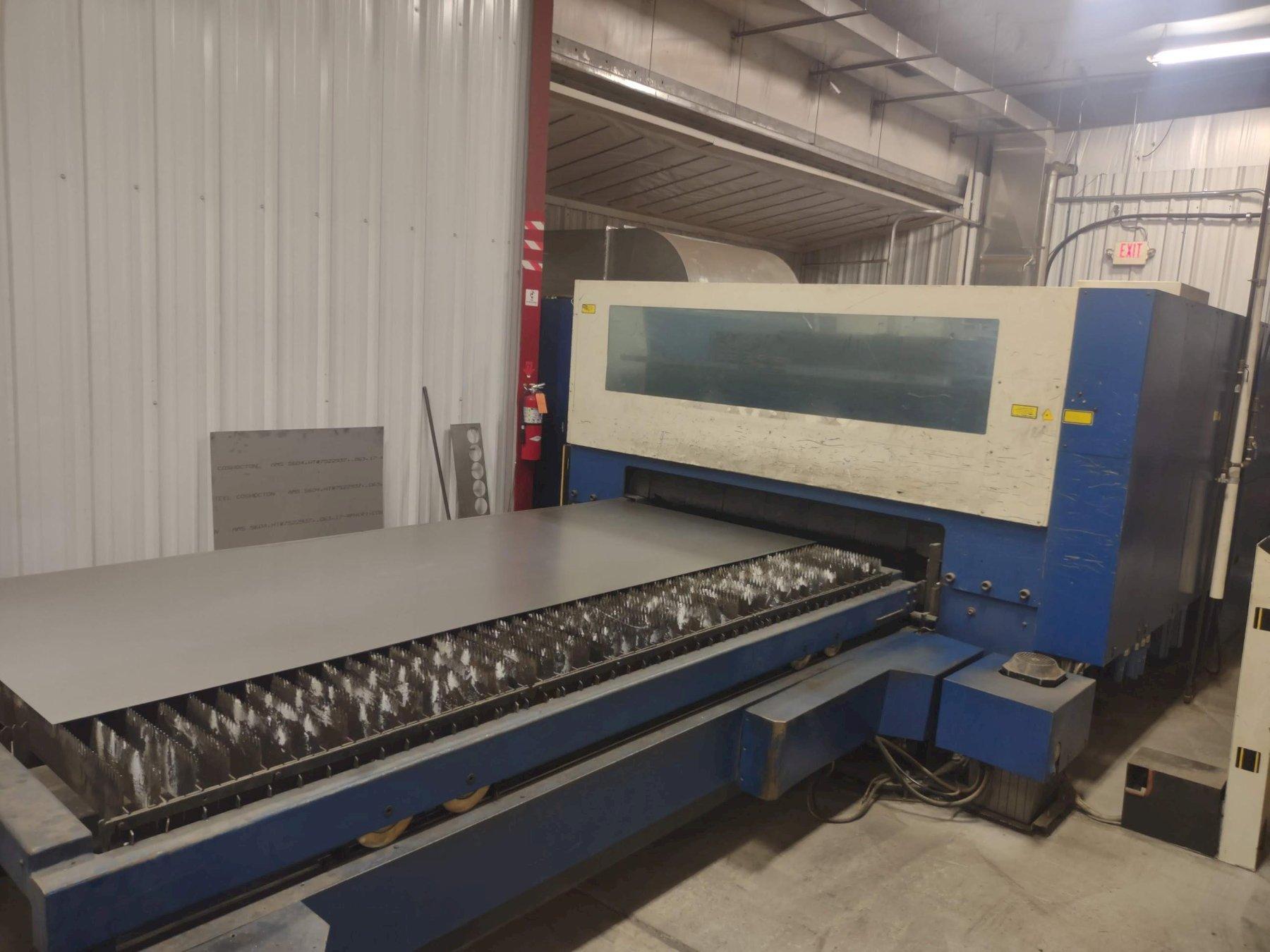

Trumpf TC L 3030 TLF Co2 Laser
Year 2006
4000 Watt

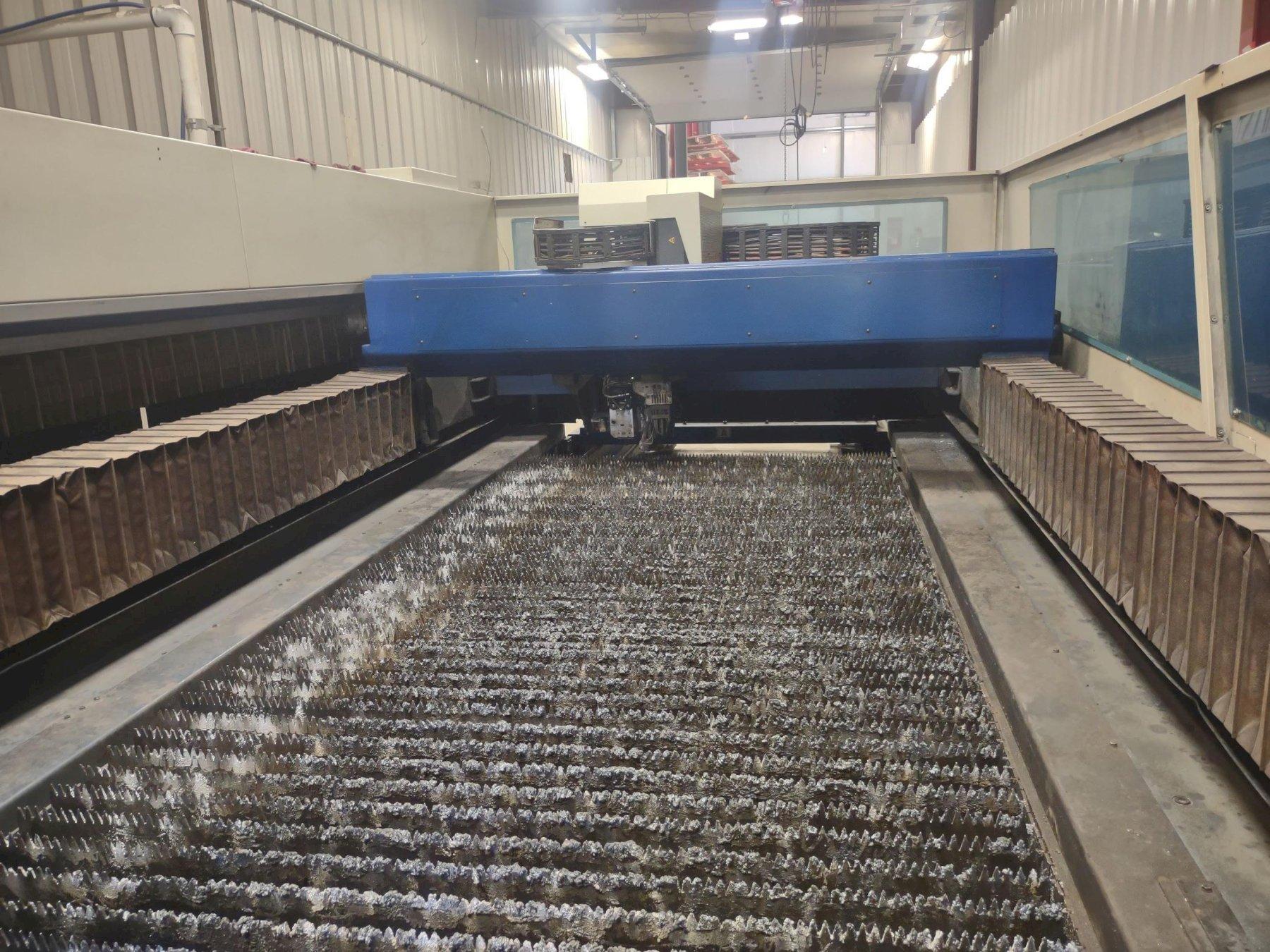

60"x120" Table Size
Automatic Pallet Shuttle System

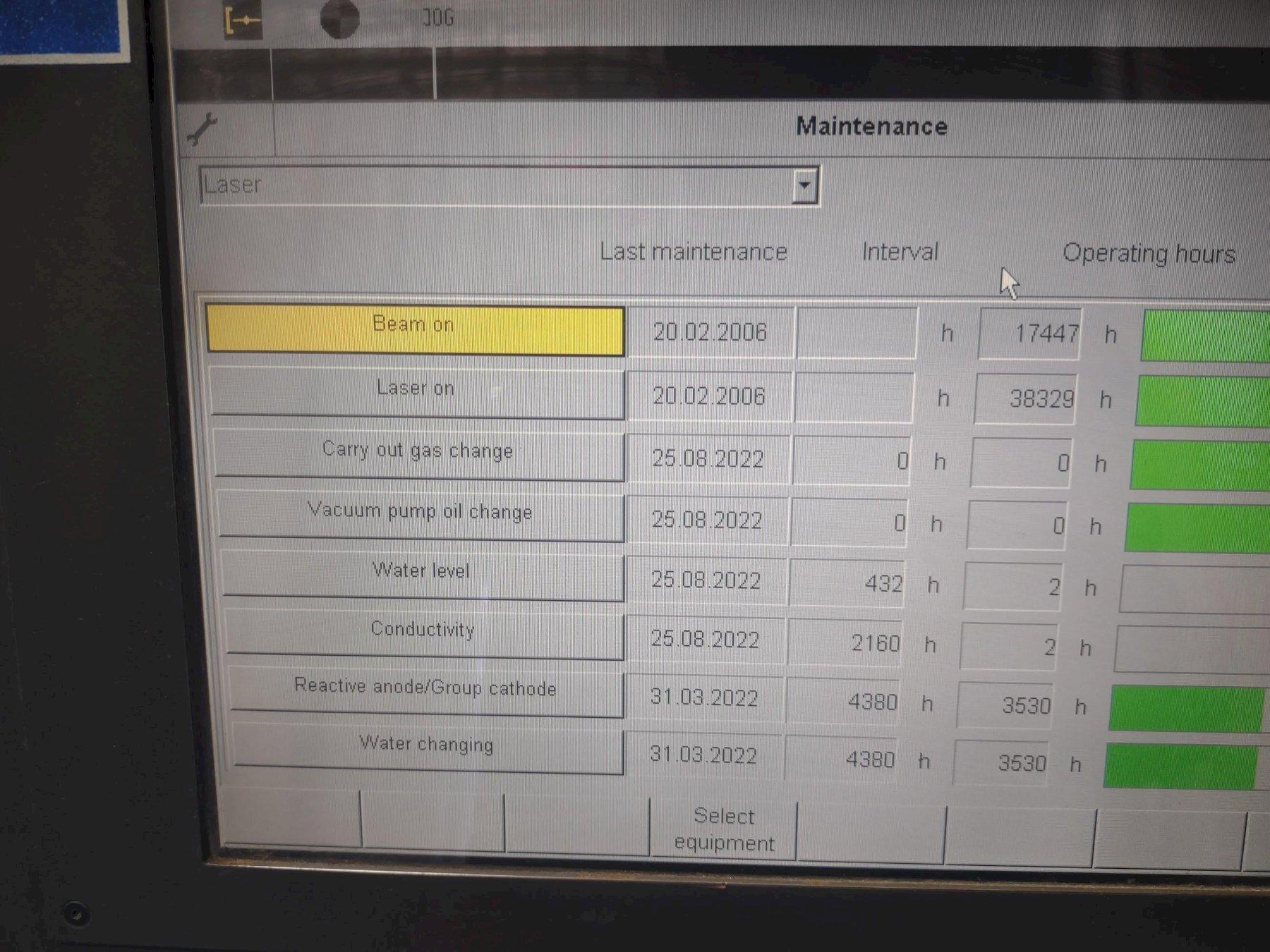

Hours
38,329 Laser On Hours
17,447 Beam On Hours
Technical Catalog Specifications
Average Positional Spread +/- 0.001"
Laser Output 4000W
Max Material Thickness 0.787"
X-Axis Max Travel 122.20"
Y-Axis Max Travel 62.20"
Z-Axis Max Travel 4.80"
X-Axis Working Range 118.11"
Y-Axis Working Range 59.06"
Z-Axis Working Range 4.53"
X-Axis Overshoot Range -0.630" to 3.465"
Y-Axis Overshoot Range -0.748" to 2.401"
Z-Axis Overshoot Range -0.079" to 0.630"
Positioning Accuracy +/- 0.004"
Smallest Programmable Increment 0.0004"
Dimensions (L x W x H) 385.82" x 208.66" x 78.74"
Approx. Total Weight w/ TLF Laser 25,300LBS
Equipped With
TRUMPF CNC Control Based On SEIMENS SINUMERIK 840D

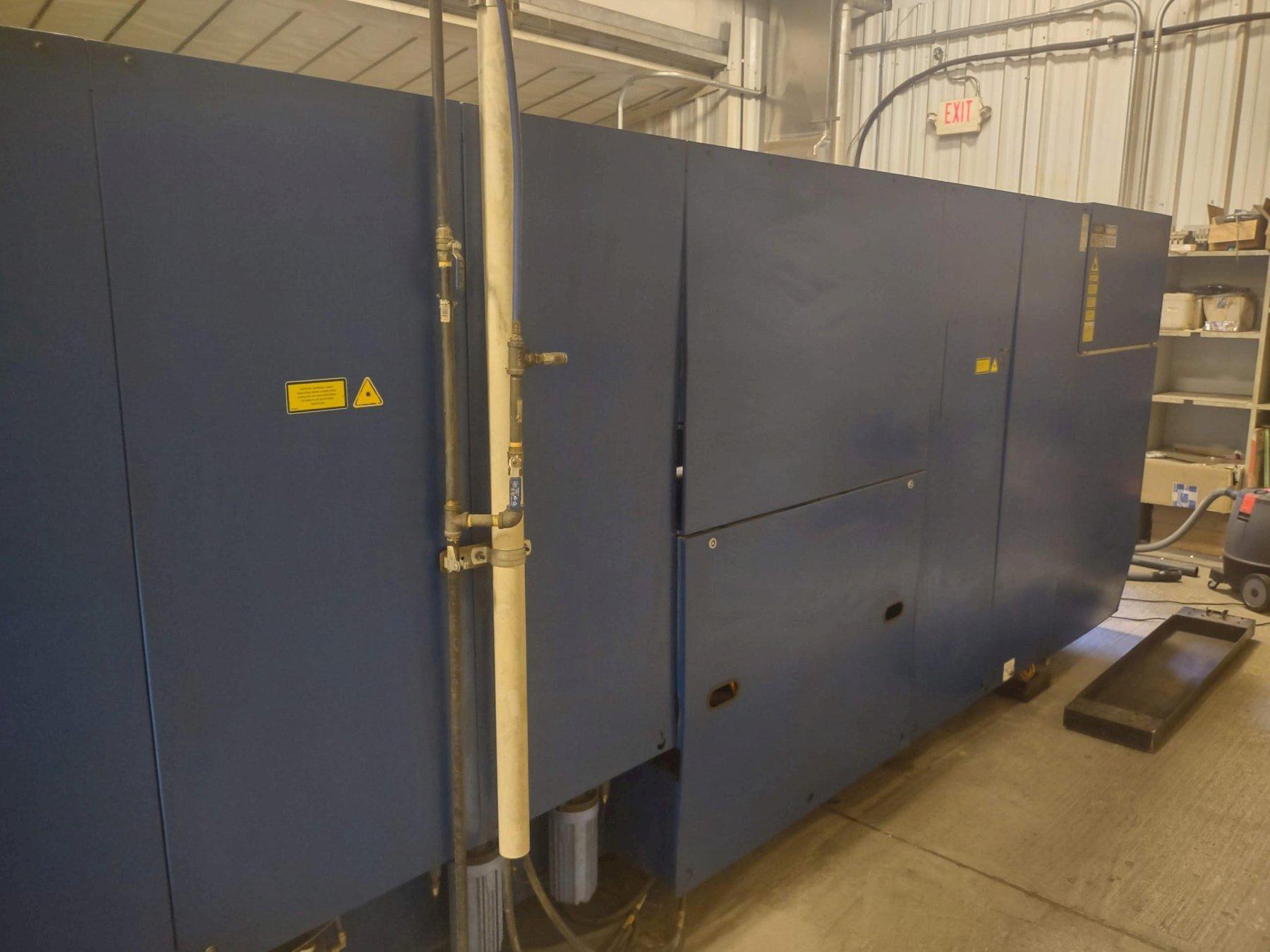

4000 Watt Resonator
Trumpf Liftmaster Automatic Pallet Shuttle System
In plant, available immediately, plant maintenance record since 2012
Specifications Subject To Verification; Subject To Prior Sale and Price Change
