PRELIMINARY SPECIFICATIONS

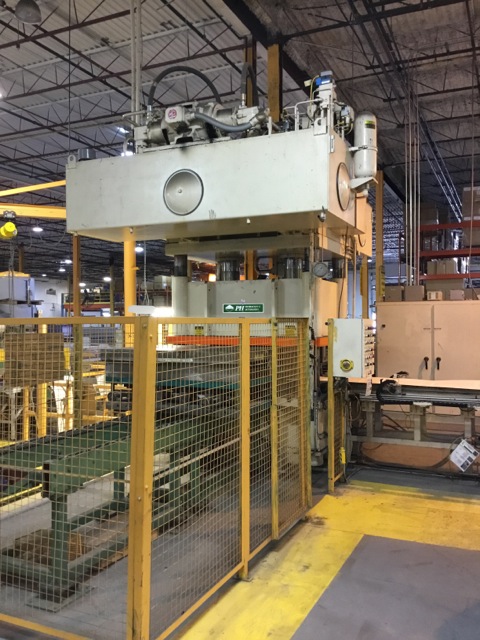

PH HYDRAULICS 4 POST PRESS
MODEL HD2-4P-300-40
400 TON CAPACITY
300 TON PUNCHING CAPACITY
12" STROKE
33" DAY LIGHT OPENING
21" SHUT HEIGHT
81" LR X 60" FB BED AREA
64" LR X 40" FB DISTANCE BETWEEN POST
SPEEDS
340 IPM RAPID ADVANCE
180 IPM PRESSING
352 IPM RAPID RETURN
EQUIPPED WITH
2 POINT SUSPENSION, SELF CONTAINED SINGLE ACTION DOWN ACTING

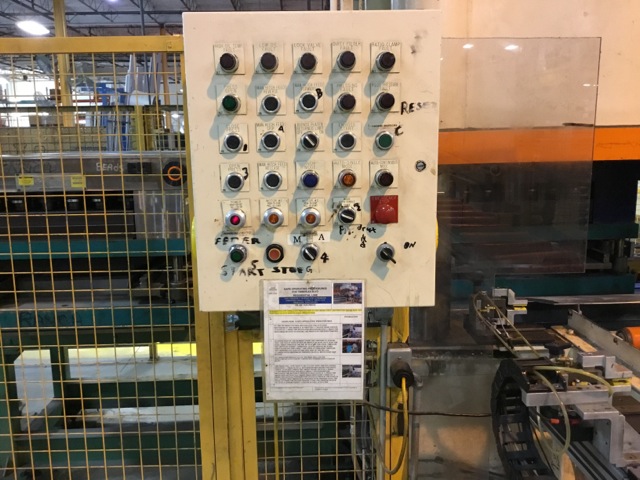

ST. LAWRENCE HYDRAULICS & ELECTRICALLY

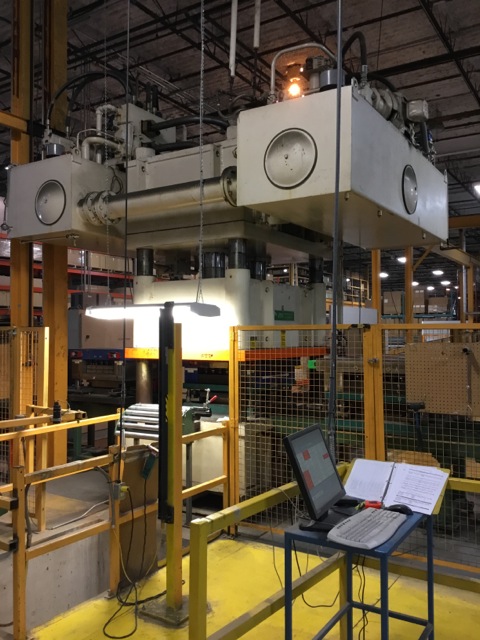

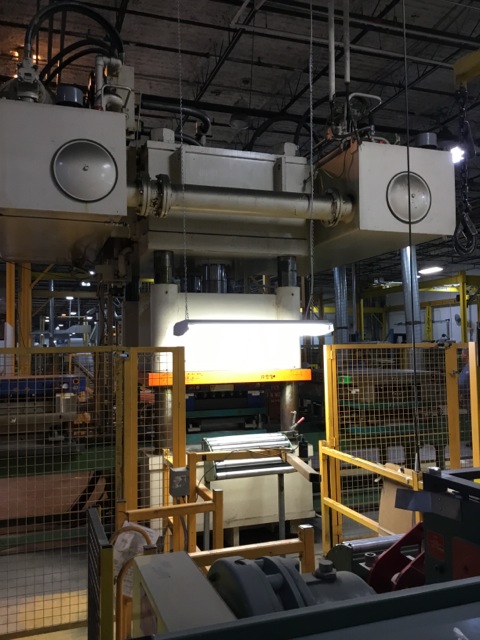

SELF CONTAINED PRESS MOUNTED HYDRAULICS (TOP MOUNTED)
800 GALLON CAPACITY (2 - 400 GALLON)
125 HP O.D.P. / 1200 RPM / 230-460 VOLT
VICKERS FIXED VANE PUMPS # 4525V38A5 / 38 GPM
PLATEN LATCHES
UPPER PLATEN EQUIPPED WITH AUTOMATICALLY OPERATED SPRING ENGAGE, HYDRAULIC DISENGAGED LATCHES TO MECHANICALLY HOLD PLATEN AT ANY POSITION OF THE WORK STROKE, LATCHES ARE INTERLOCKED ELECTRICALLY
APPROX. O.A. DIMENSIONS 70" LR X 89" FB X 170" H
APPROX. WEIGHT 63,000 LBS
AVAILABLE FOR INSPECTION, PRESS IS DISASSEMBLE, AVAILABLE IMMEDIATELY
Specifications Subject To Verification; Subject To Prior Sale
