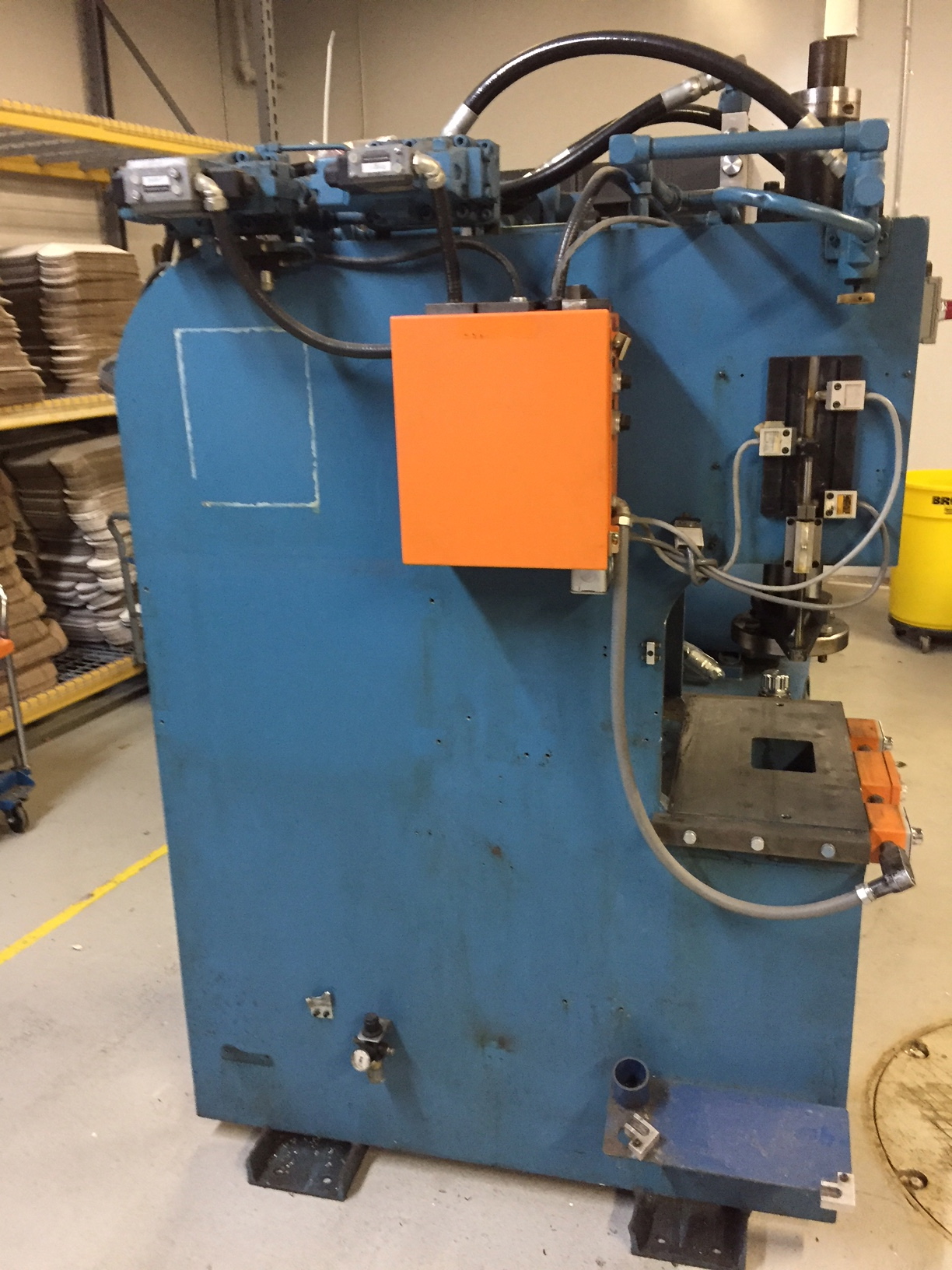

40 TON NEFF C-FRAME DOWN ACTING HYDRAULIC PRESS, 6" STR, 12" DLO, 8" THROAT, 22.5" LR X 12.5" FB BA, OPEN BACK FRAME, 1987

Brand
NEFF

Model
C-FRAME

Stock #
7229

Condition
Good

Year
1987

Specifications

Equipped With

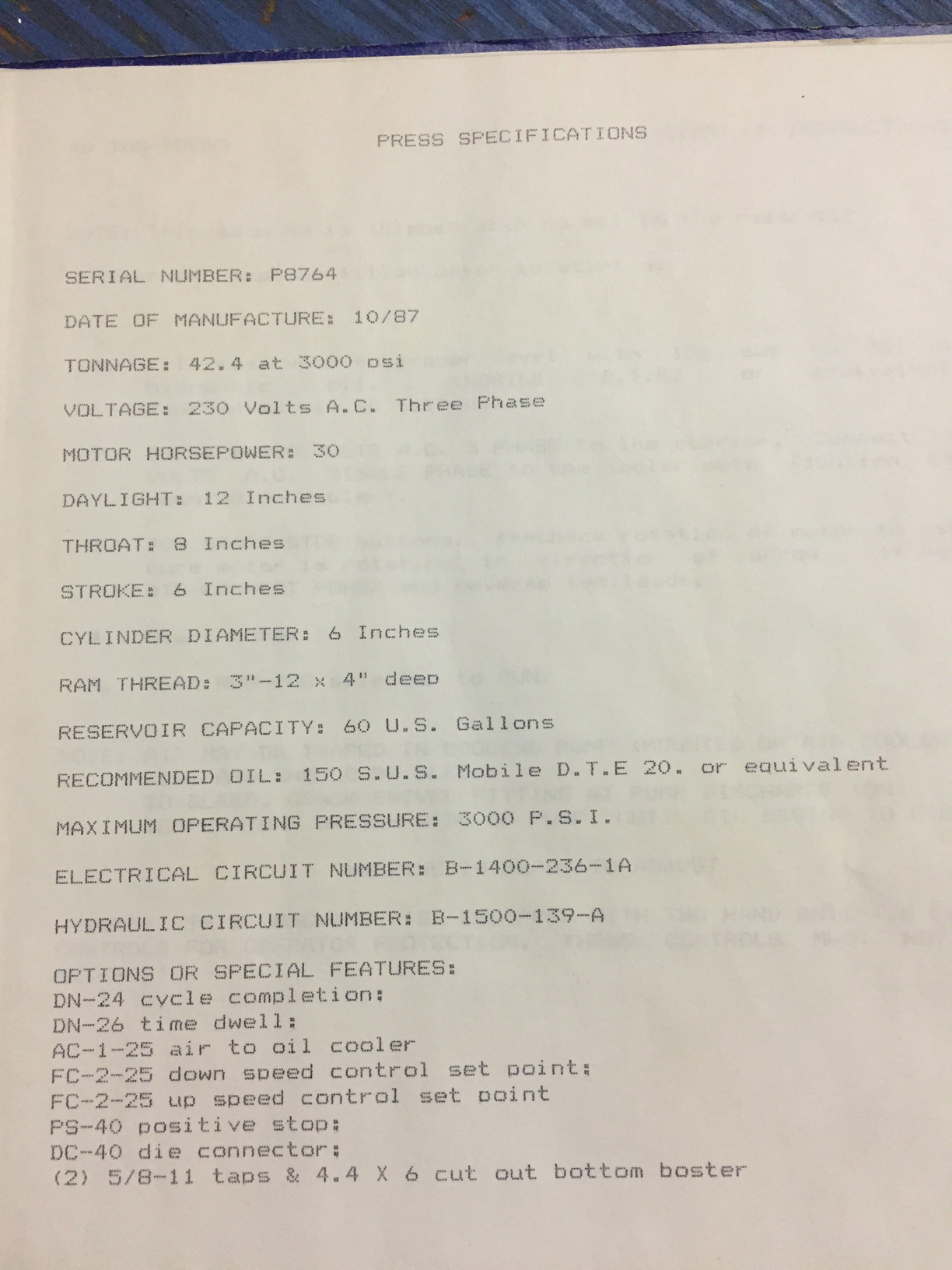

PRELIMINARY SPECIFICATIONS

NEFF C-FRAME HYDRAULIC DOWN ACTING PRESS
OPEN BACK FRAME
YEAR 1987

40 TON CAPACITY
6" STROKE
12" DAYLIGHT
8" THROAT
22.5" LR X 12.5" FB BED AREA
4.40" X 6" CUT OUT BOTTOM BOLSTER

EQUIPPED WITH

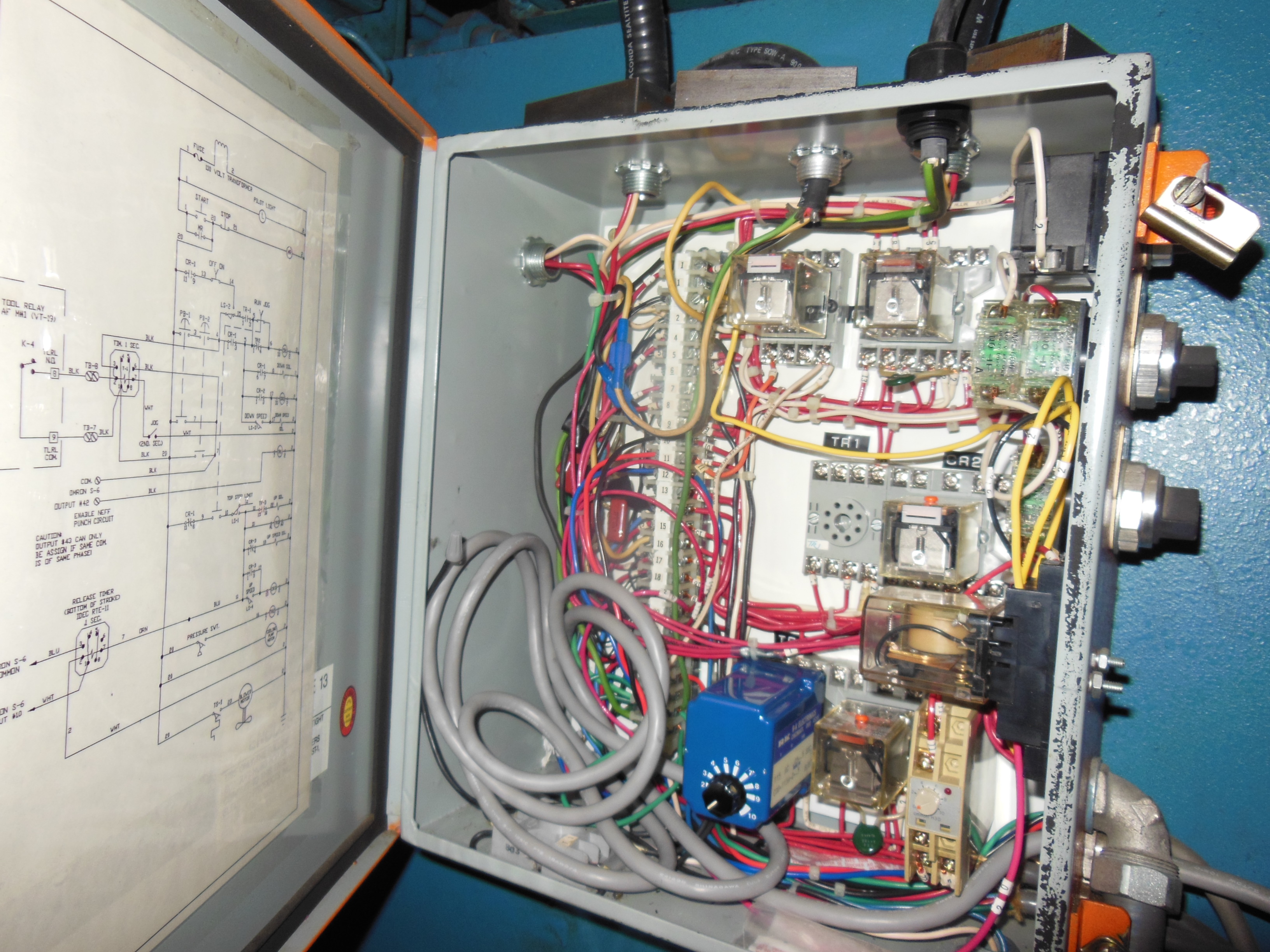

MOTOR, ELECTRICS, & HYDRAULIC PACKAGE
OPERATOR PALM CONTROLS
42.4 TONNAGE @ 3000 PSI MAX. PRESSURE
6" DIA. CYLINDER
3"-12 X 4" DEEP RAM THREAD
30 HP MOTOR
60 GALLON RESERVOIR CAPACITY
OIL COOLER BY AIR
230 V, 3 PH

DIMENSIONS
PRESS APPROX. 44" W X 56" L X 84" H, EST. WEIGHT 3,000 LBS

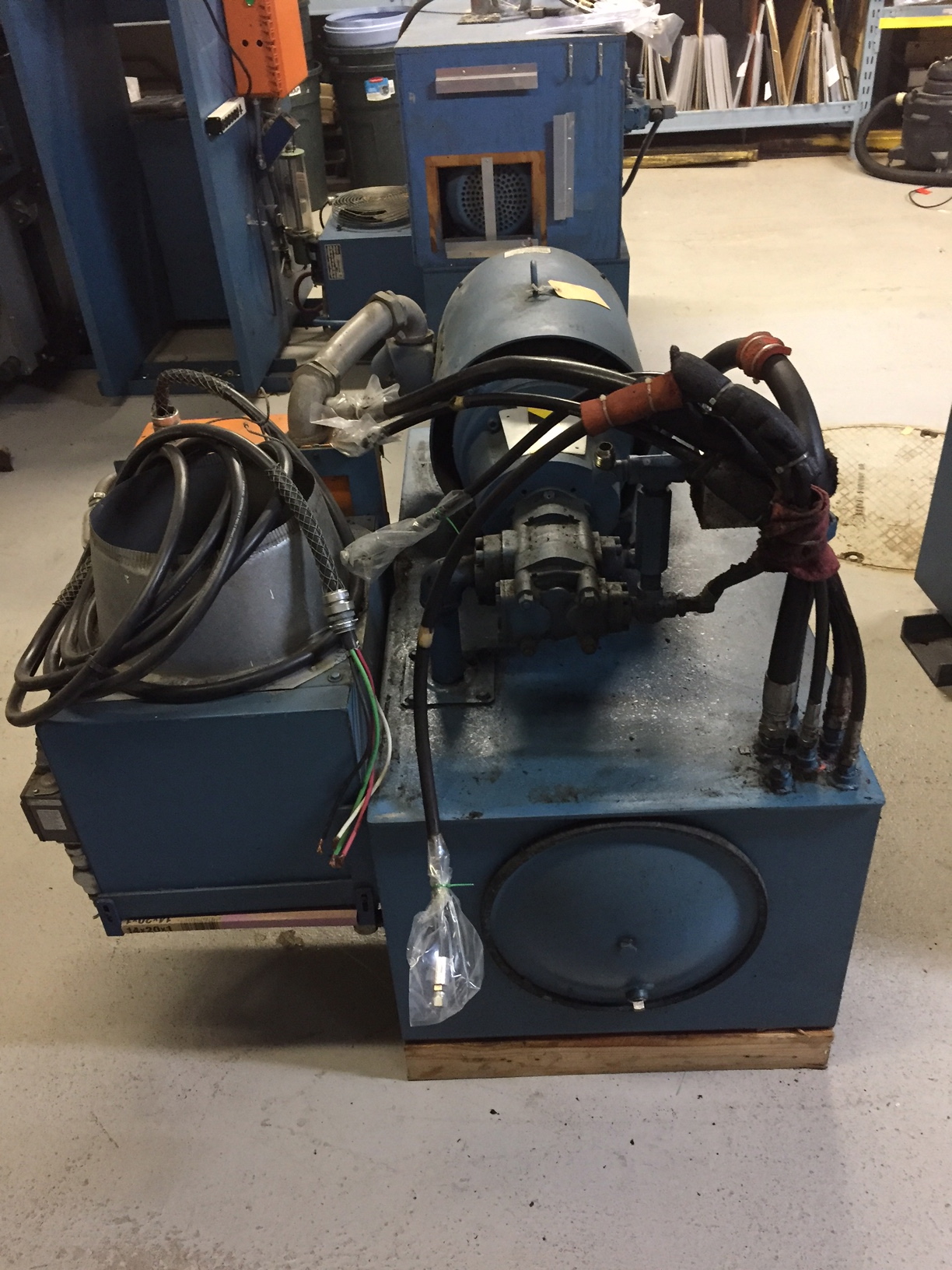

HYDRAULIC UNIT APPROX. 50" W X 50" L X 46" H, EST. WEIGHT 1,000 LBS

WELL MAINTAINED, AVAILABLE FOR INSPECTION & IMMEDIATE DELIVERY, ALSO AVAILABLE 10 TON, 25 TON, & 40 TON NEFF HYD. PRESSES, CALL!!!

Specifications Subject To Verification; Subject To Prior Sale and Price Change
We encourage your personal inspection of this machine, available immediately!
