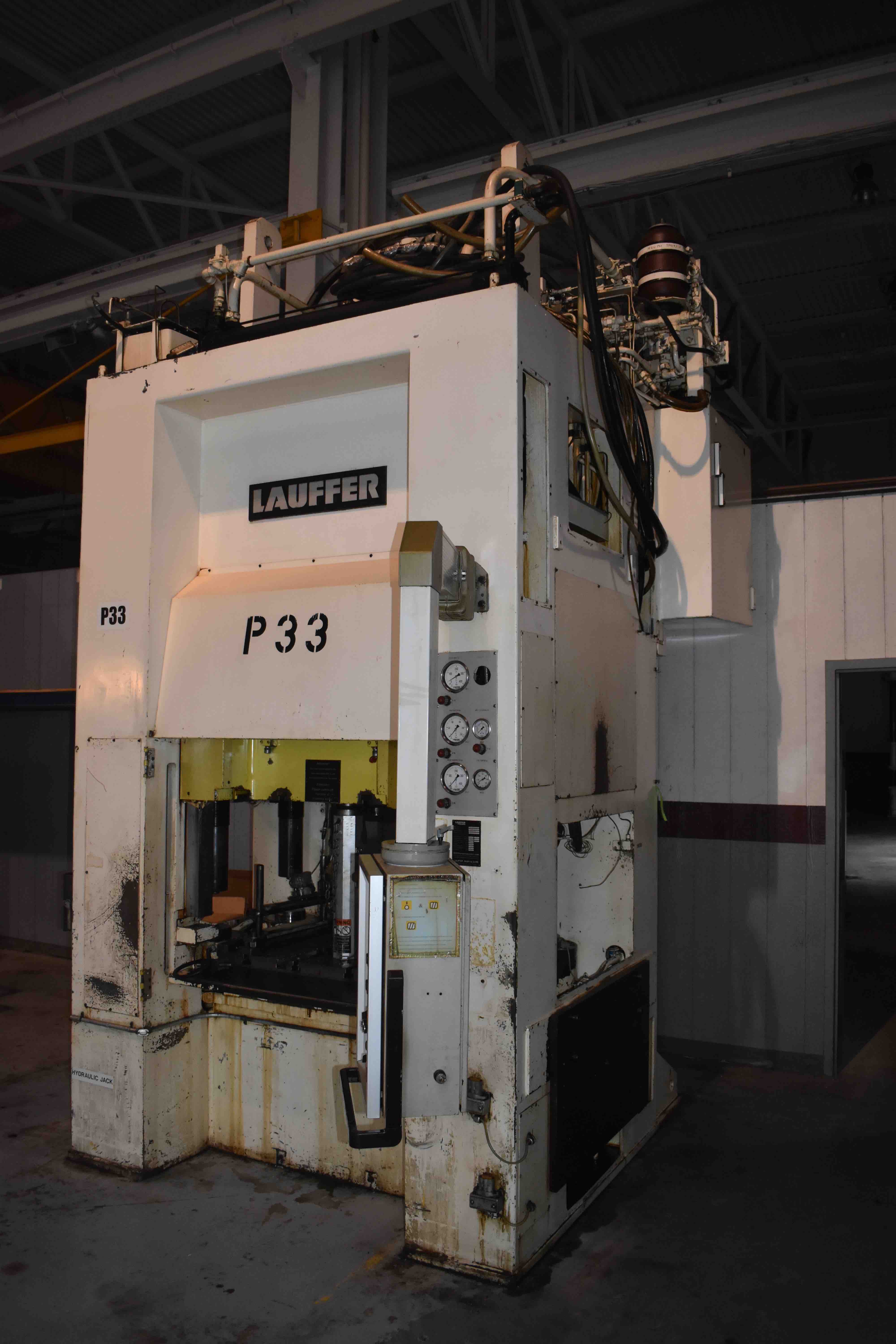

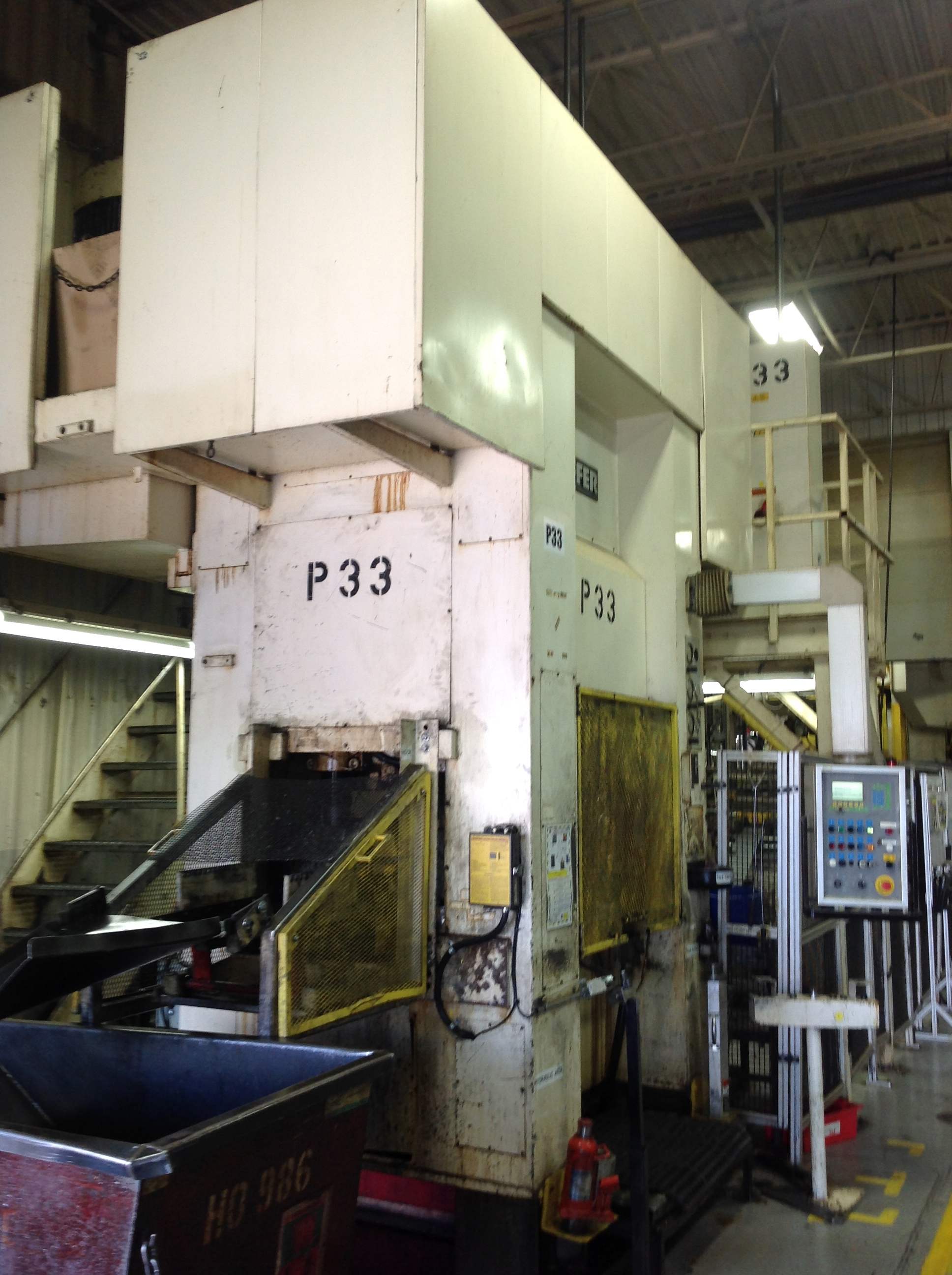

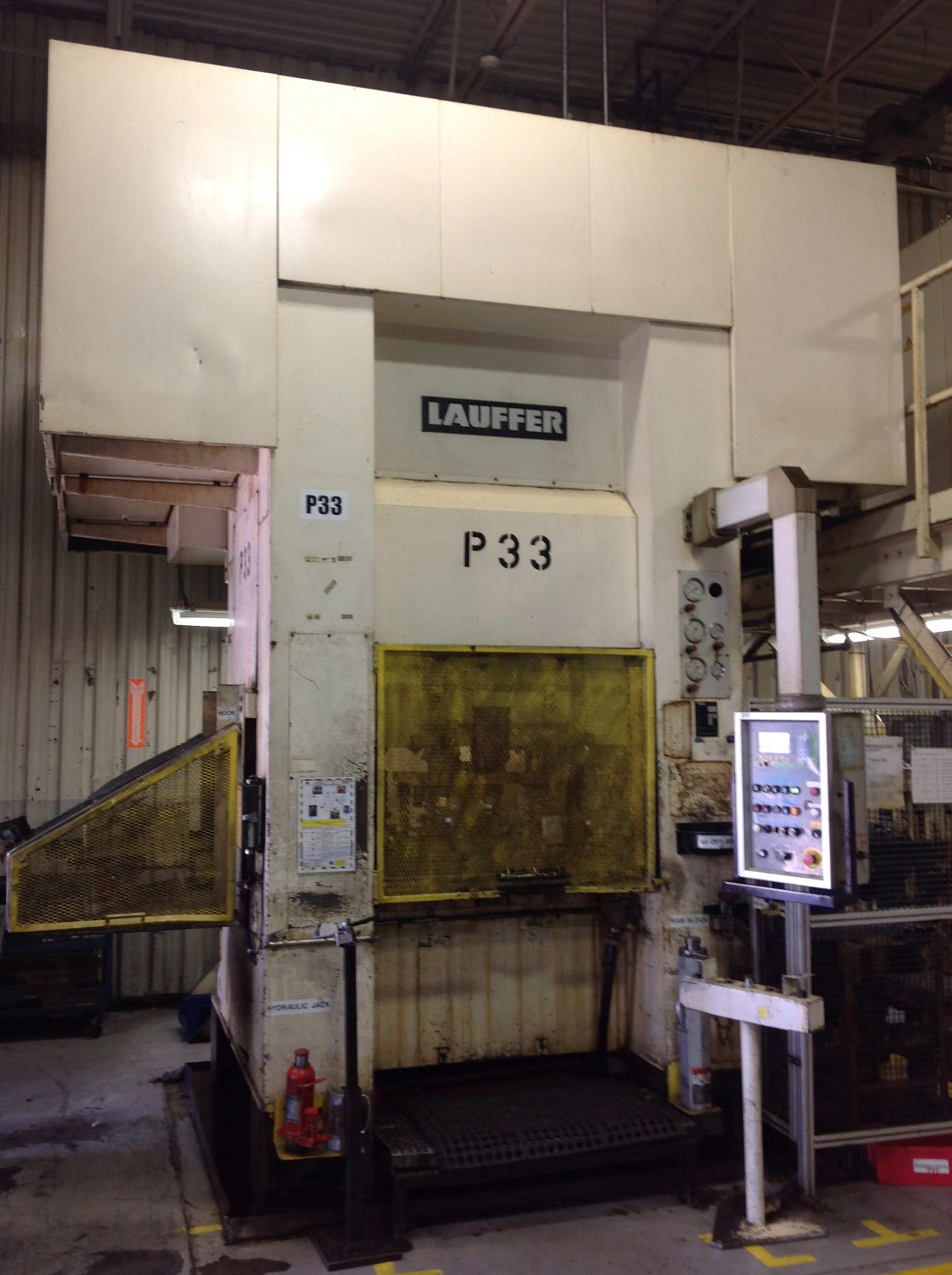

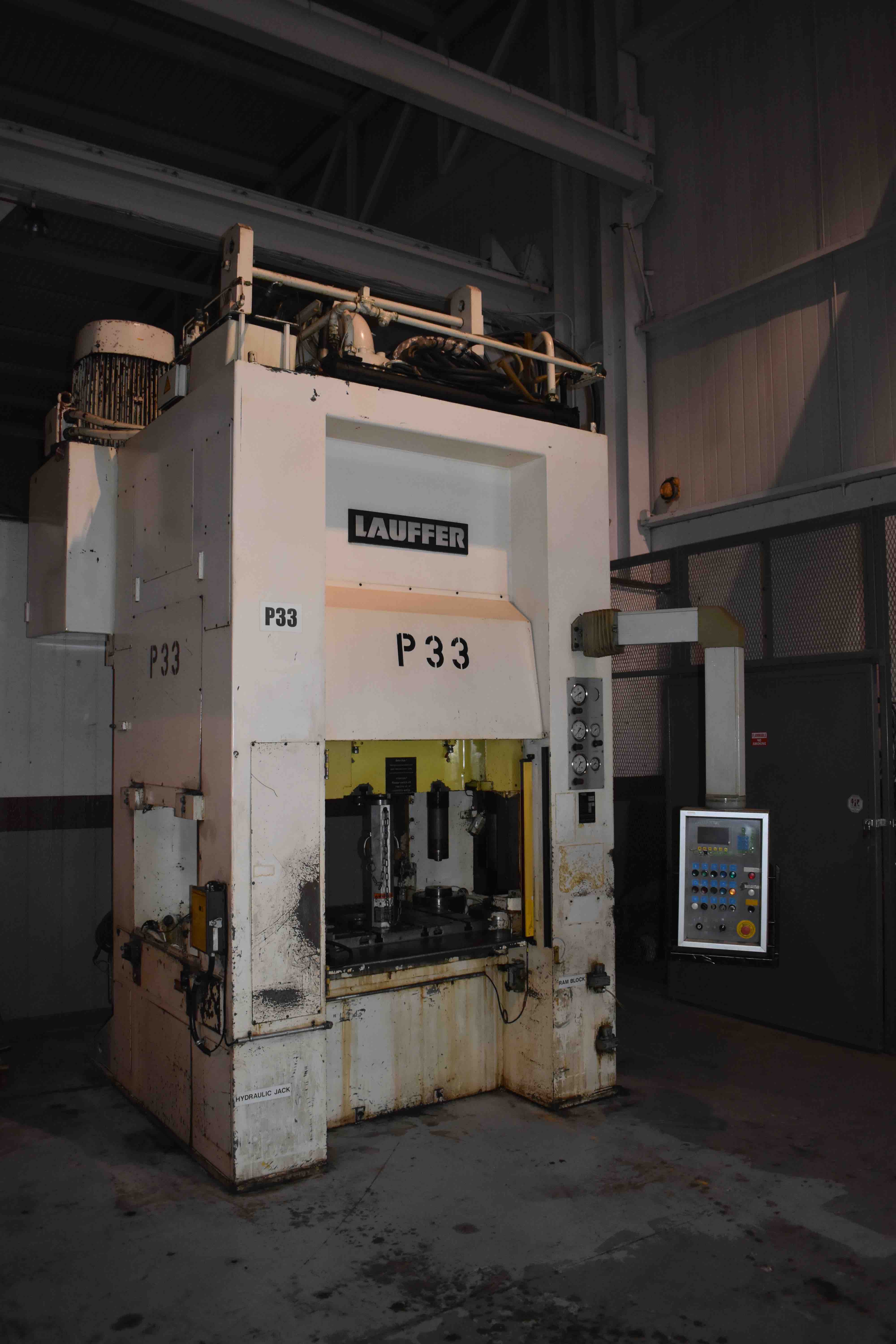

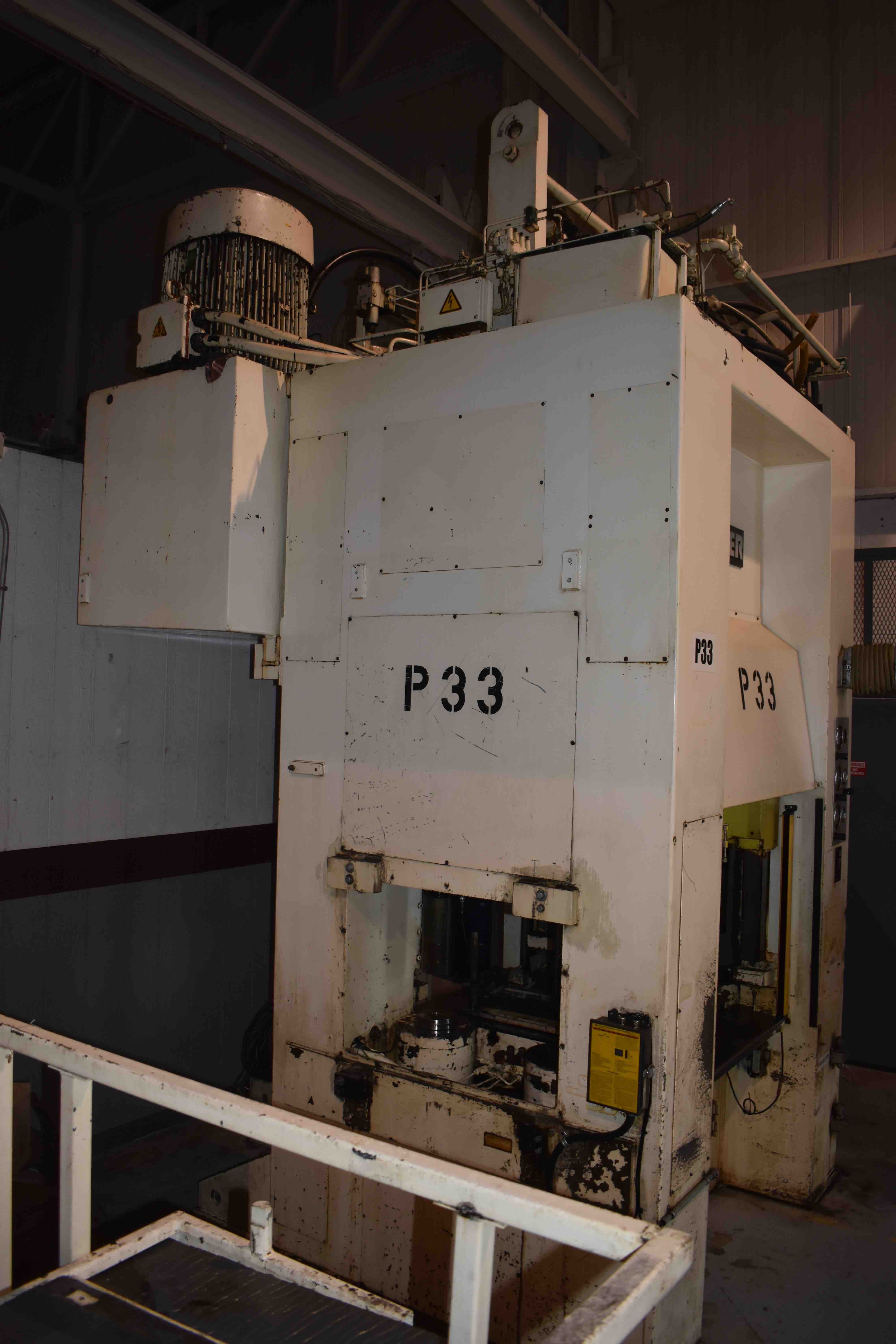

PRELIMINARY SPECIFICATIONSLAUFFER STRAIGHT SIDE HYDRAULIC PRESS

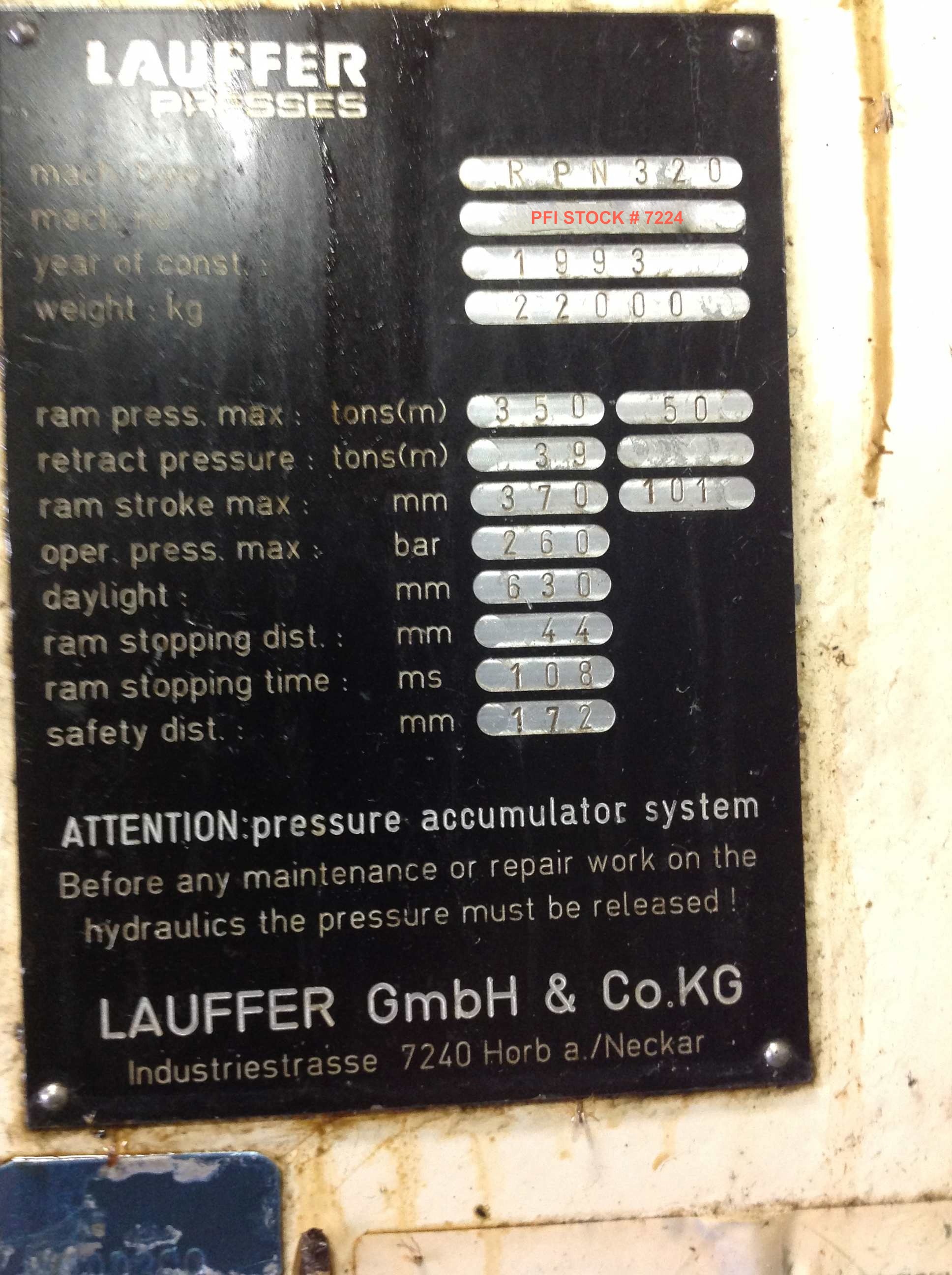

MODEL: RPN 320
YEAR: 1993
FLOOR STANDING
320 TONS (M) CAPACITY
39 TONS (M) RETRACTING PRESSURE
14.5" STROKE (370 mm)
24.8" DAYLIGHT (630 mm)
1.73" RAM STOPPING DISTANCE

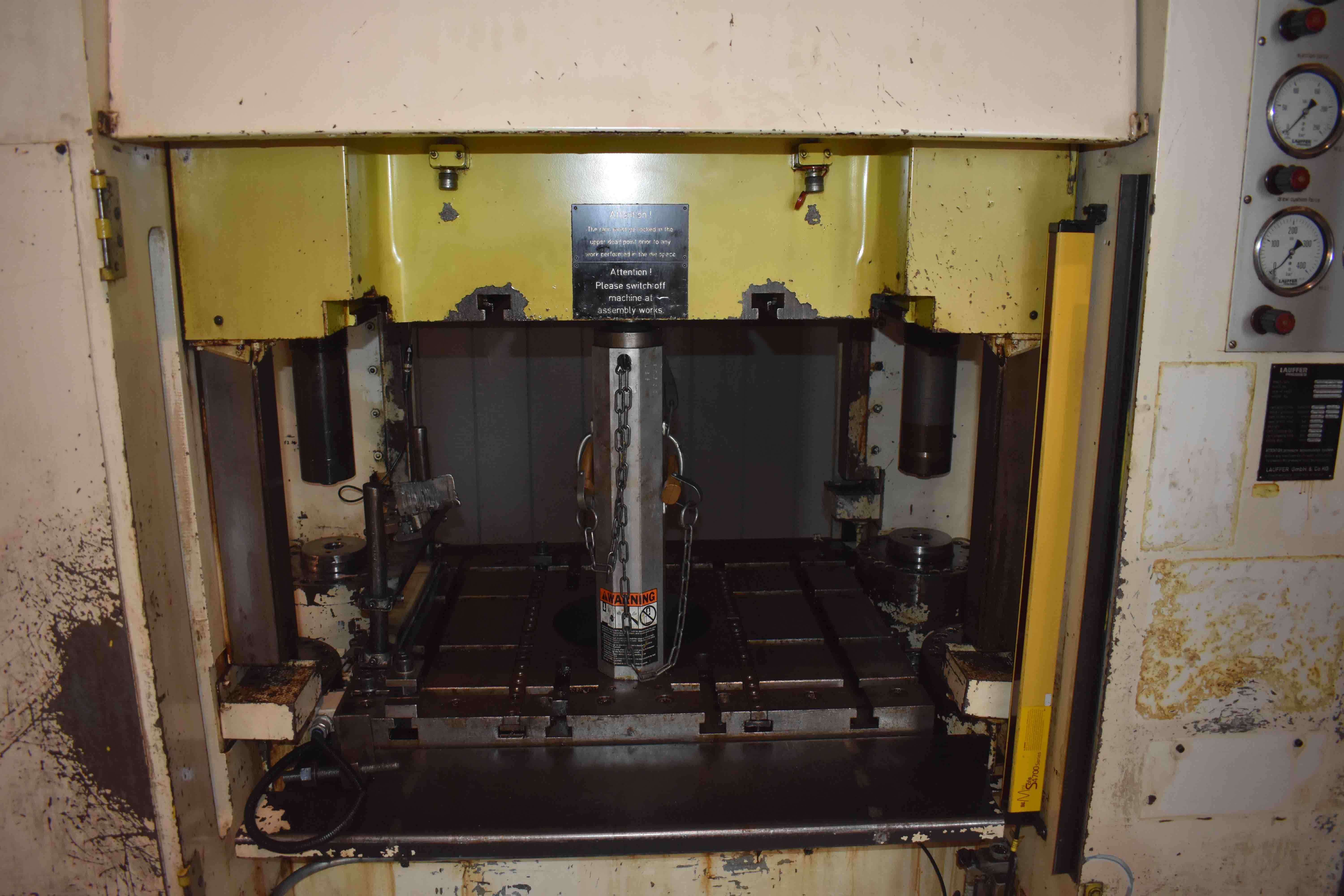

39.50" LR x 31.50" FB BED AREA
33" WIDE WINDOWS
260 BAR MAX. OPERATING PRESSURE
SPEEDS
940 inch/min FAST ADVANCE (400 mm/s)
90 inch/min PRESS (38 mm/s)
800 inch/min RETURN (338 mm/s)
EQUIPPED WITHPRESS CONTROL PANEL
OPERATOR T-STAND
WINDOWS
APPROX. DIMENSIONS PER DRWGS
APPROX. O.A. AREA 144"LR X 120" FB X 168" H
APPROX. FOOTPRINT AT BASE 81" LR X 78" FB
FLOOR TO TOP OF PRESS 168" H

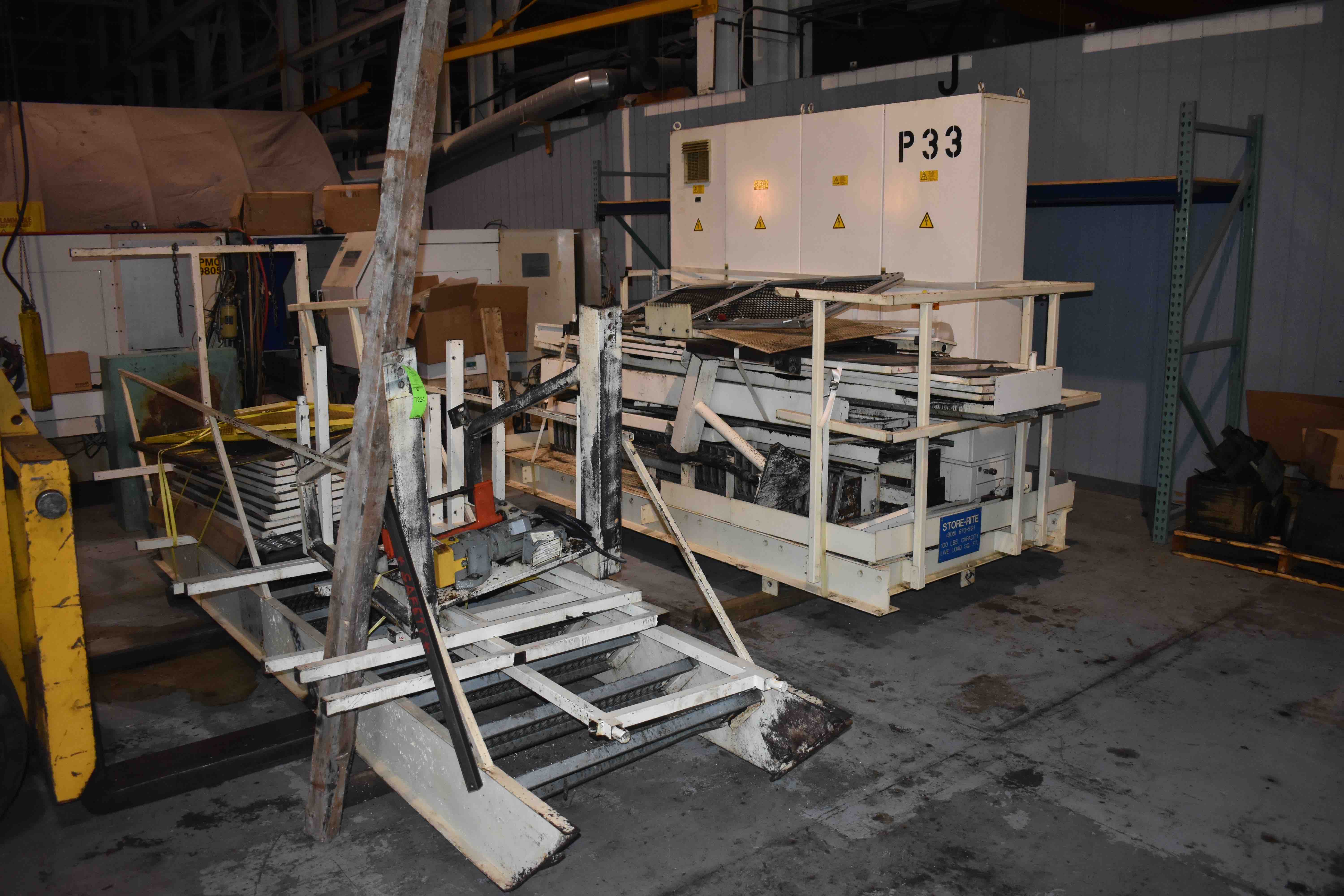

Plant had Electrical Panel on Balcony (Balcony Included)
Press has been Cleaned, Available for Inspection, Available Immediately!!
Specifications Subject To Verification; Subject To Prior Sale and Price Change
We encourage your personal inspection of this machine, available immediately!
