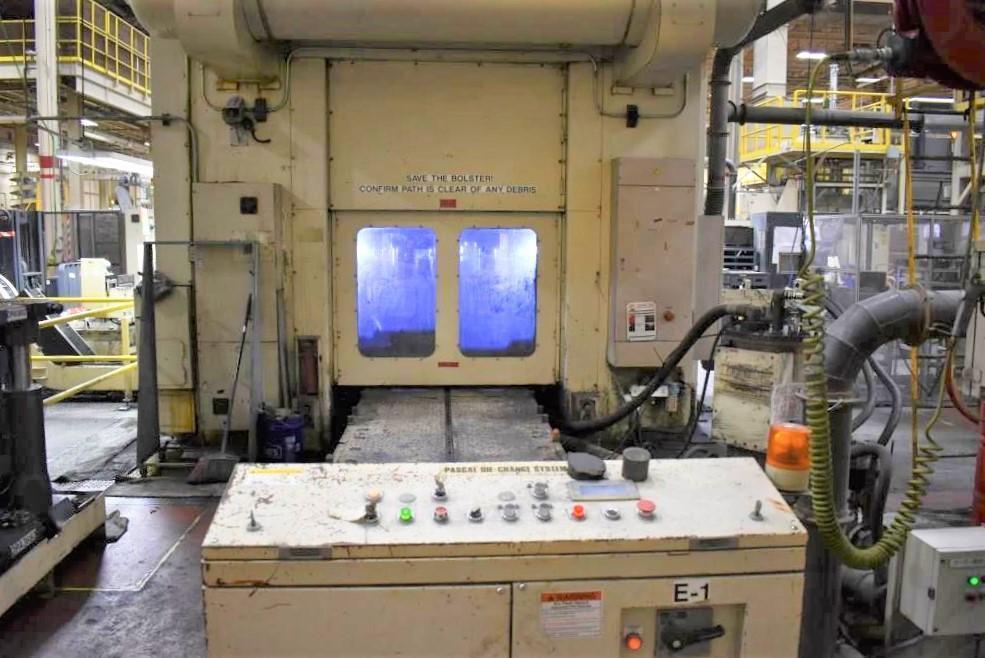

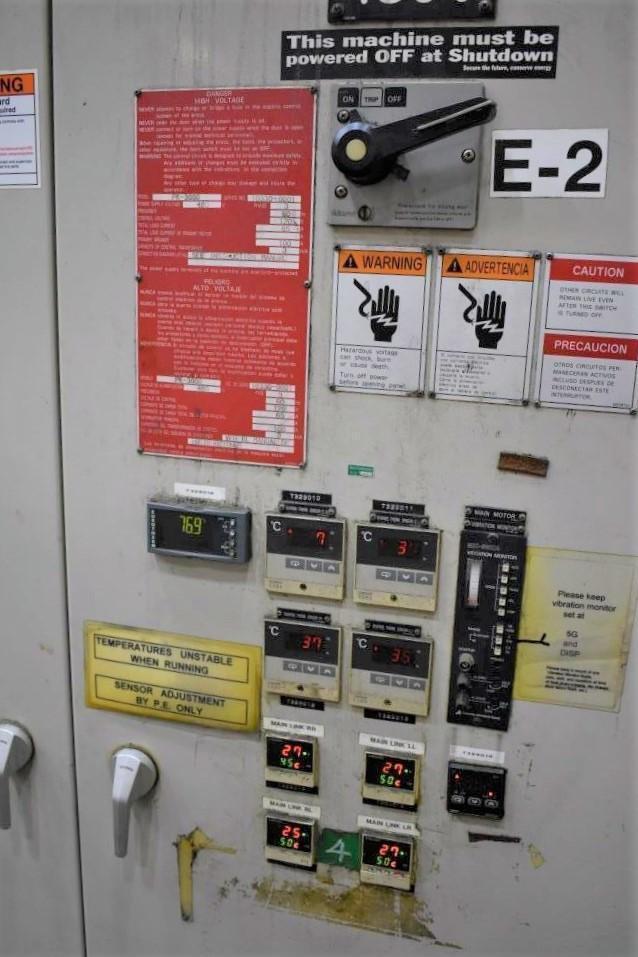

BED KNOCKOUT SPECIFICATIONs
TYPE: MECHANICAL TYPE
CAPACITY: 735 kN (75 tf) AT TOTAL STAGE
STROKE: 75 mm
DIAMETER OF KNOCKOUT PIN: Ø80
ATTACHMENT OF PIN LIFTER: IN COMMON WITH BED KNOCKOUT PIN
CAPACITY OF PIN LIFTER: 9.8 kN (8 tf ) (1)

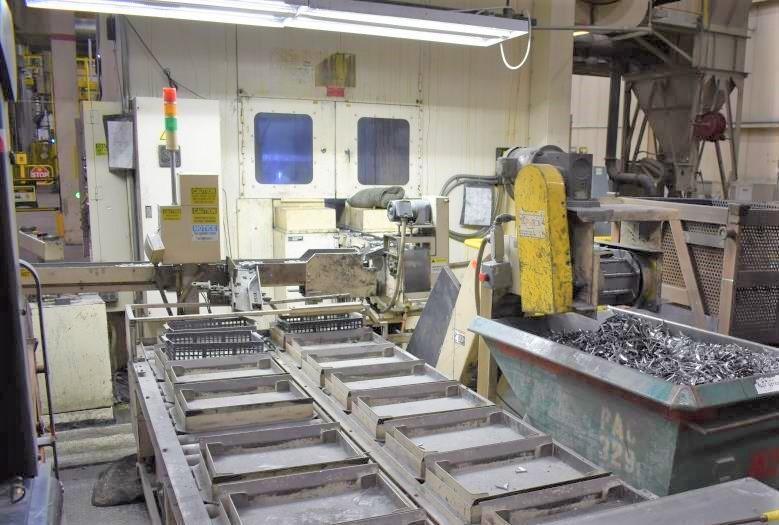

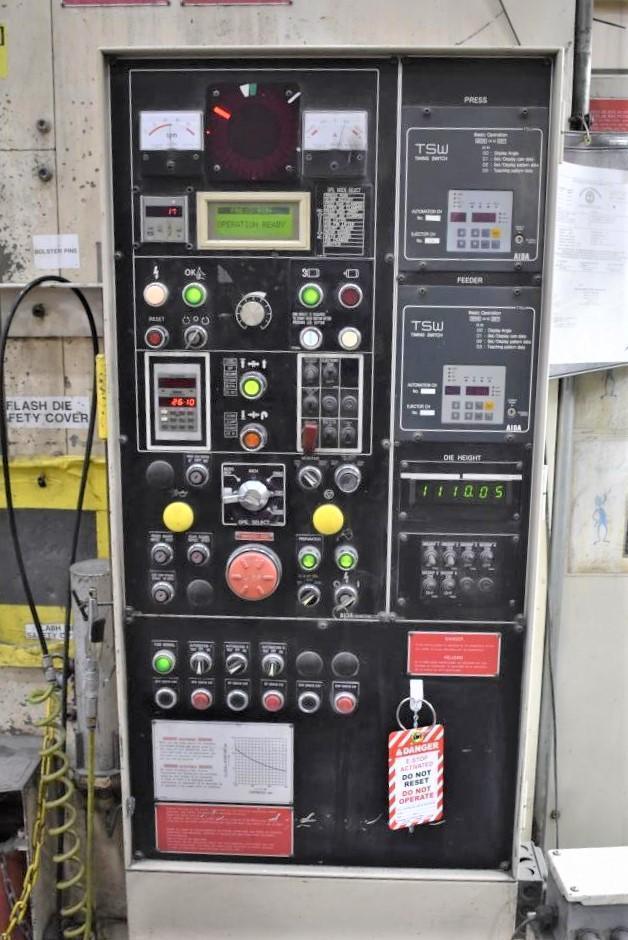

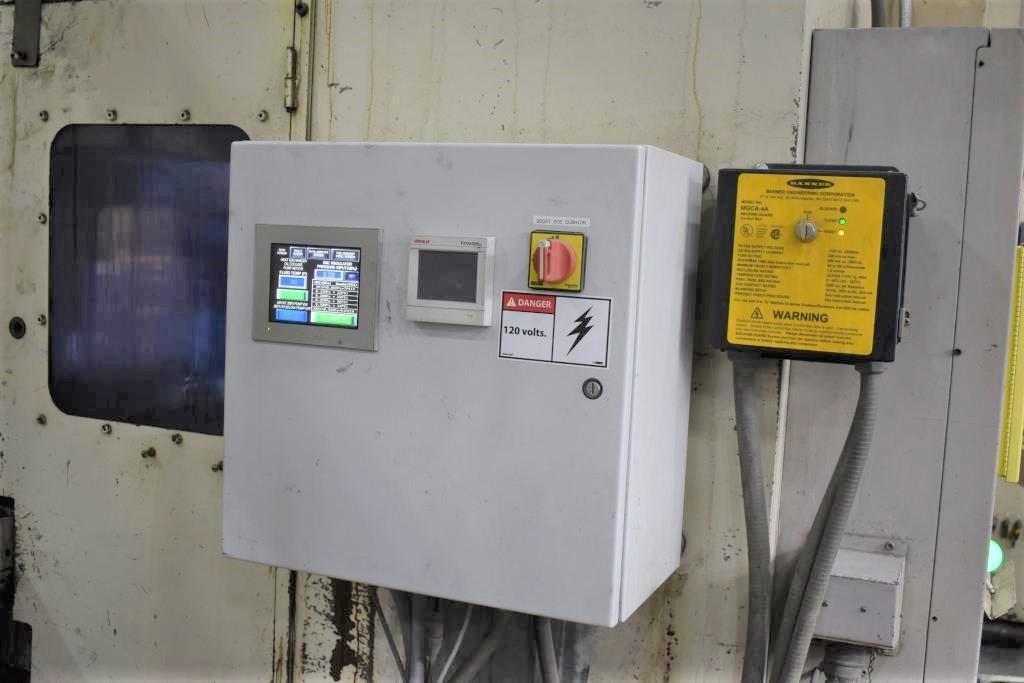

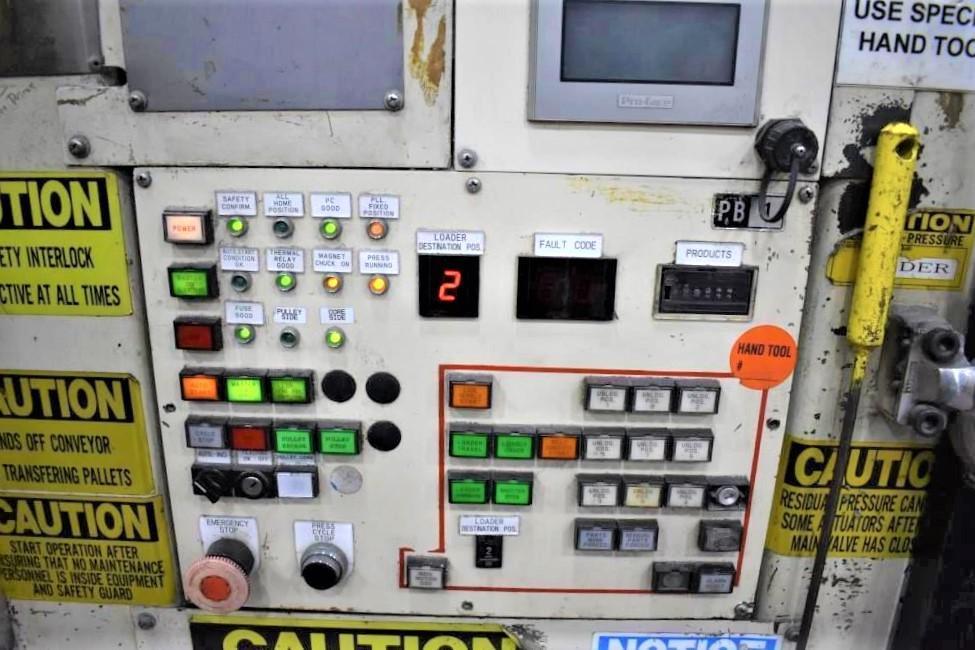

TRANSFER FEEDER SPECIFICATIONS
TYPE: 2—AXIS TRANSFER DEVICE
FEED STROKE: 200 mm
CLAMPING STROKE PER ONE SIDE: 100 mm
INSIDE DISTANCE OF FEED BARS: 250 mm AT CLAMP
FEED DIRECTION: LEFT TO RIGHT
HEIGHT OF FEED BAR BOTTOM FACE: 711 mm (from BOLSTER)

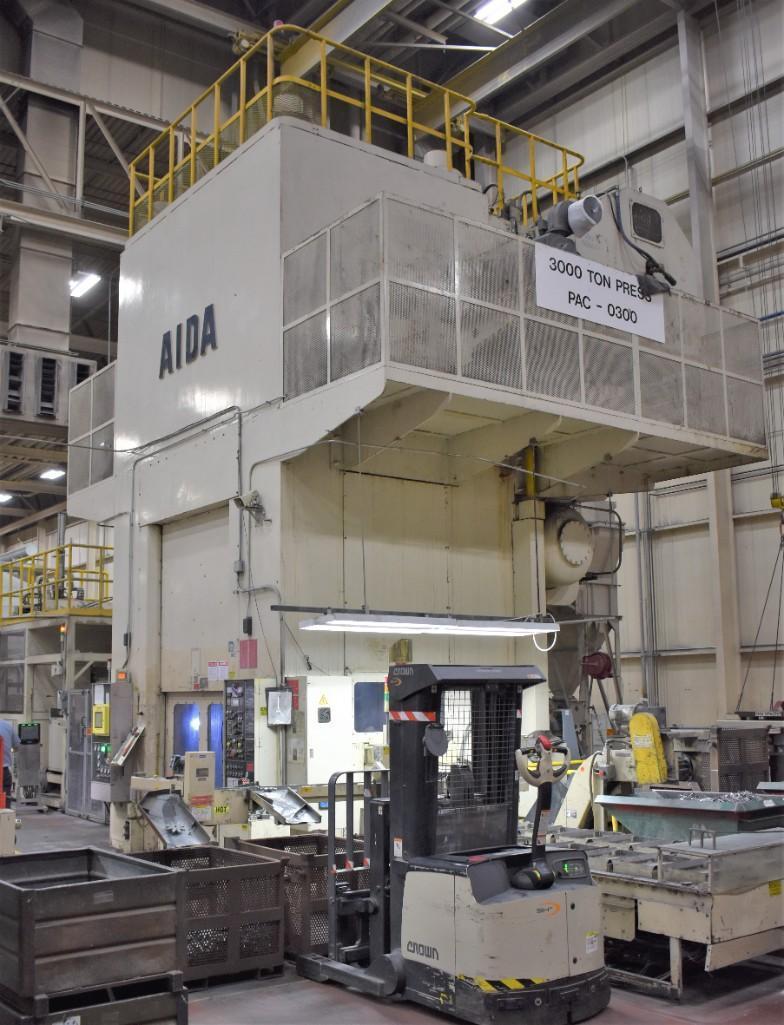

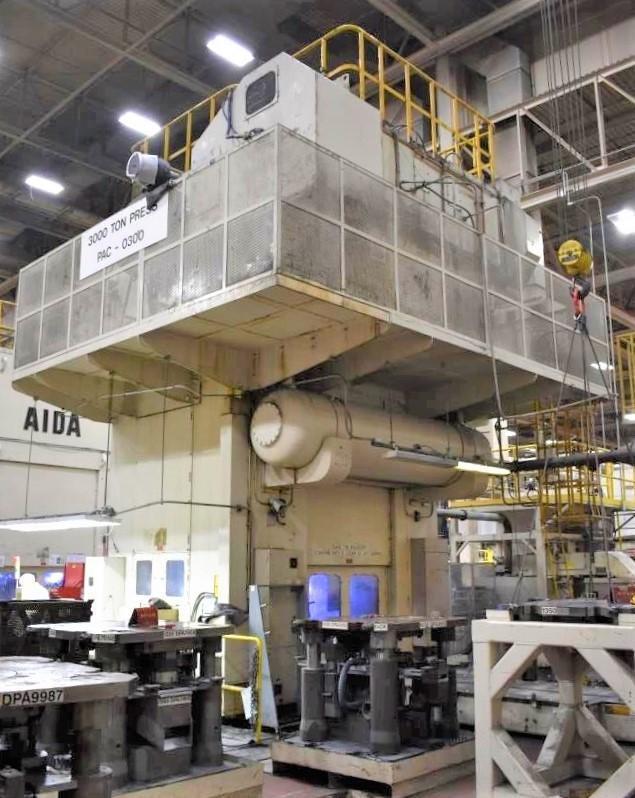

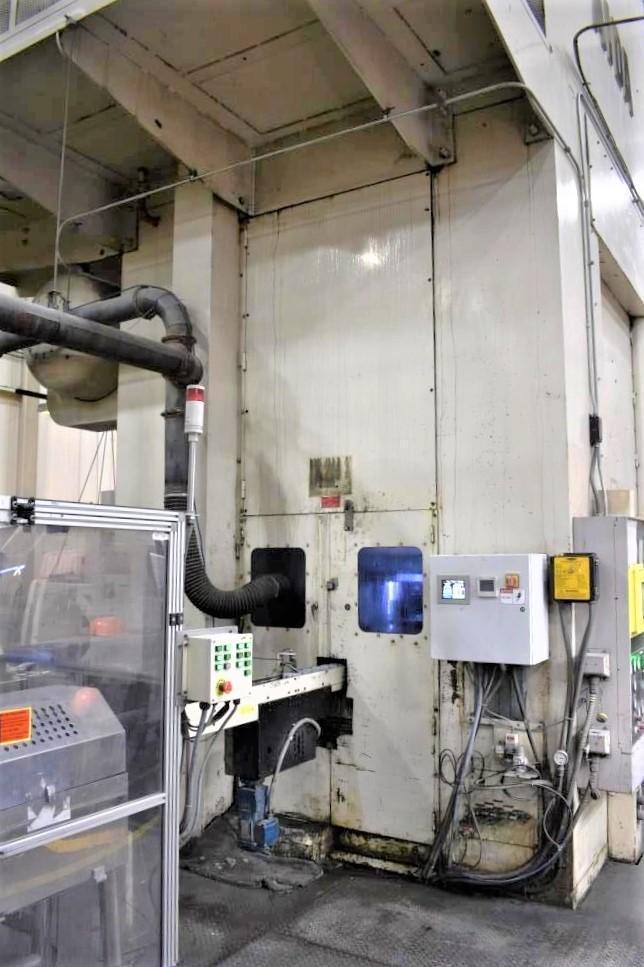

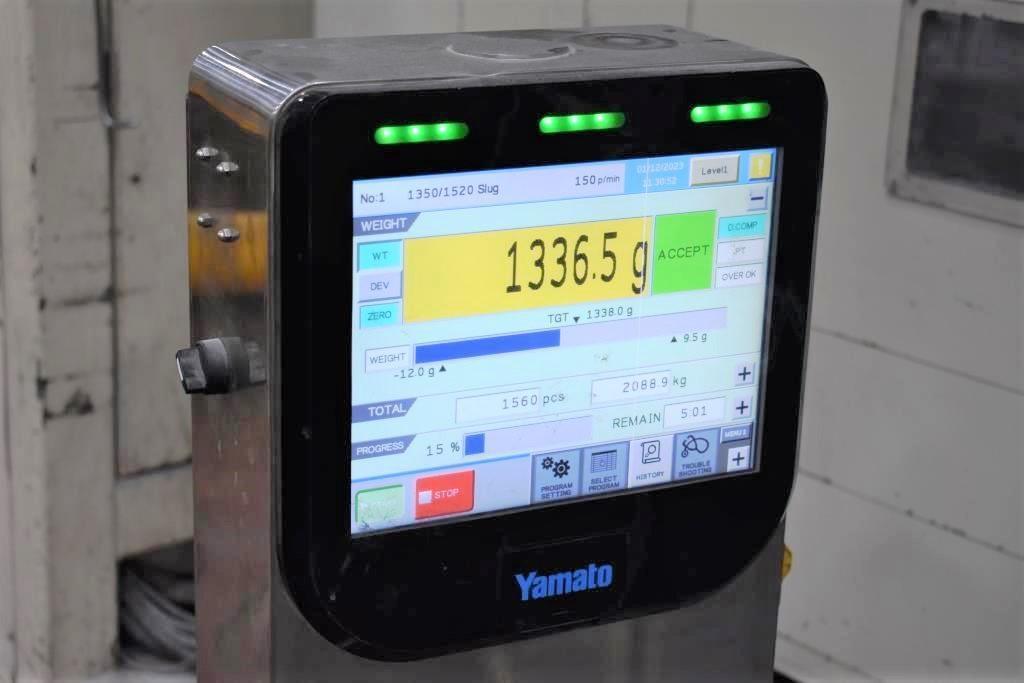

Height Above Floor Approx. 8600 mm (28' -2")
Approximate Total Weight 370 T. Crown # 190,000 LBS, Bed 170,000 LBS, Slide 110,000 LBS,
