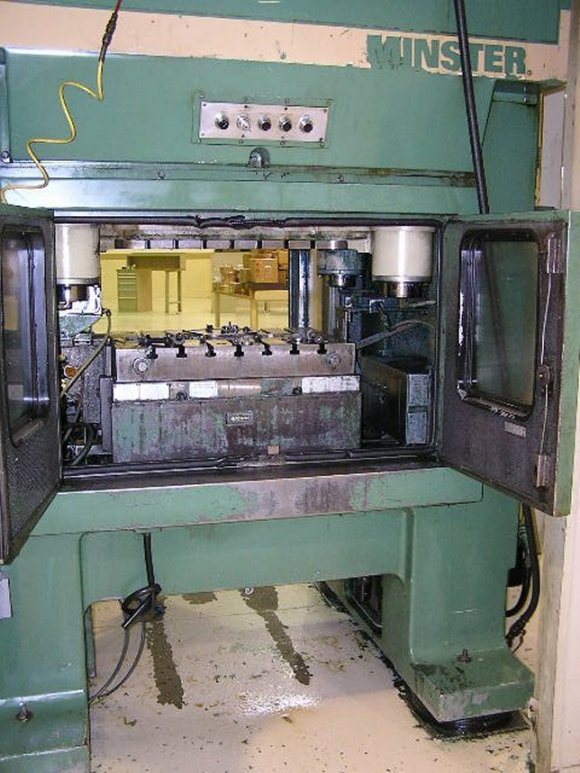

30 Ton, MINSTER, No. TR2-30, 1.25"STR, 9"SH, 1.75"ADJ, 100-1100SPM, 1983,

Brand
MINSTER

Model
TR2-30

Stock #
3111

Condition
Good

Year

Specifications

Equipped With

PRELIMINARY SPECIFICATIONS*

30 TON @ 0.40" OFF BOTTOM CAPACITY
1.25" STROKE
7.25" - 9" SHUT HEIGHT OVER BOLSTER (ADJUSTABLE)
11.25" - 13" SHUT HEIGHT OVER BED (ADJUSTABLE)
1.75" BOLSTER ADJUSTMENT (MOTORIZED)
30" X 21" BOLSTER AREA
26" X 4" OPENING IN BED
100-1100 SPM VARIABLE

EQUIPPED WITH

15.5" WINDOWS
HYDRAULIC CLUTCH AND BRAKE WITH SELECTOR CONTROLS
25 HP EDDY CURRENT MAIN DRIVE MOTOR
DUAL PUSH BUTTON OPERATION
ELECTRICAL CONTROLS

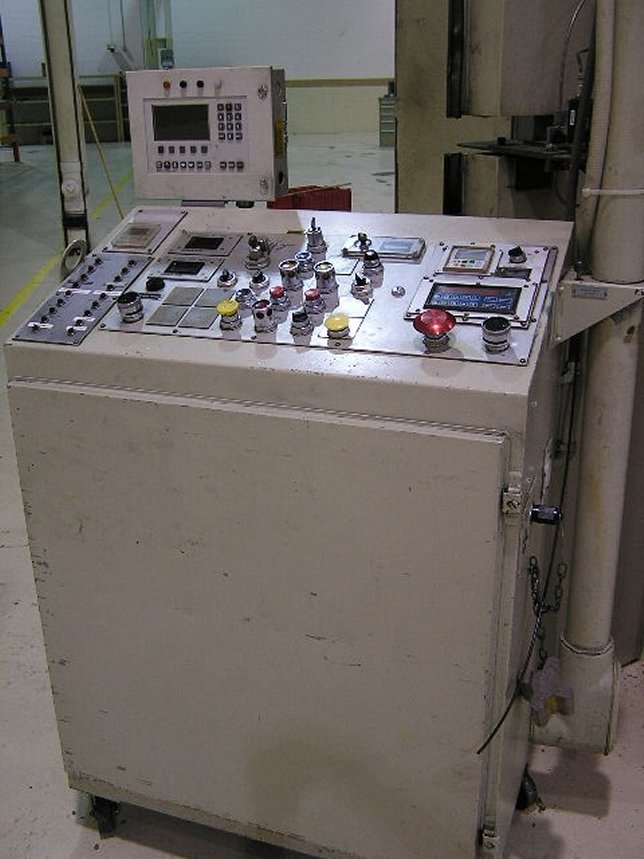

FREE STANDING OPERATOR CONSOLE CONTROL

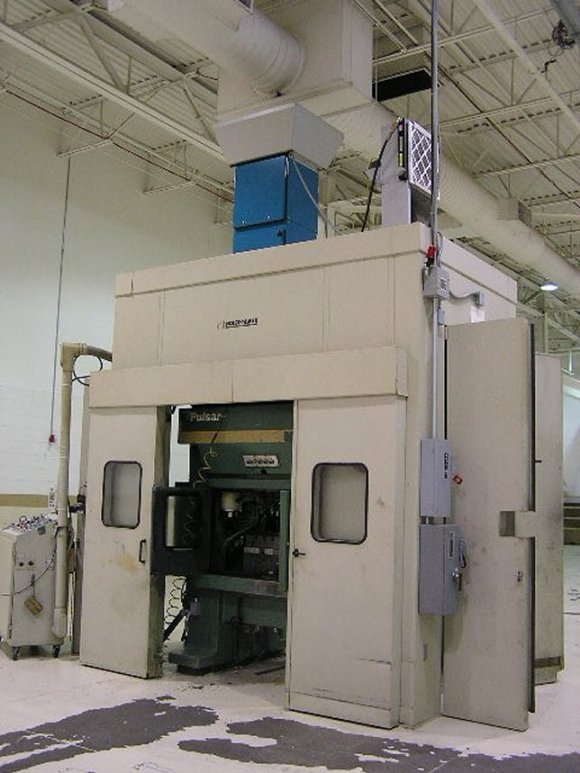

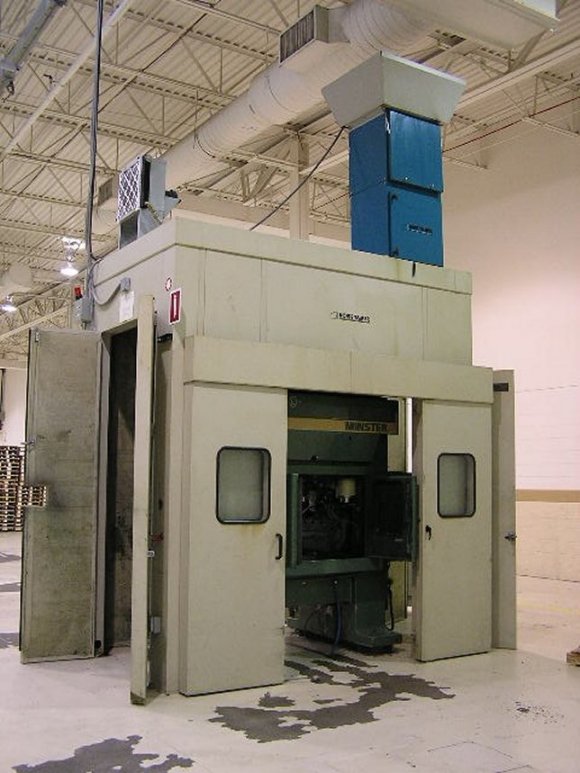

NOISE-TAMER SOUND ENCLOSURE W/MIST-TAMER RADIATOR
AUTOMATIC RECIRCULATING LUBE SYSTEM
VIBRATION PADS
VAMCO MV6 FEEDER


APPROX DIMENSIONS

176"LR X 96"FB X 252"H
20,000LBS



*SUBJECT TO VERIFICATION
