PRELIMINARY SPECIFICATIONS

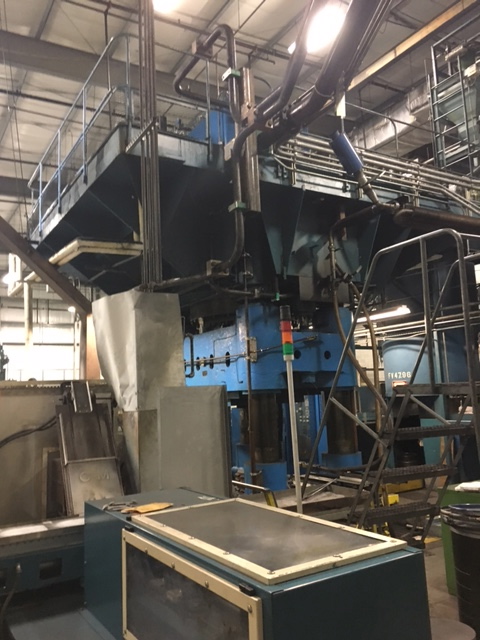

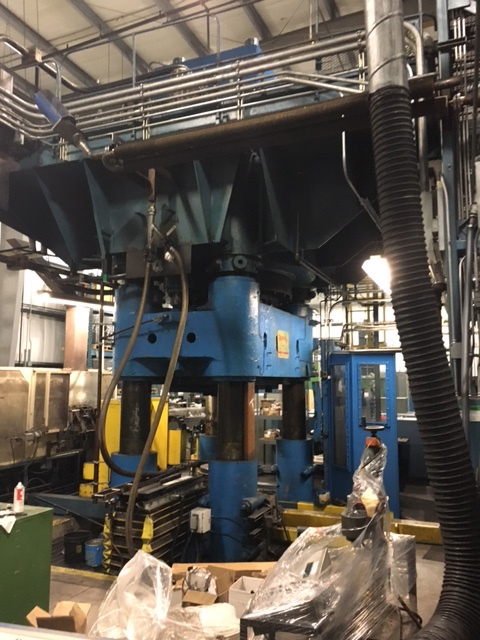

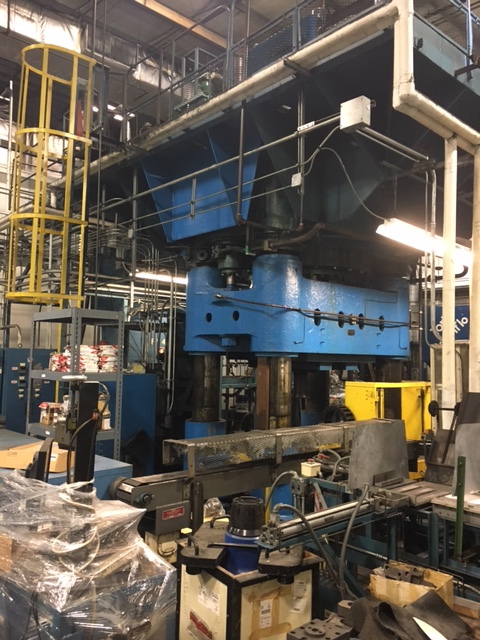

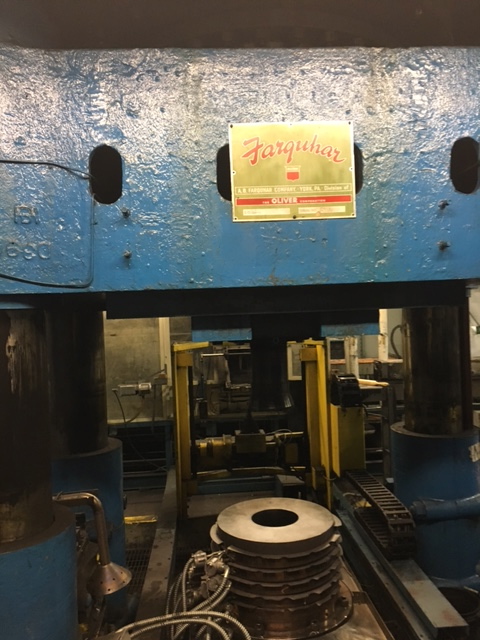

FARQUAR 4 POST HYDRAULIC DOWN ACTING PRESS
MODEL 3501402
COMPLETE RETROFIT HYDRAULIC SYSTEM
2500 TON CAPACITY
24" STROKE
79" DAYLIGHT OPENING INCLUDING 4" THICK BOLSTER ON BED
70" LR X 66 FB BED AND SLIDE WORKING AREA
56 1/4" X 56 1/4" X 4" BOLSTER ON BED
SPEEDS
435, 26, 435 IPM
EQUIPPED WITH
POWER SLIDING TOOLING TABLE ON BED, 32" LR X 42" FB, 42" STROKE
4 POST 14" DIA. EACH
CONTROLS, ELECTRIC PUSH BUTTON INCLUDING:
AUTO, SEMI-AUTO, MOTOR ON/OFF, JOG UP AND DOWN
SLIDE FULLY GUIDED
MAIN RAM 50" DIA.
PUMP 30 HP
HYDRAULICS MOUNTED ON PRESS CROWN
(2) 125 HP 220/440 3/60, 500 RPM MOTORS DRIVING
APPROX TOTAL WEIGHT 325,000 LBS
PRESS IS AVAILABLE IMMEDIATELY, CALL FOR DETAILS!!!
Specifications Subject To Verification; Subject To Prior Sale
