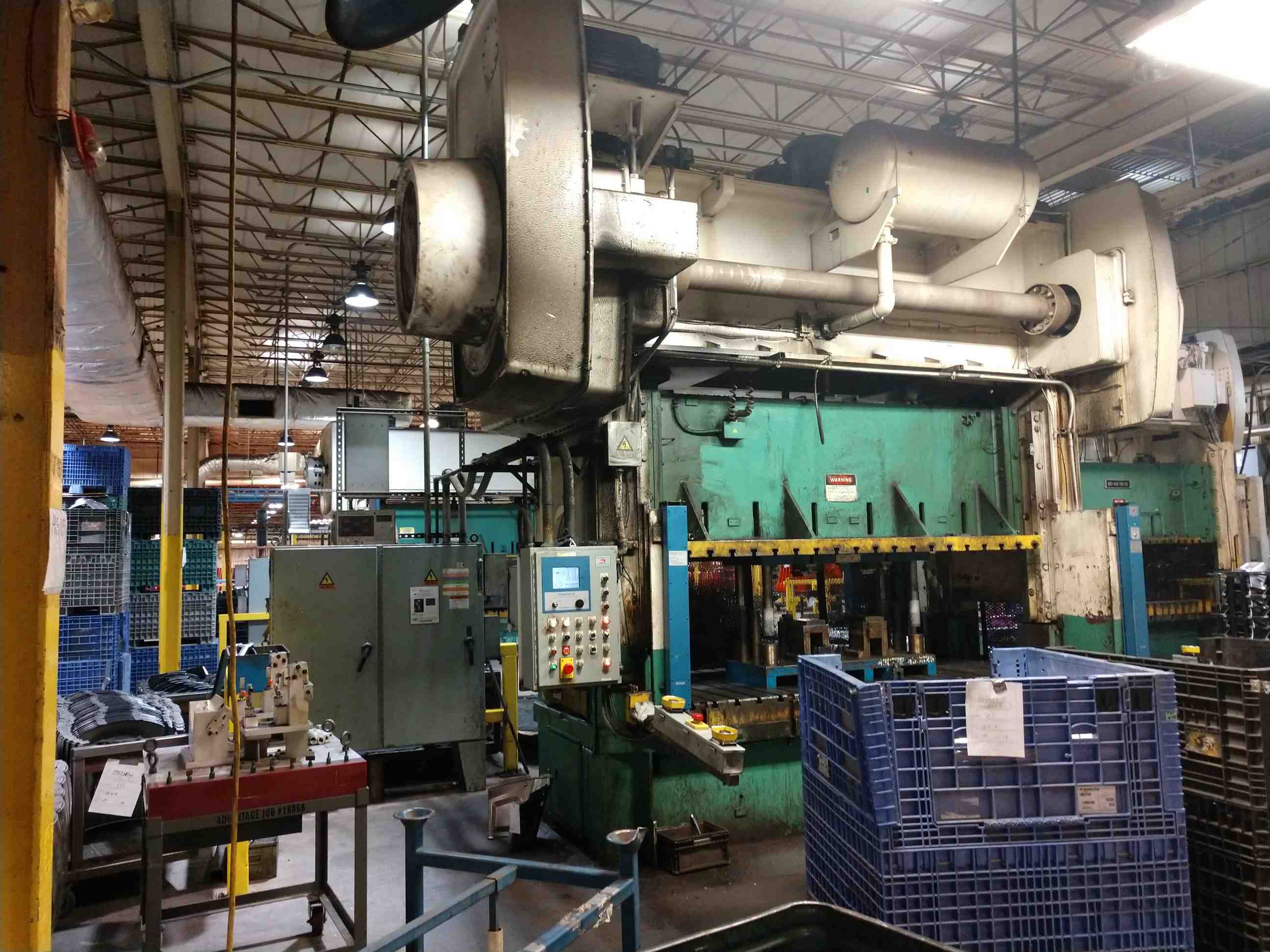

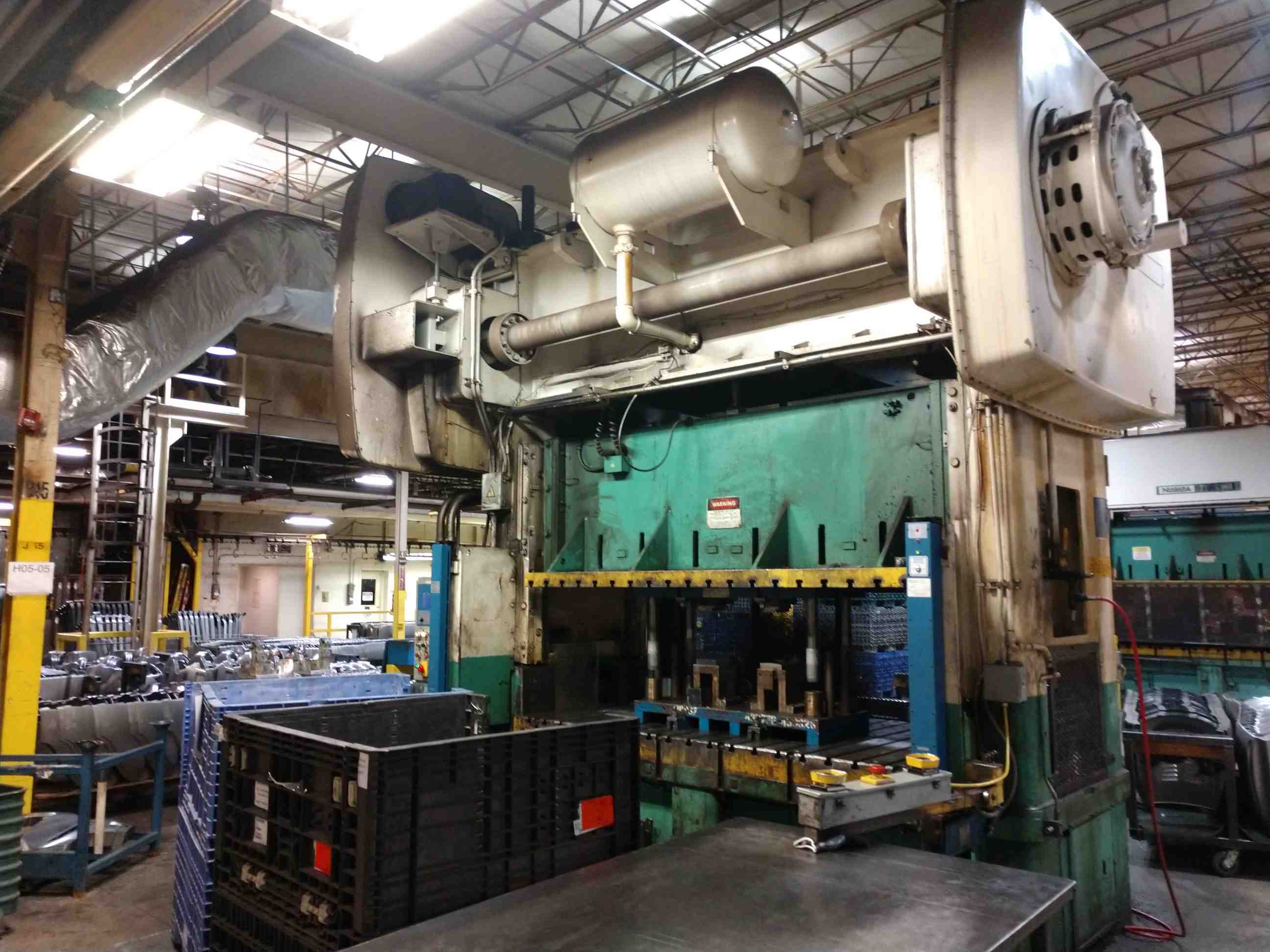

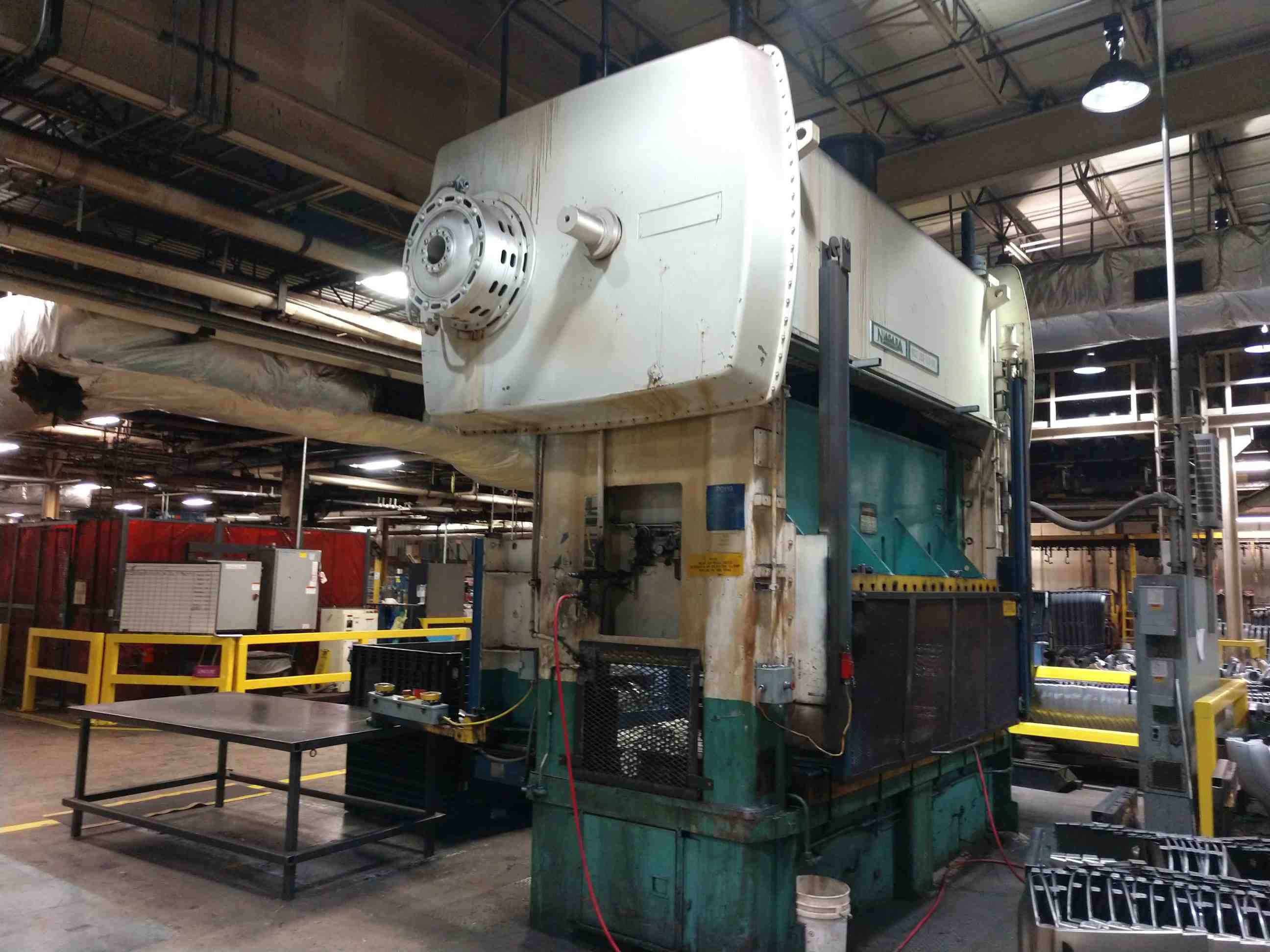

250 TON NIAGARA STRAIGHT SIDE DOUBLE CRANK PRESS, MODEL SC2-250, 12" STR, 30" SH, 11" ADJ, 120" LR X 60" FB BA, 20-40 SPM VARI, (3) 34 T CUSHIONS, 1988, Updated Controls

Brand
NIAGARA

Model
SC2-250

Stock #
7341

Condition
Good

Year
1988

Specifications

Equipped With

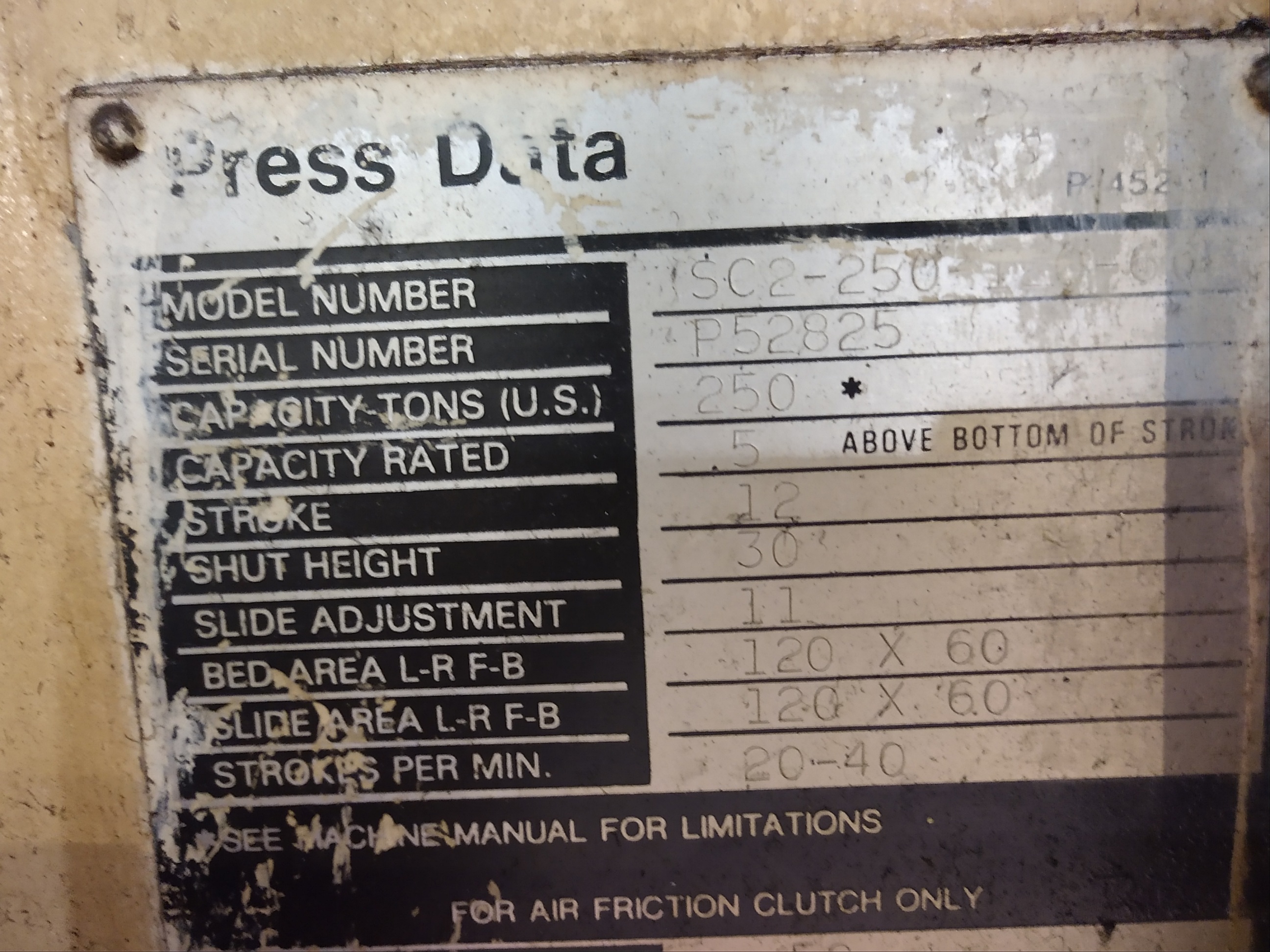

PRELIMINARY SPECIFICATIONS

NIAGARA STRAIGHT SIDE DOUBLE CRANK PRESS (Updated Controls)
MODEL: SC2-250-120-60
S/N: P52825
YEAR 1988

250 TON CAPACITY
12" STROKE
30" SHUT HEIGHT
11" RAM ADJUSTMENT (Motorized)
120" LR X 60" FB BED AREA
120" LR X 60" FB RAM AREA
28" F-B X 20" T-B WINDOWS
20-40 SPM VARIABLE
(3) 45 TON CUSHIONS @ 100 P.S.I.

EQUIPPED WITH

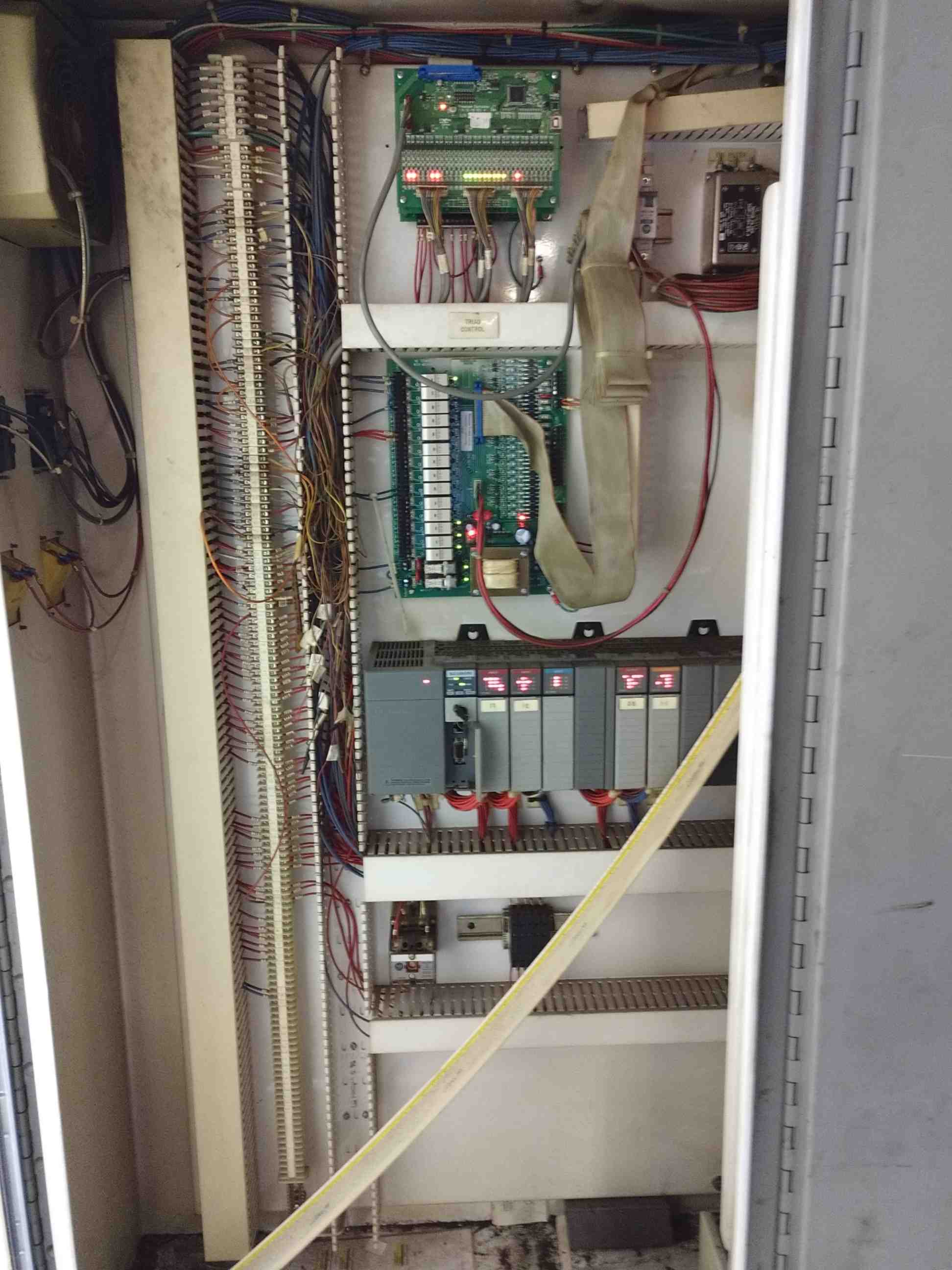

UPDATED CONTROLS

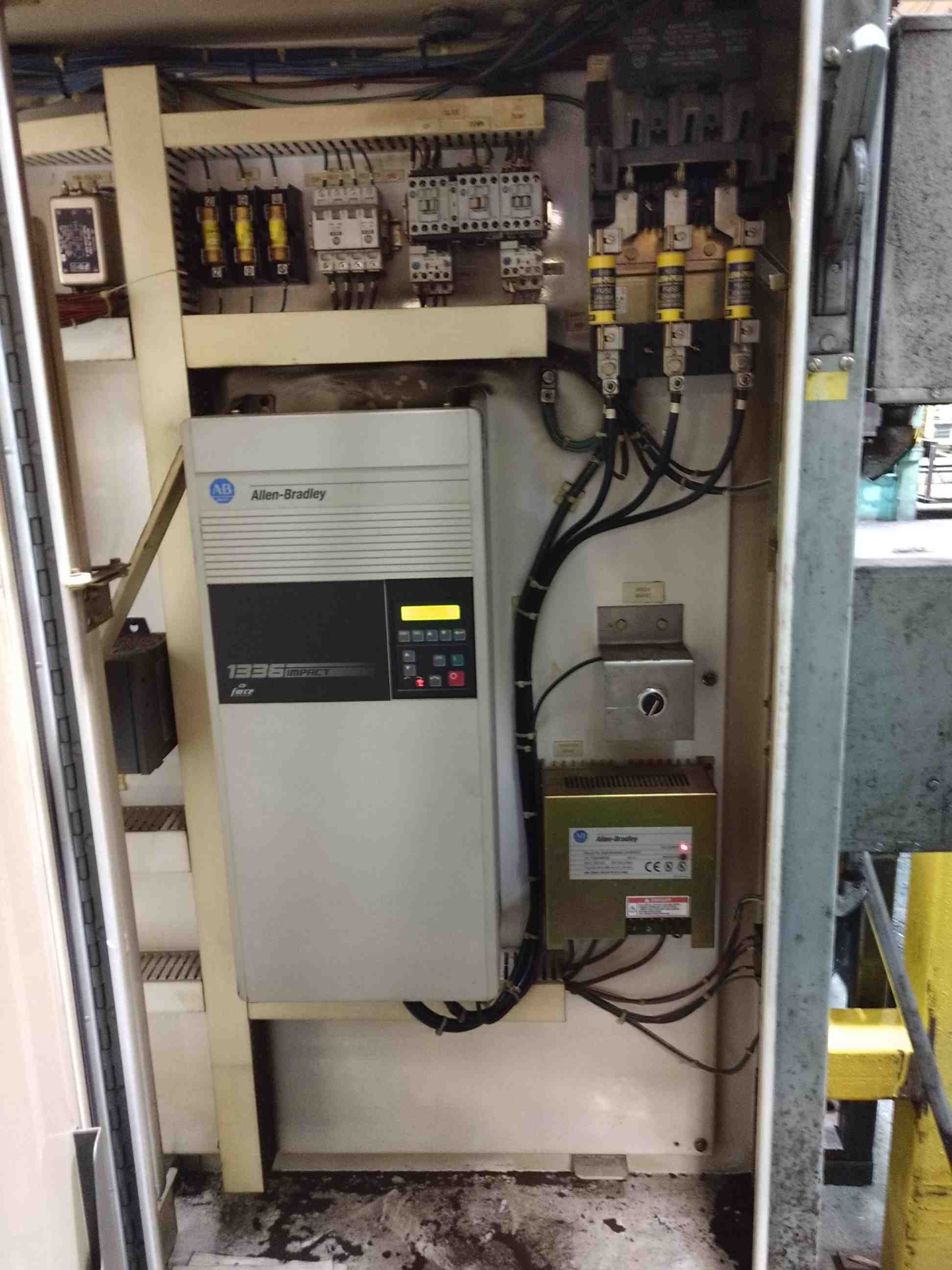

ALLEN BRADLEY 1336 IMPACT

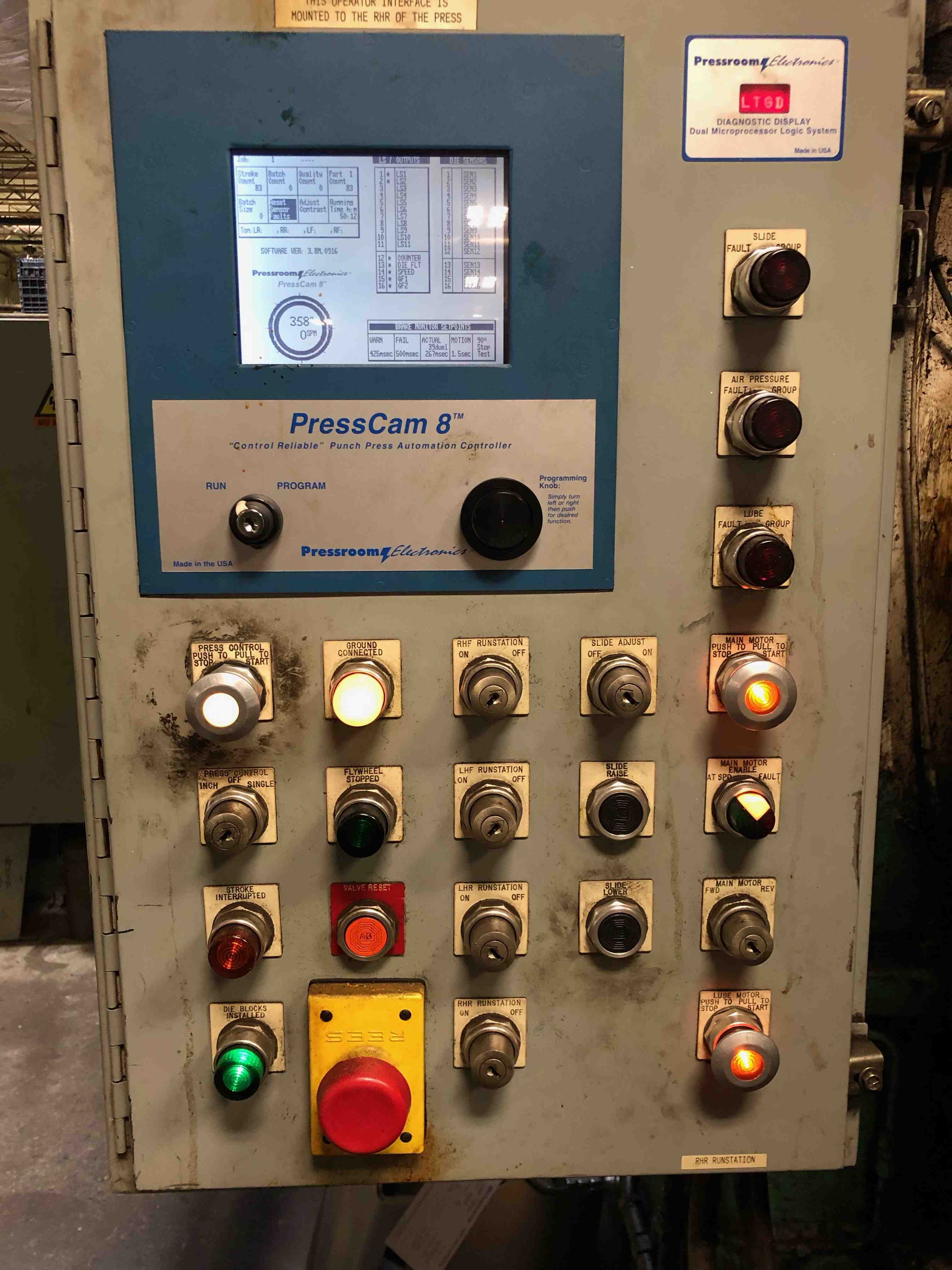

TRIAD PRESS ROOM ELECTRONICS PRESSCAM 8
SIDE WINDOWS
LIGHT CURTAINS (FRONT & BACK)
OPERATOR T-STAND DUAL PALM BUTTON
T-SLOTTED BOLSTER & RAM SLIDE
SLIDE ADJ. POSITION INDICATOR
COUNTER BALANCE
VIBRO DYNAMIC ISOLATION PADS
(3) 45 TON CUSHIONS @ 100 P.S.I., 6" STROKE, MODEL 3C-20-6
30 HP, 1700 RPM, ADJUSTABLE SPEED DRIVE

APPROX DIMENSIONS 121" F-B X 218" L-R X 191" H (24" PIT DEPTH)
ESTIMATED WEIGHT 110,000 LBS

LARGE BED, UPDATED CONTROLS, CAME OUT OF RUNNING SERVICE
AVAILABLE FOR INSPECTION, AVAILABLE IMMEDIATELY!!!

Specifications Subject To Verification; Subject To Prior Sale and Price Change
We encourage your personal inspection of this machine, available immediately!
