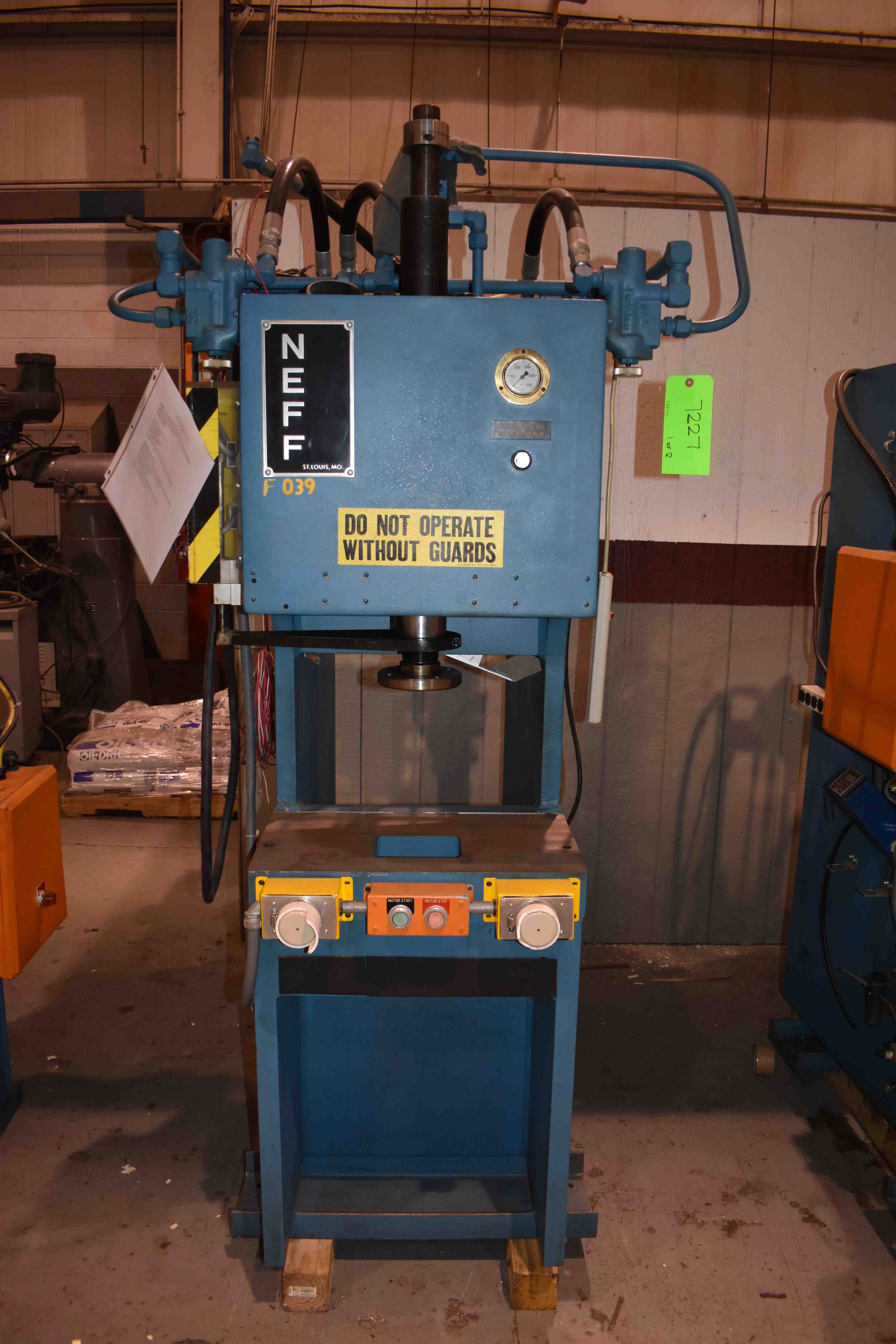

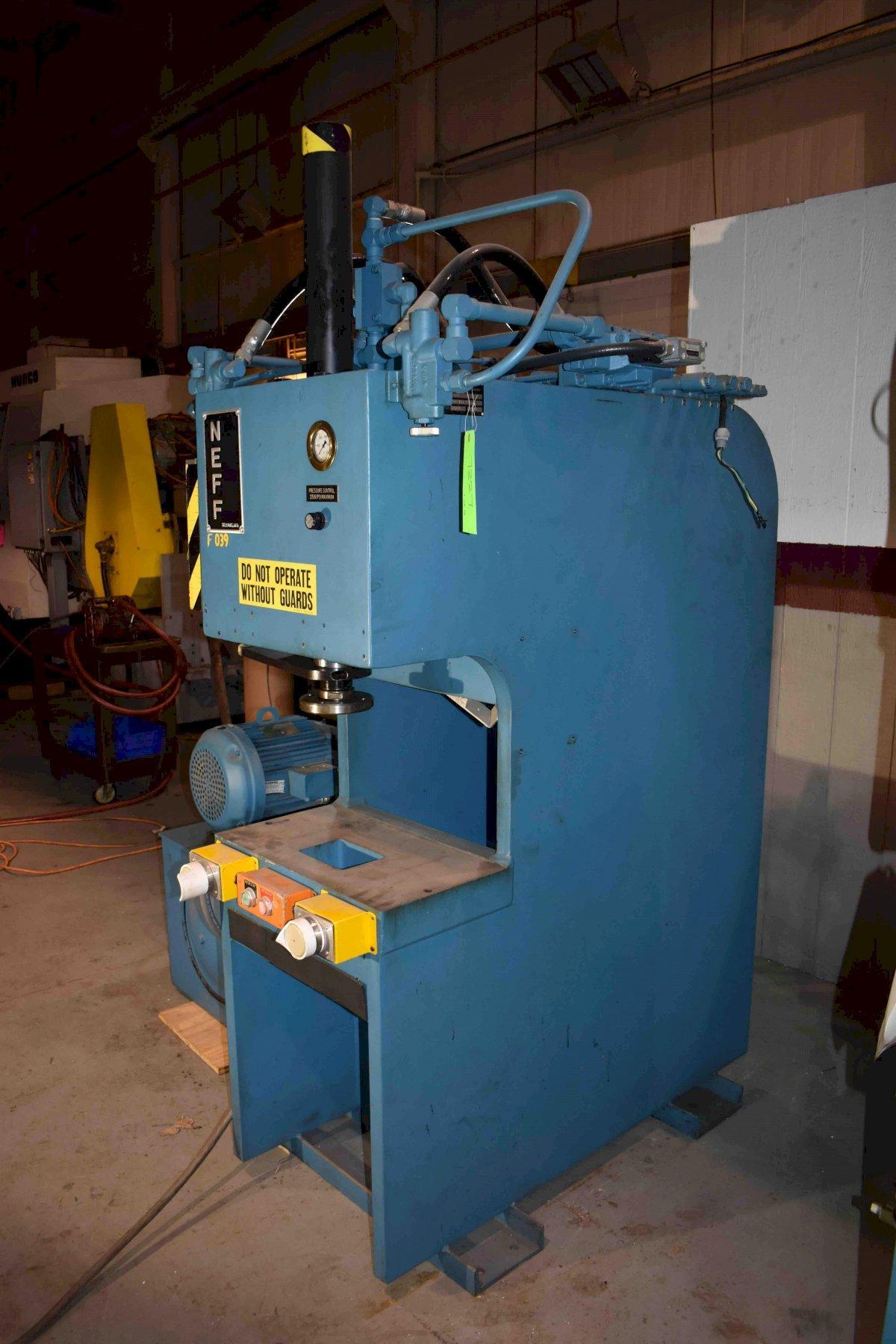

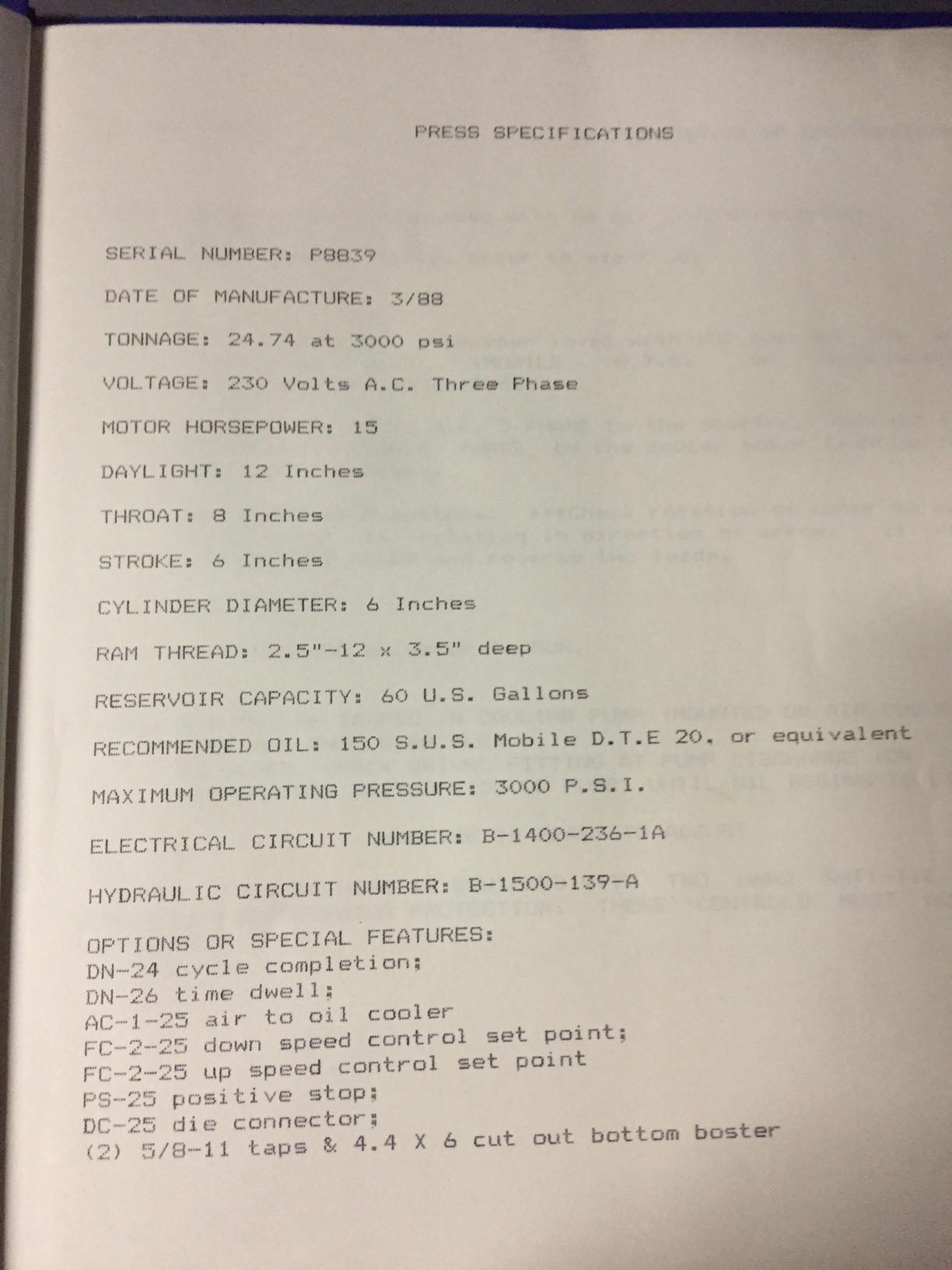

PRELIMINARY SPECIFICATIONSNEFF C-FRAME HYDRAULIC DOWN ACTING PRESS
OPEN BACK FRAME

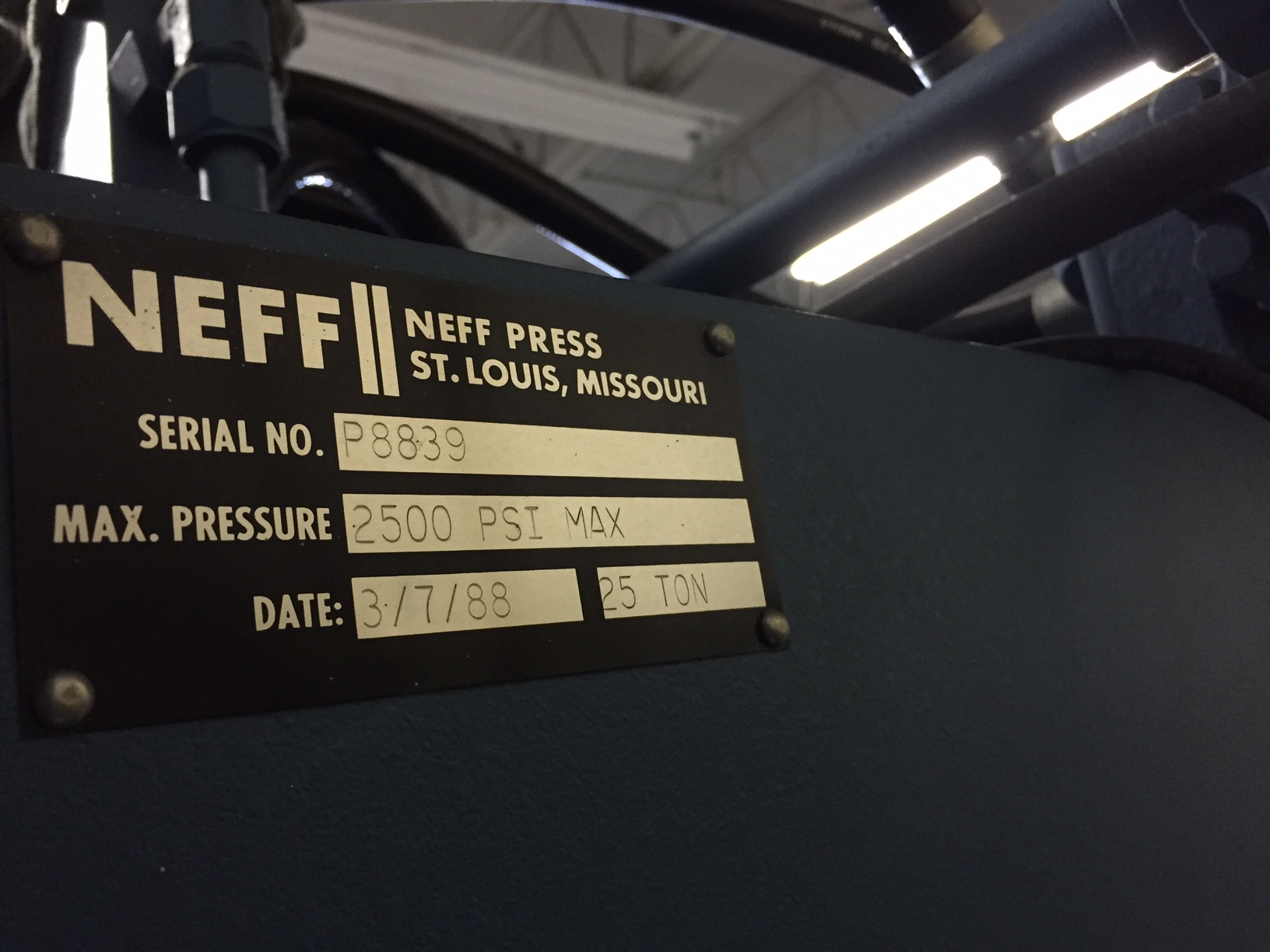

S/N P8839
25 TON CAPACITY
6" STROKE
12" DAYLIGHT
8" THROAT
22.5" LR X 12.5" FB BED AREA
4.40" X 6" CUT OUT BOTTOM BOLSTER

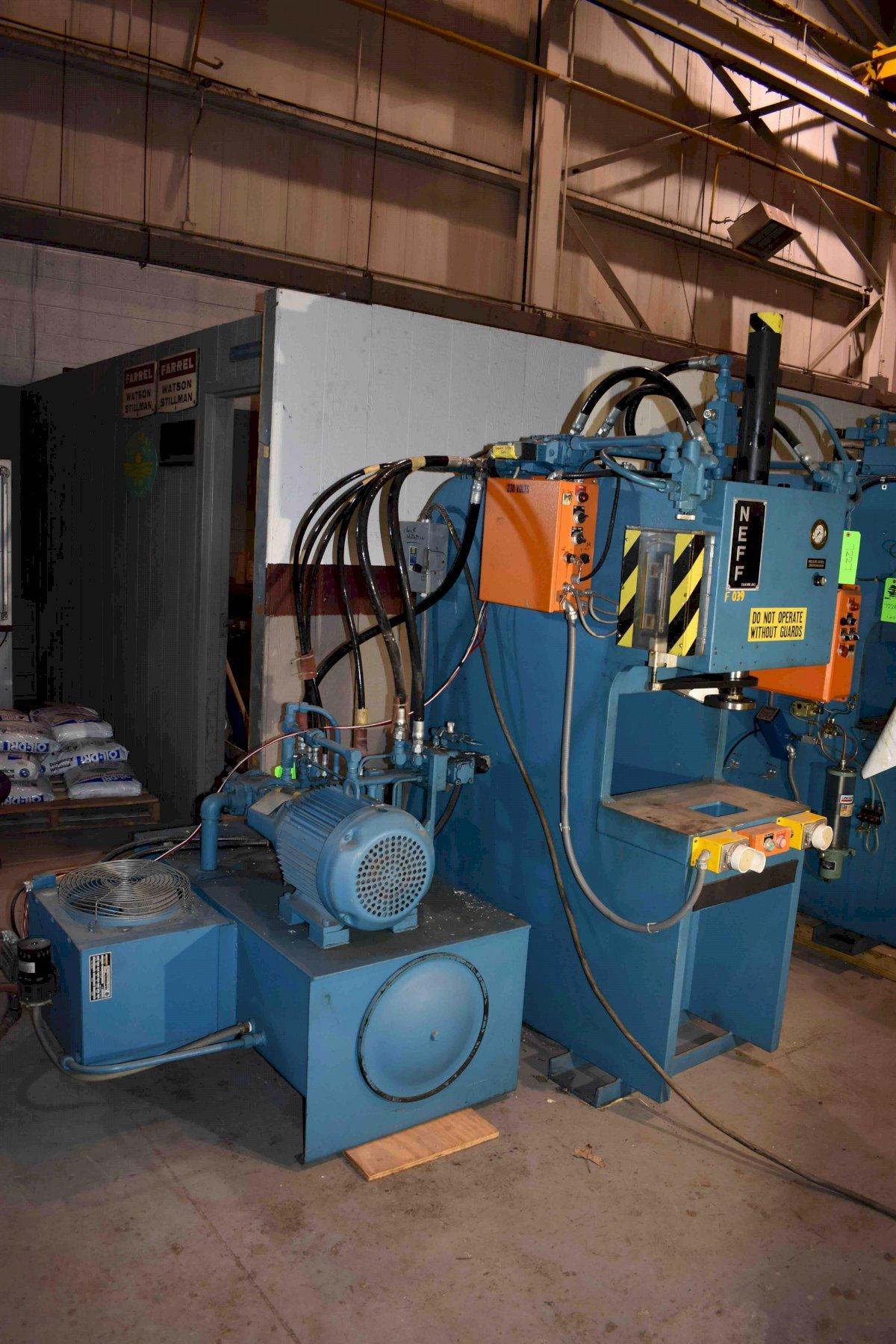

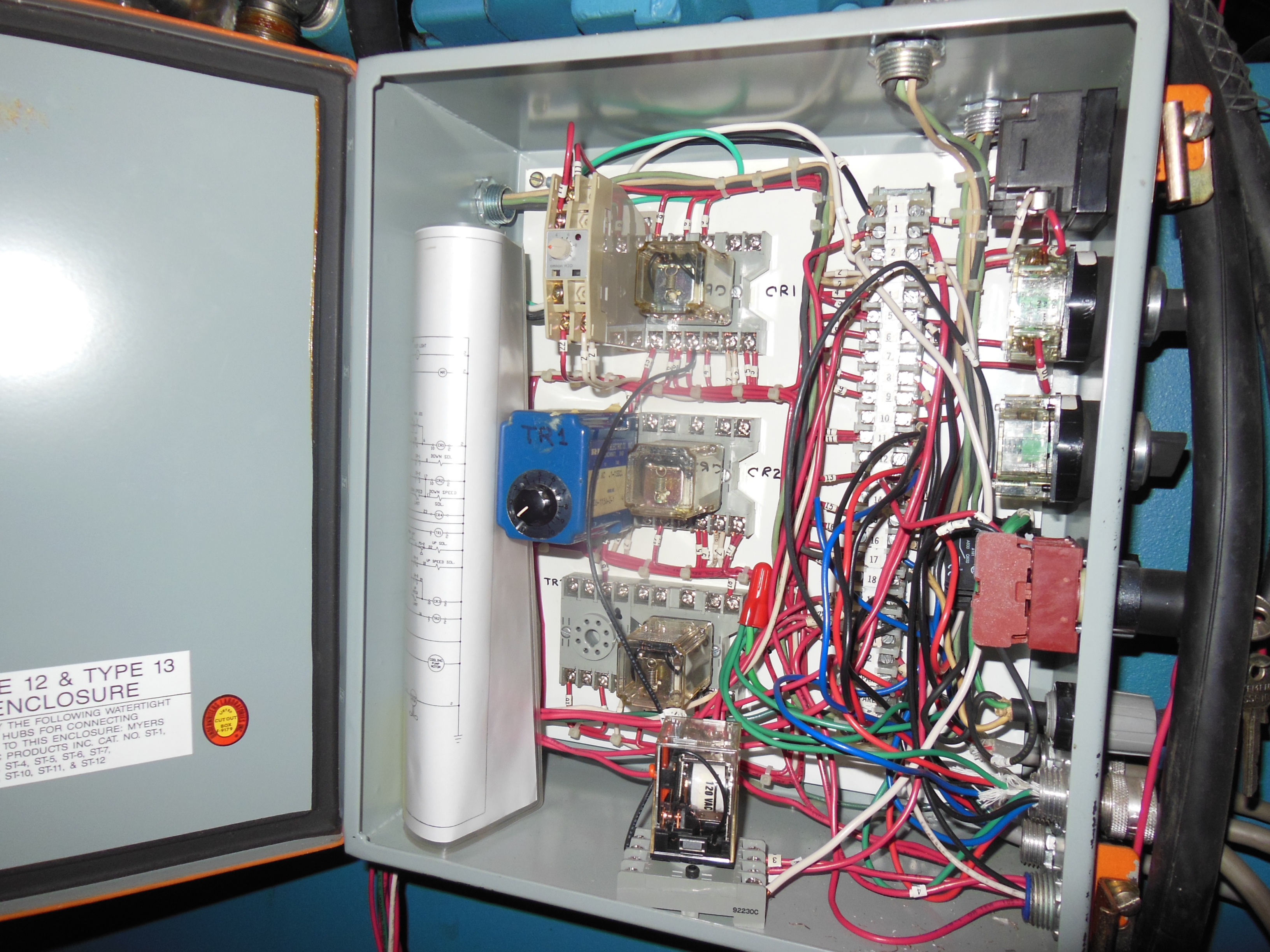

EQUIPPED WITHMOTOR, ELECTRICS, & HYDRAULIC PACKAGE
OPERATOR PALM CONTROLS
6" DIA. CYLINDER
15 HP MOTOR
60 GALLON RESERVOIR CAPACITY
OIL COOLER BY AIR
230V, 60 hz
Approx Dimensions
PRESS APPROX. 22" W x 60" L x 86" H (est. 3,000 lbs)

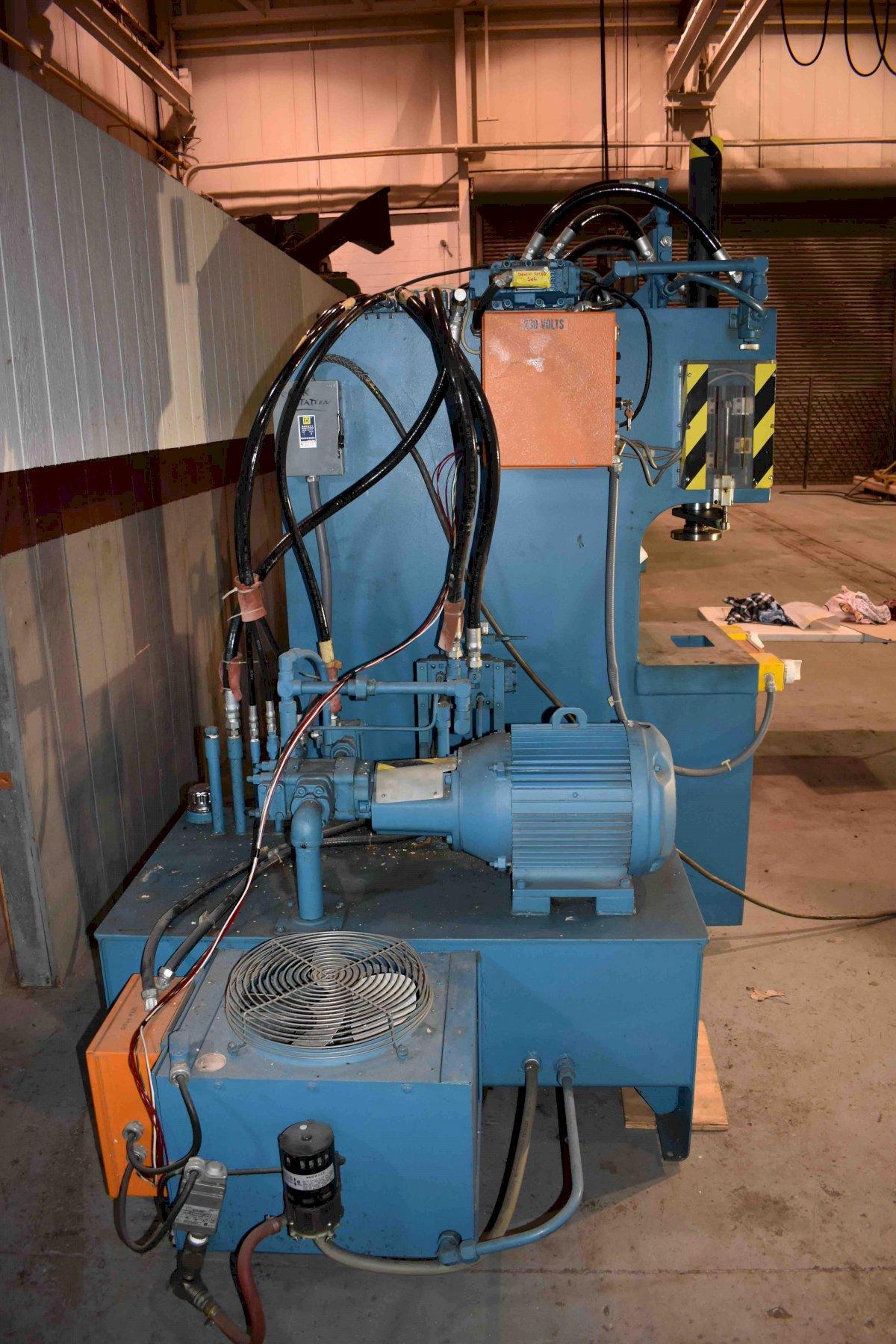

HYDRAULIC UNIT APPOX. 60" W x 54" L x 42" H (est 1,500 lbs)
WELL MAINTAINED PRESS, AVAILABLE FOR INSPECTION & IMMEDIATE DELIVERY, (2) 25 TON NEFF & (1) 40 TON NEFF PRESSES AVAILABLE
Specifications Subject to Verification; Subject to Prior Sale & Price Change
