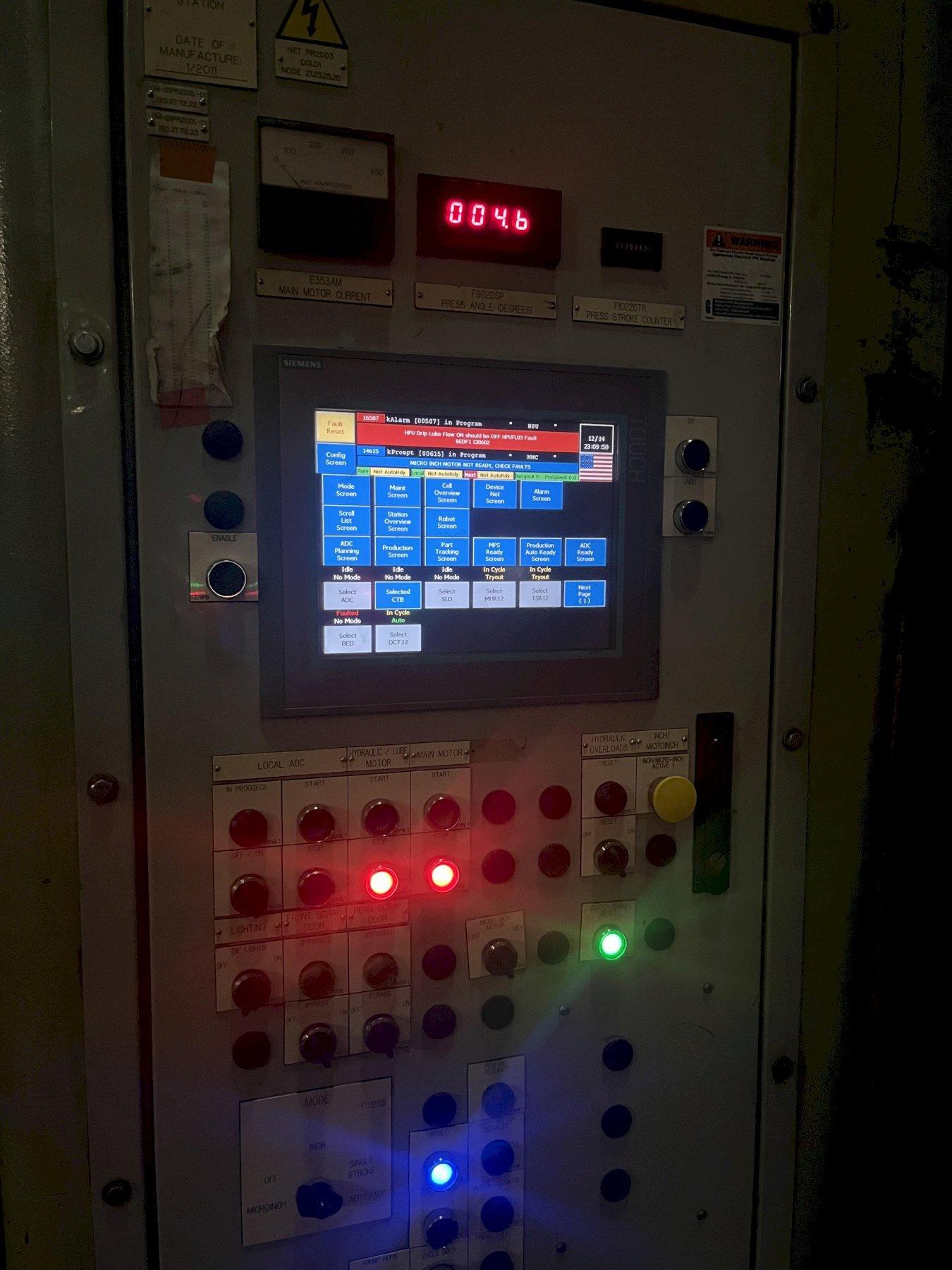

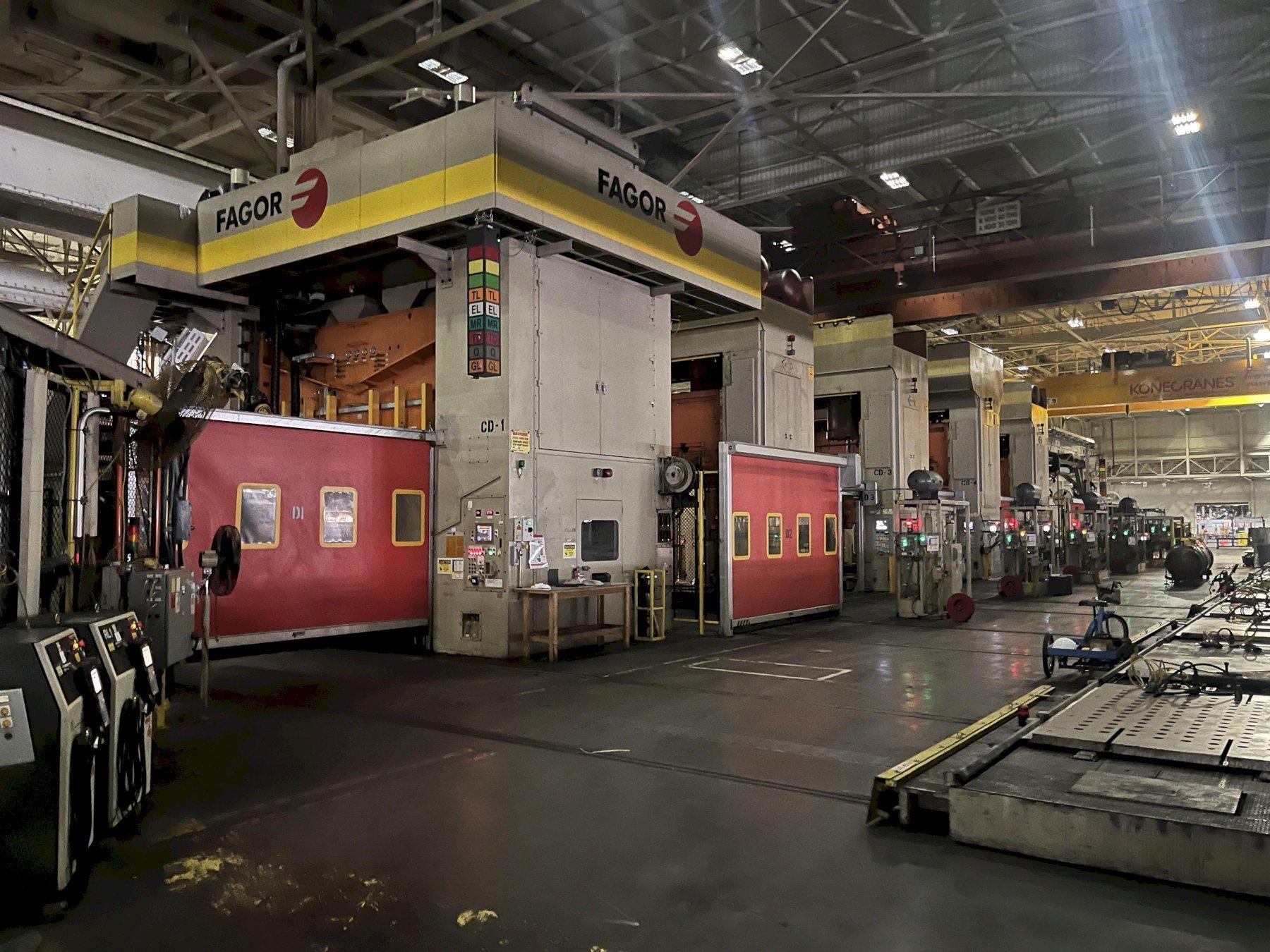

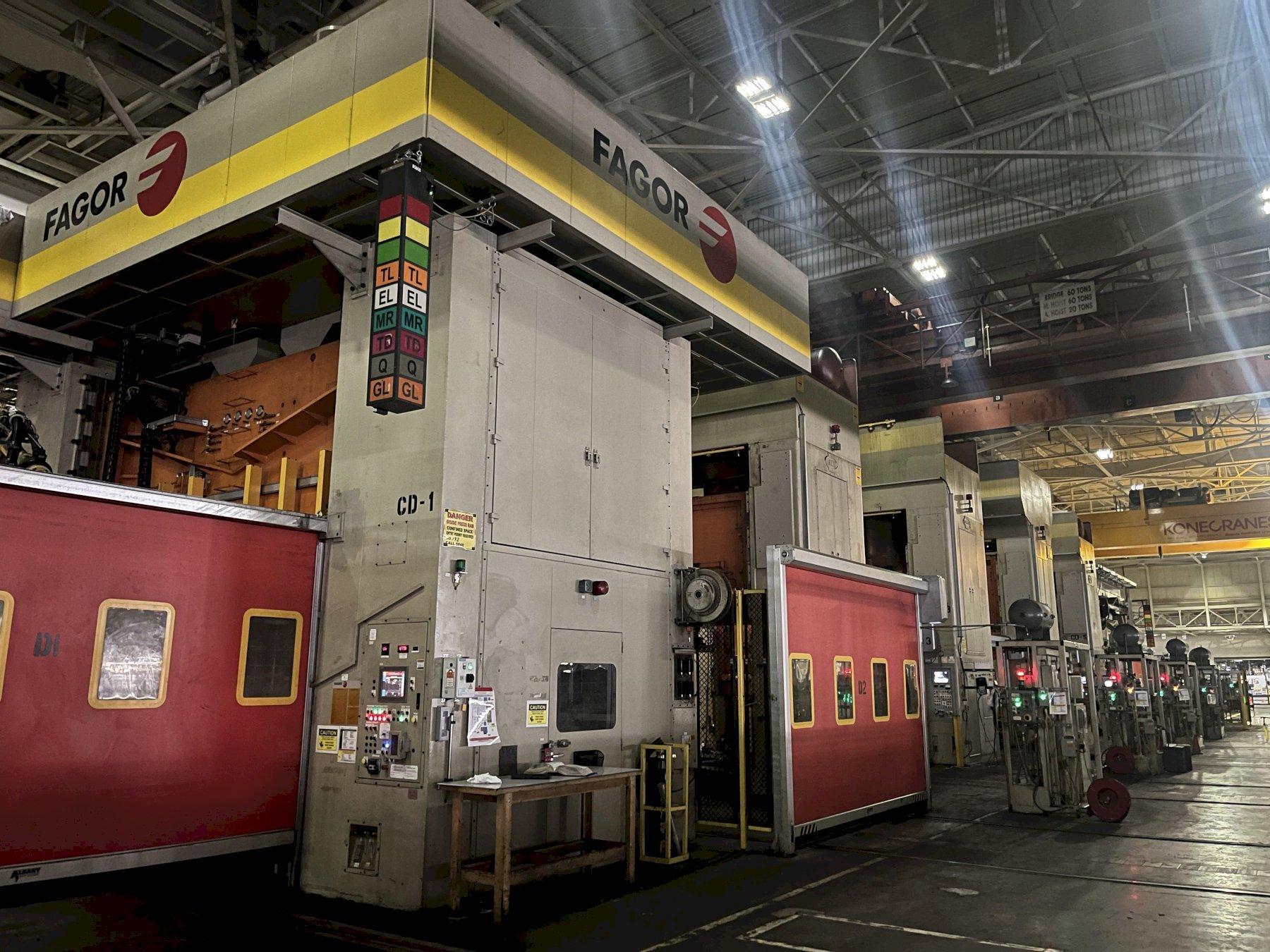

2250 Ton Fagor / Danly Tandem complete press line with Siemans CNC controls.
Lead Press
2250 ton Fagor Model LE4-4572-2438 Link drive Straight side press 180" x 96" BA
(2011)
39" stroke
12". adjustment of slide
68.1"Shut height (stroke down adjustment up from bed to bottom of slide)
7-16 SPM vairable
Equipped with:
air clutch and brake
air counter balances

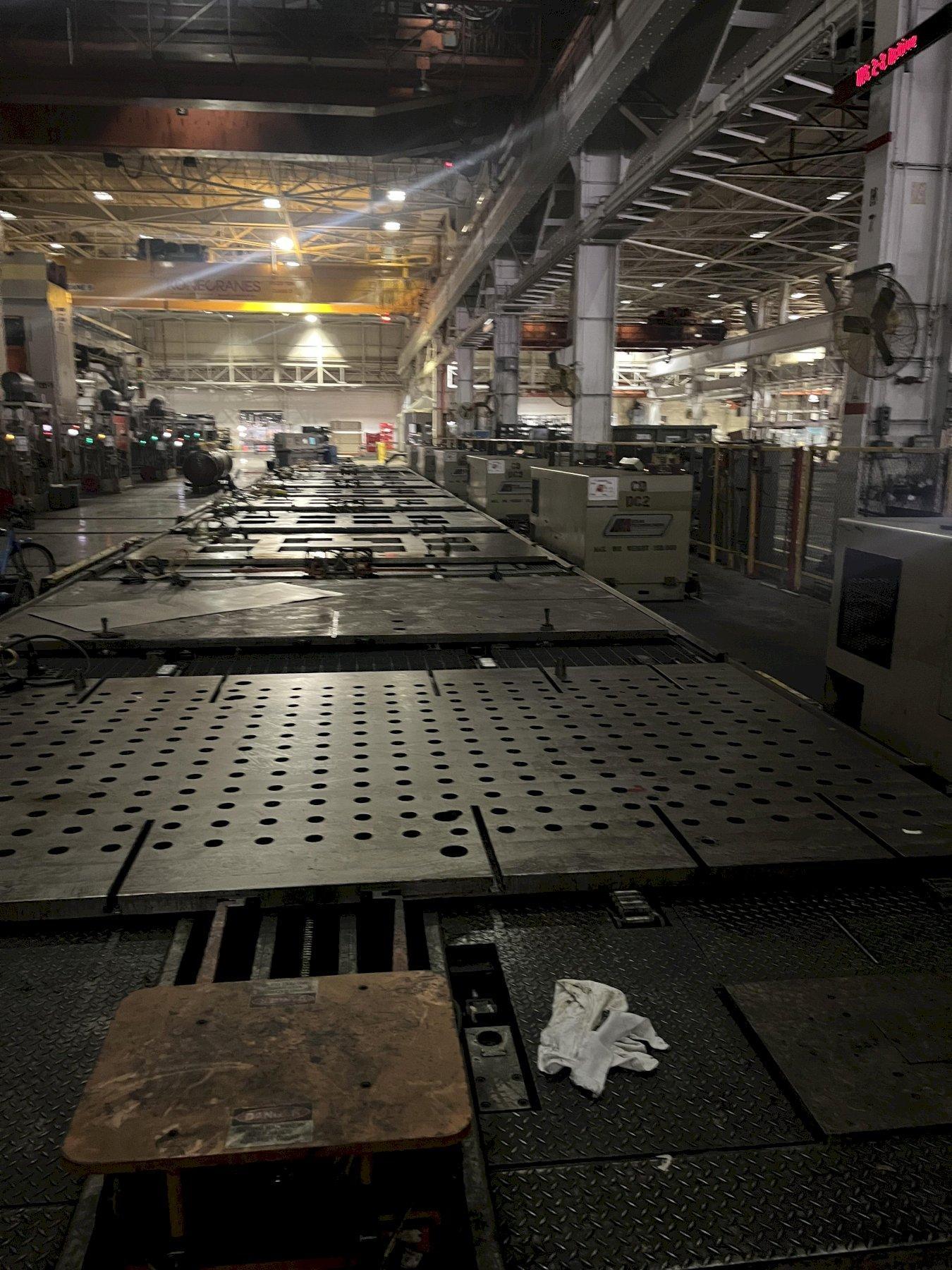

Two 180" x 96" rolling bolsters with atlas automated die change 150,000lbs capacity
Kuka Robot arm pick and place robot
Full front of line blank loading automation
12 Quick die clamps.

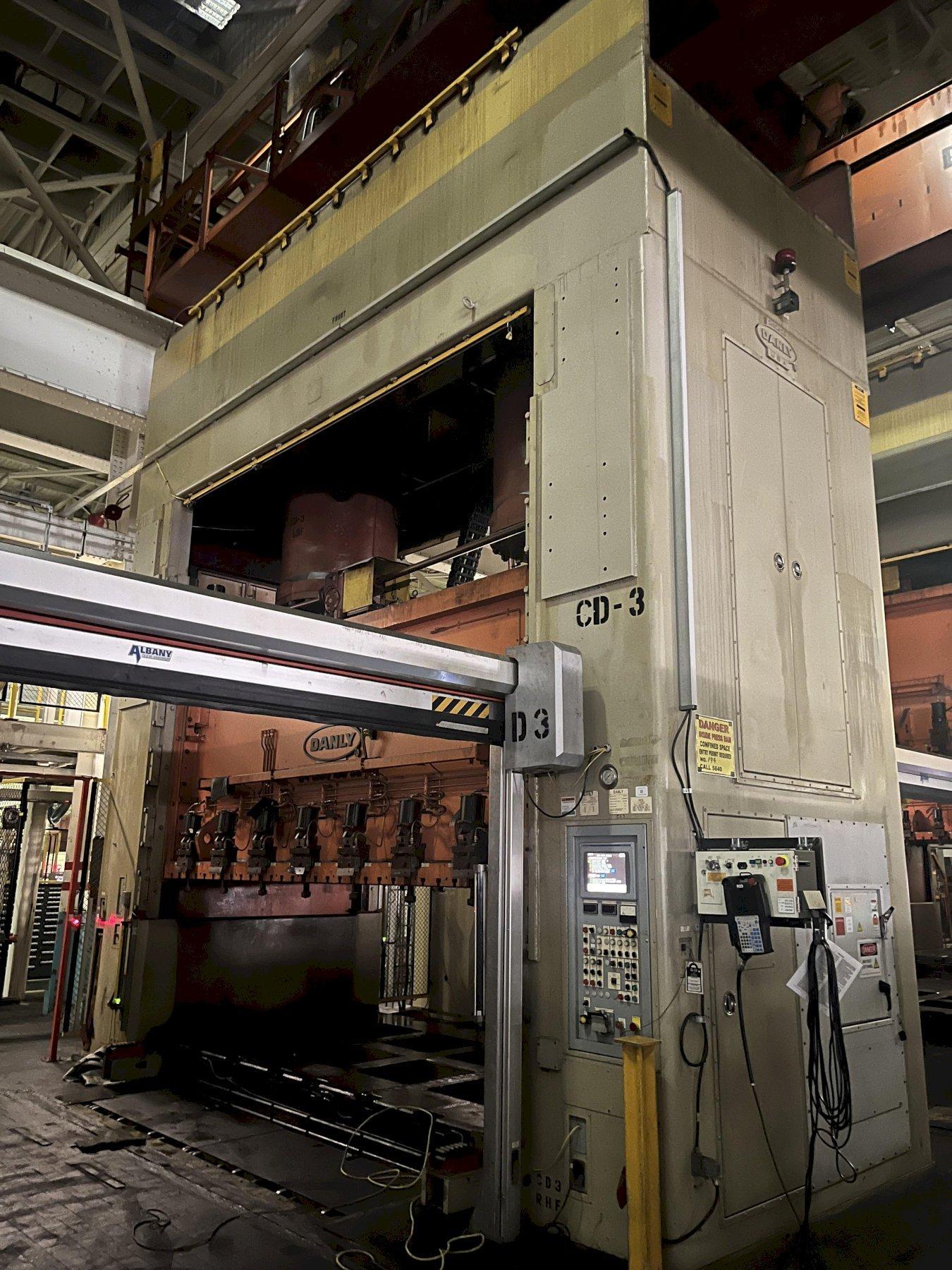

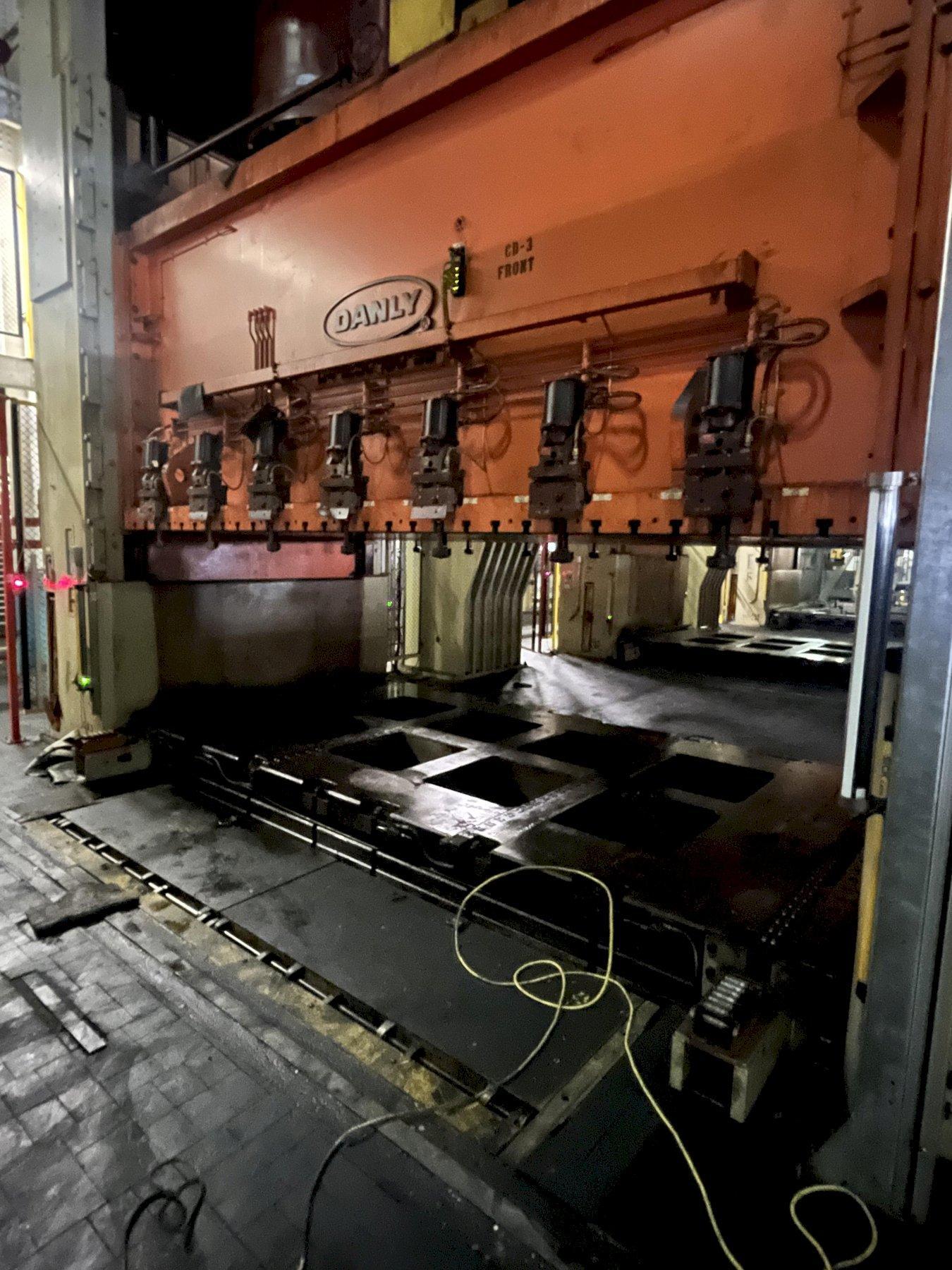

(4)-1000 tons Danly line presses model U4-1000-180-96- (4 presses as part of the line)
36" Stroke,
30" slide adjustment
84" shut height ( stroke down Adjustment up from bottom of slide to bed
16 SPM
full Automation with Atlas Die change
Kuka robotic pick and place load and unload arm
Equipped with:
Air clutch & Brake
Air counterbalances
Atlas automation die change rolling
Line in plant under power Midwest United States .
Specifications Subject To Verification; Subject To Prior Sale & Price Change!
