224 Ton Reis 4 Post Hydraulic Spotting Press, Model TUS-180 OK-200, 71" x 98" Roll Out Table, Tilt Down Ram, 106" STR, 118" DLO, 1994

Brand
REIS

Model
TUS-180 OK-200

Stock #
7636

Condition
Used

Year
1994

Specifications

Equipped With

Preliminary Specifications

Reis 4 Post Hydraulic Spotting Press with Roll Out Table & Tilt Down Ram
Model: TUS 180 OK-200
Year: 1994

224 Ton Capacity
106" Stroke
118" Daylight
71" LR x 98" FB Table
71" LR x 98" FB Ram Platen (Tilt Down)
74" LR Opening Between Columns
67,442 lbs Table Capacity
26,977 lbs Slide Platen Capacity

Equipped With

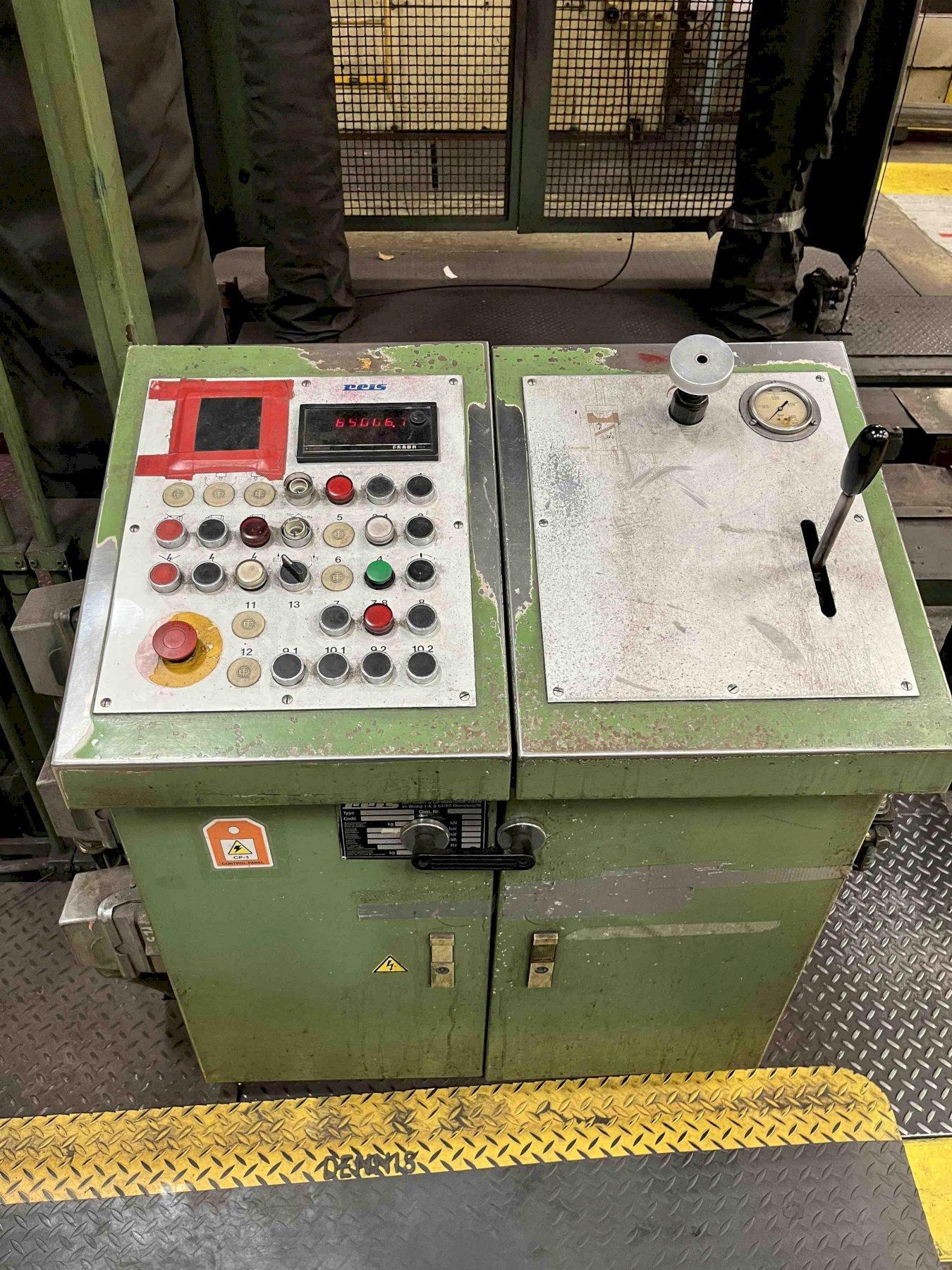

Press Controls Console
Top Mounted Hydraulics

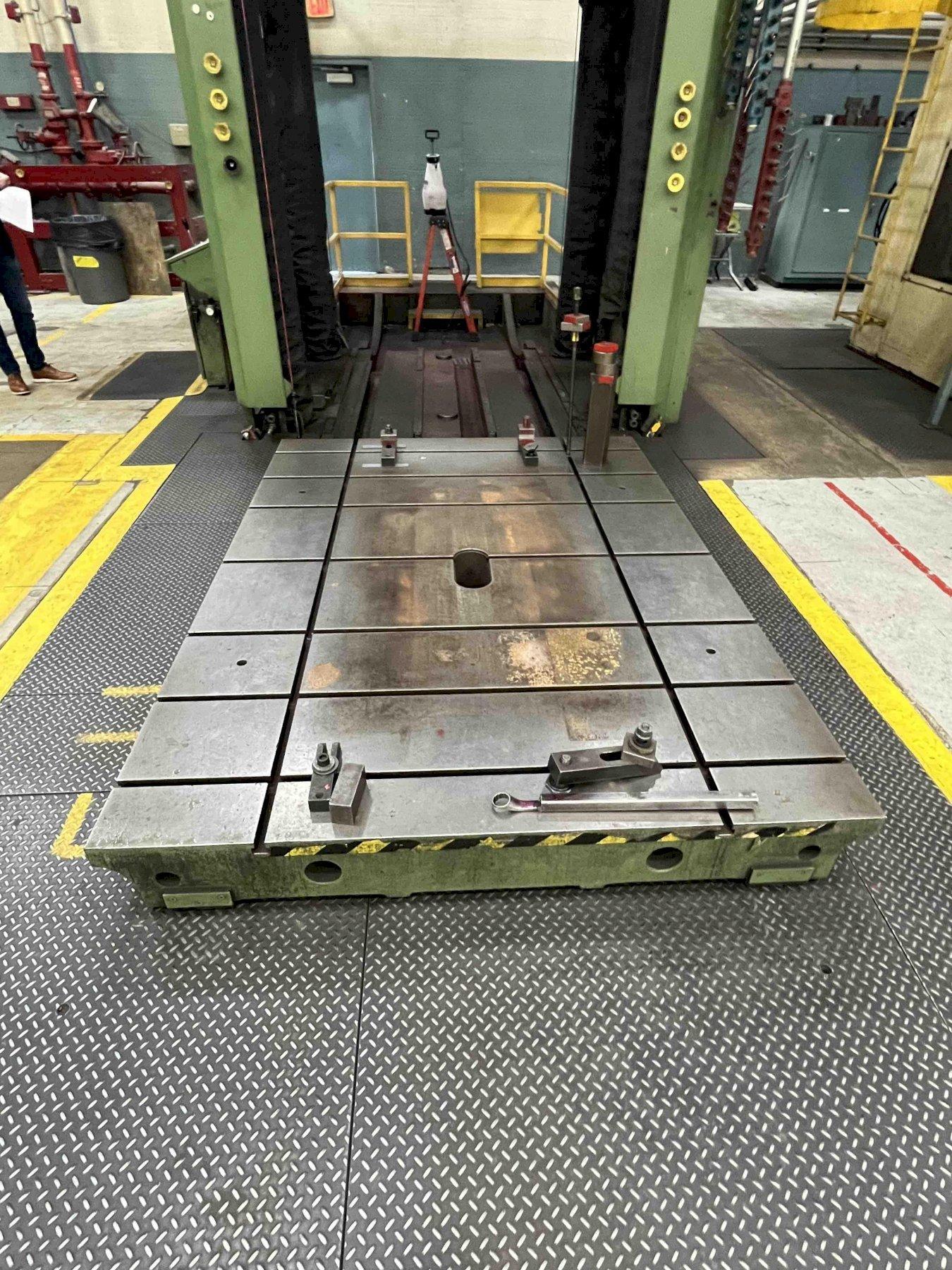

Roll Out Bolster (Table)
Swivel Down Ram Platen (180°)
Power 480V / 3 PH / 60 Hz
Motor 25.3 Kw (approx. 33 HP) 41 Amps / 1755 RPM
Oil Reservoir Capacity 153 Gallons

**Press can be installed in Pit or as Floor Standing Press**

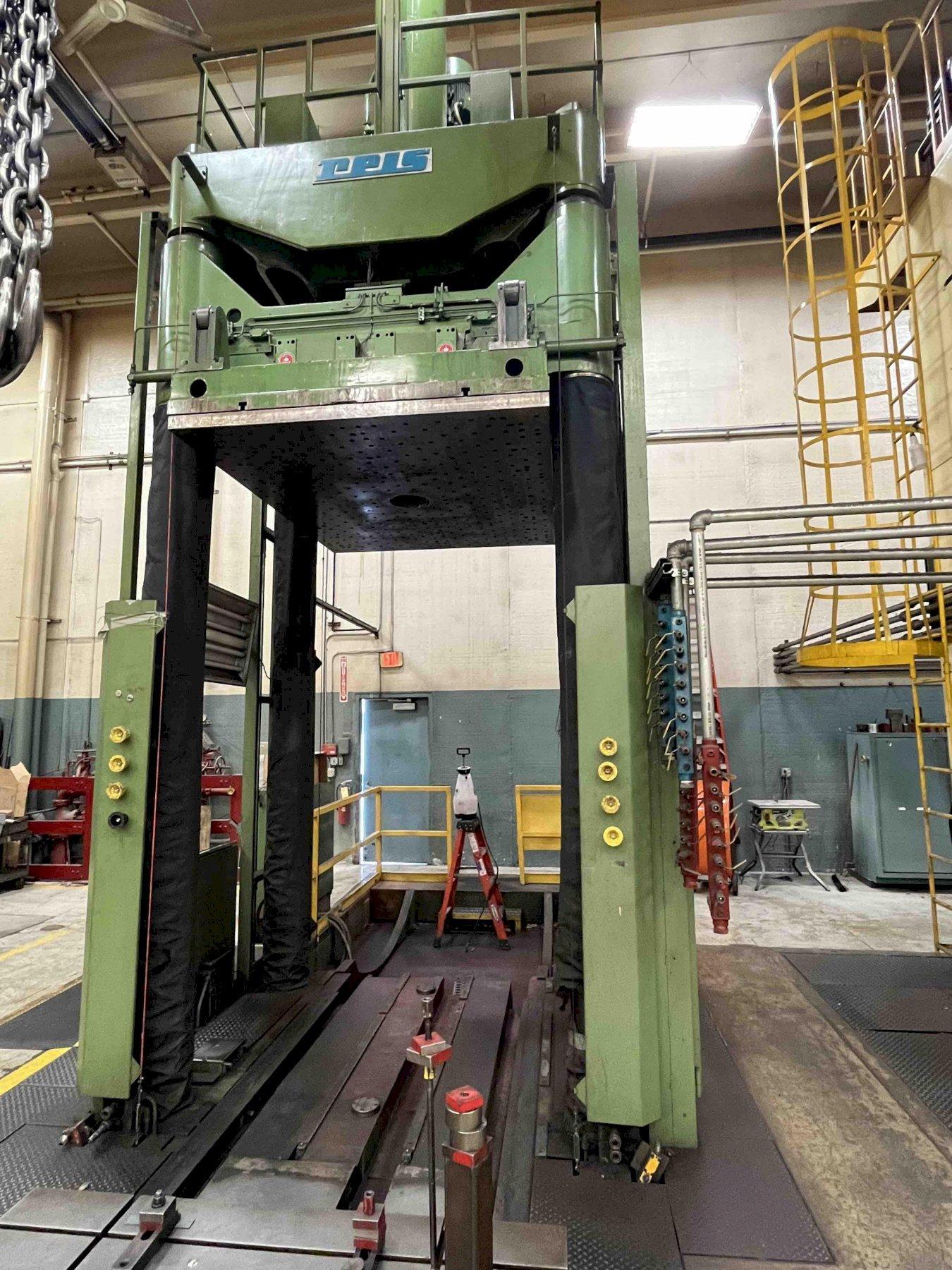

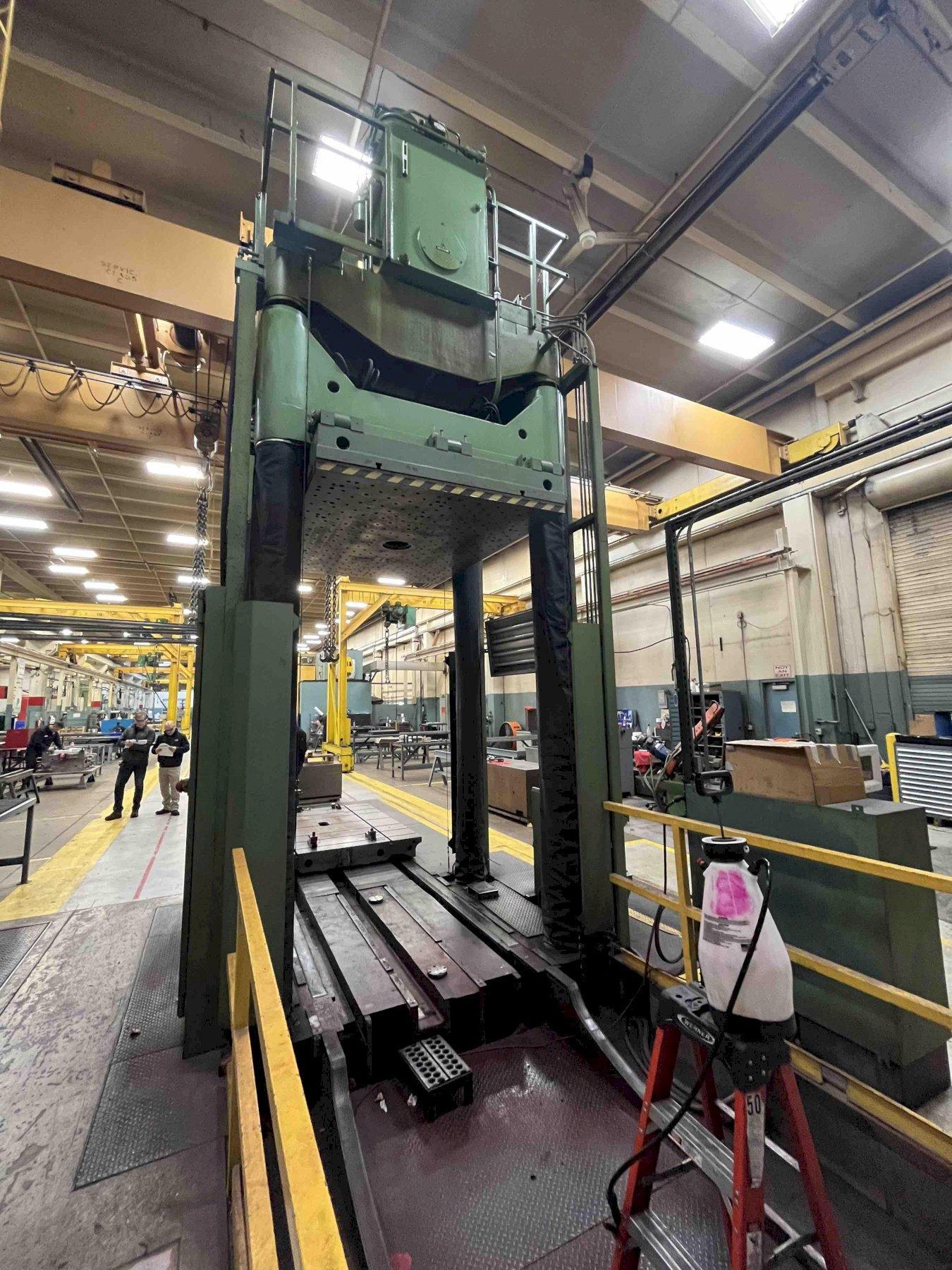

Pictured in Plant with Pit
Pit at 27.5" Depth
Above Floor 233.8" H

Floor Standing - Above Floor 261.5"

Approx. Floor Space 323" LR x 134" FB
Estimated Weight 103,617 lbs

Available Immediately, Available for Inspection

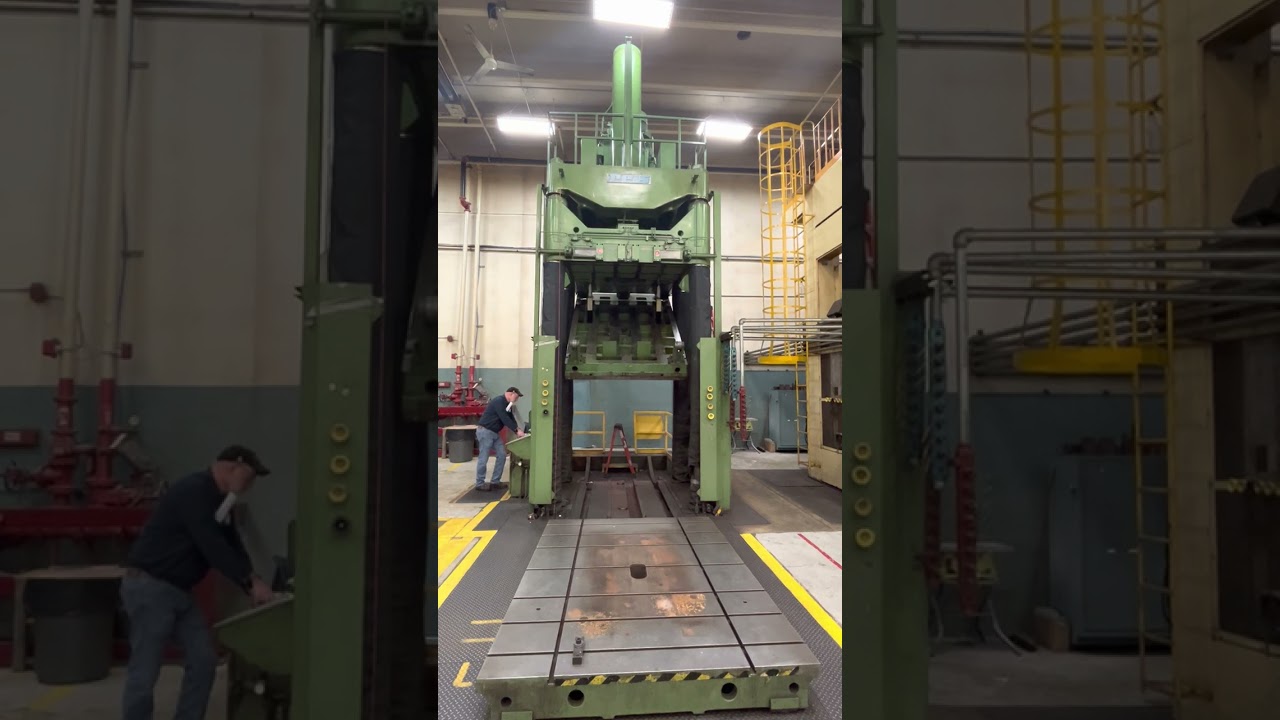

Click on Video Links Below & General Assembly Drawing

Specifications Subject to Verification; Subject To Prior Sale & Price Change
