Presses For Industry

PRELIMINARY SPECIFICATIONS

NEW IN 1970
22 TON CAPACITY
2.5" STROKE
9.25" SHUT HEIGHT
2.25" ADJUSTMENT
23.5" X 14" BED AREA
10.25" X 8" RAM AREA
175-350 SPM (VARIABLE)

EQUIPPED WITH:
3HP DRIVE MOTOR
AIR CLUTCH & BRAKE
BIJUR AUTO LUBE

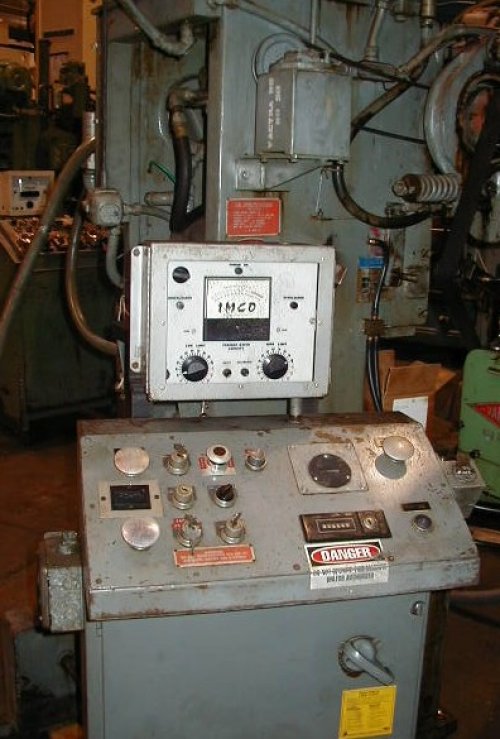

CONTROL CONSOLE
DUAL PALM BUTTONS
INCH, SINGLE, CONTINUOUS
VAMCO VAN MARK 3
ROLL FEED
IMCO LOAD MONITOR

APPROX O.A. WEIGHT: 3800LBS
APPROX O.A. DIMENSIONS: 42" X 67" X 86"H
