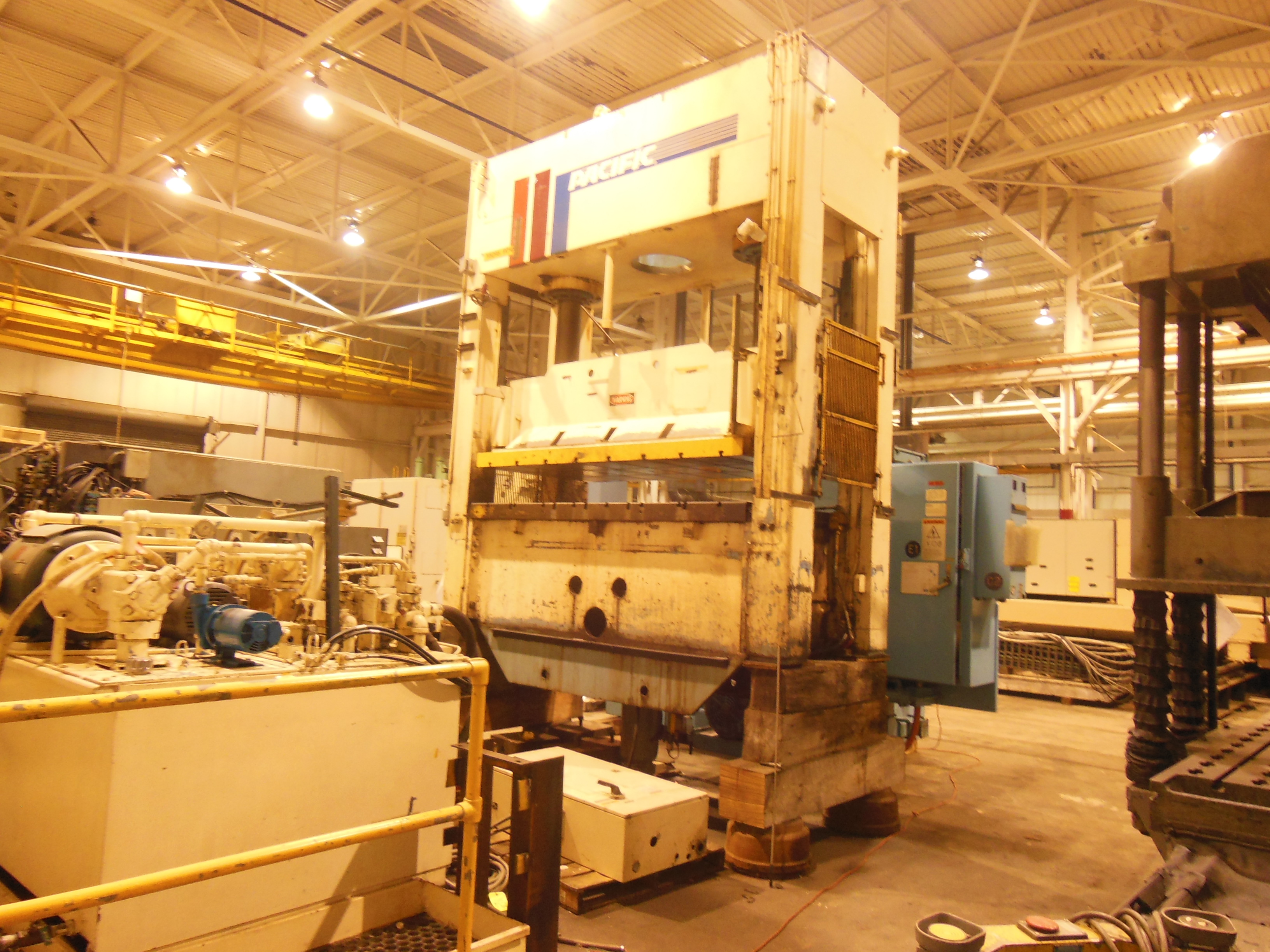

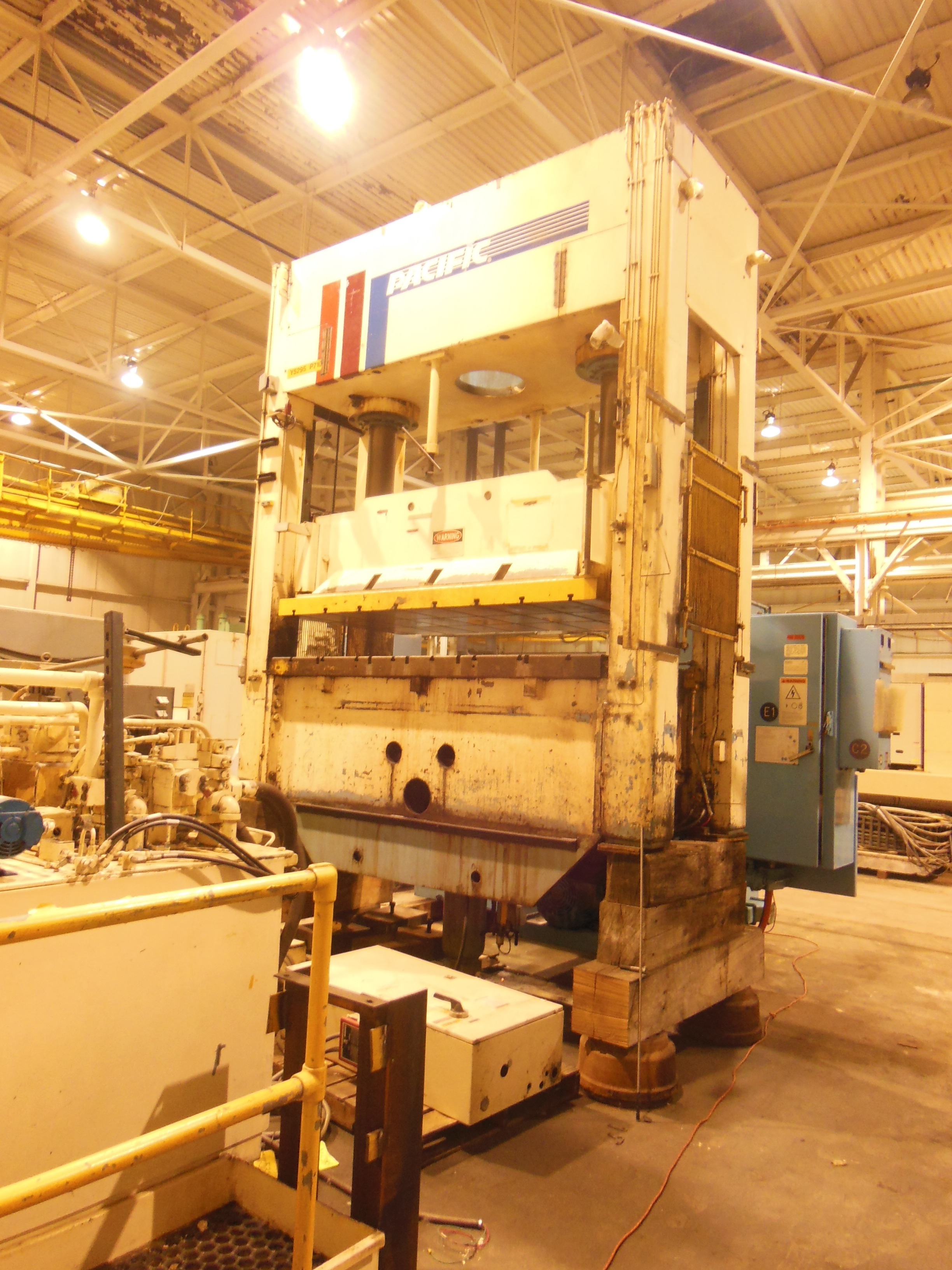

200 TON PACIFIC STRAIGHT SIDE GIB GUIDED PRESS, MODEL 200-D8-48-96, 24″Str, 36″DLO, 26″ WDO, 96″X 48 BA, 335IPM ADV, PROG. HYD. CUSH,1992

200 TON PACIFIC STRAIGHT SIDE GIB GUIDED PRESS, MODEL 200-D8-48-96, 24"Str, 36"DLO, 26" WDO, 96"X 48 BA, 335IPM ADV, PROG. HYD. CUSH,1992

Brand
PACIFIC

Model
200-D8-48-96

Type
Presses, Hydraulic

Stock #
5355

Condition
Good

Year
1992

Request a Quote

Specifications

Equipped With

PRELIMINARY SPECIFICATIONS:

200 TONS CAPACITY
24" STROKE OF SLIDE
36" DAYLIGHT OPEN
12" DAYLIGHT CLOSED
26" WINDOWS
96" LR X 48" FB BED

SPEEDS:

335 IPM RAPID ADVANCE
0-35IPM PRESSING SPEEDS
289 IPM RAPID RETRACT

EQUIPMENT & FEATURES:

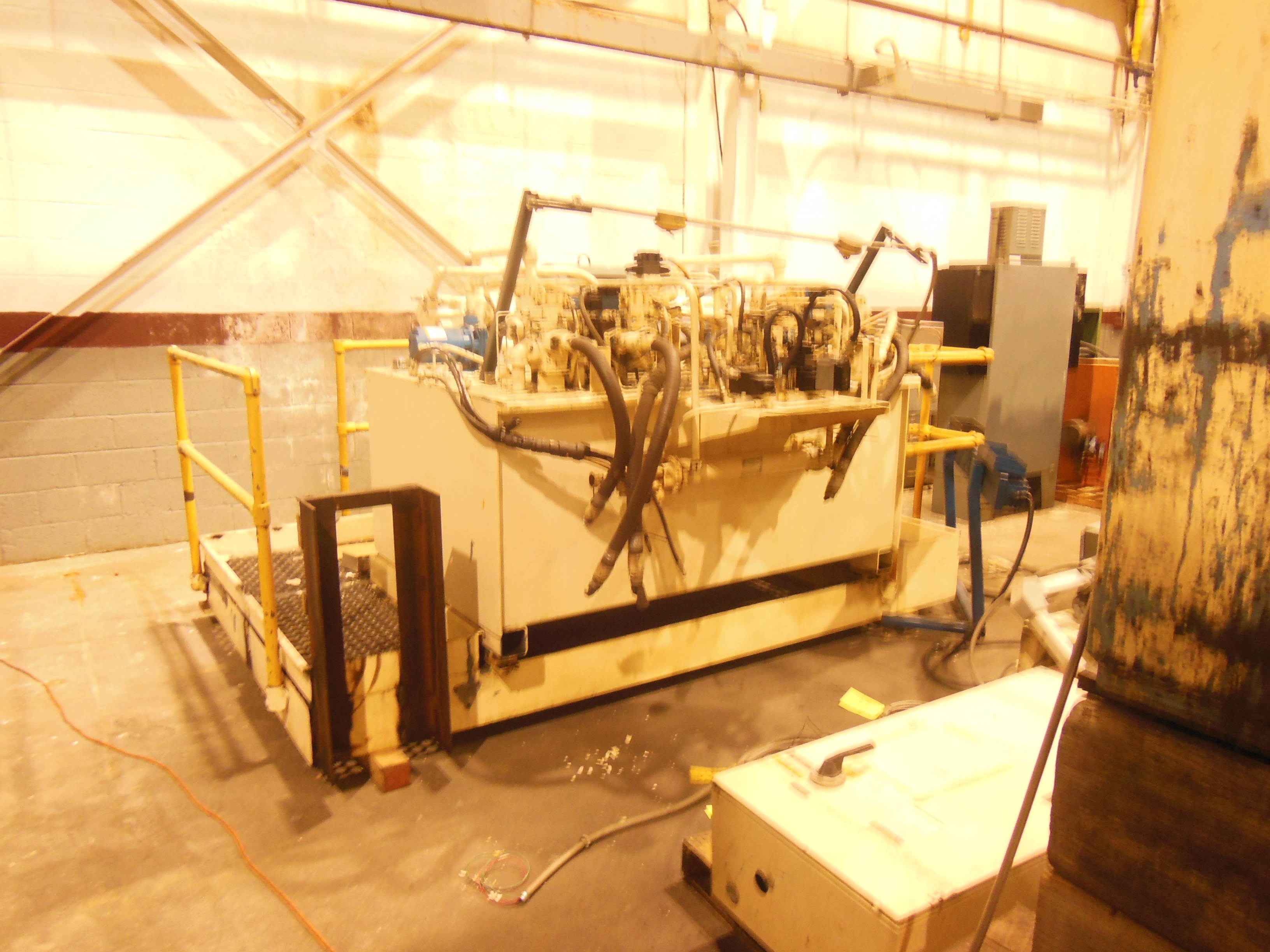

TOP MOUNTED SELF CONTAINED HYD PAK
T-SLOTTED RAM AND BOLSTER
GIBB GUIDED RAM
HYDRAULIC DIE CUSHION
(2) PROGRAMMABLE CUSHION CONTROL - FOR TONNAGE & HEIGHT
PROGRAMMABLE DRAWING SPEEDS
ALLEN BRADLEY PLC CONTROL

MAIN HYDRAULIC PUMP MOTOR
40 HP
1765 RPM
230/460 V/3 PHASE

APPROXIMATE OVERALL DIMENSIONS:

APPROX O.A. WEIGHT: 60,000LBS
APPROX O.A. DIMENSIONS: 168"LR X 156"FB X 192"T X 54"PIT

VERY GOOD LATE MODEL MACHINE. PLEASE DON'T HESITATE TO CALL FOR AN EARLY INSPECTION.

Specifications Subject to Verification; Subject to Prior Sale and Price Change
