Specifications
Equipped With
STANDARD CATALOG SPECIFICATIONS
------------------------------------------

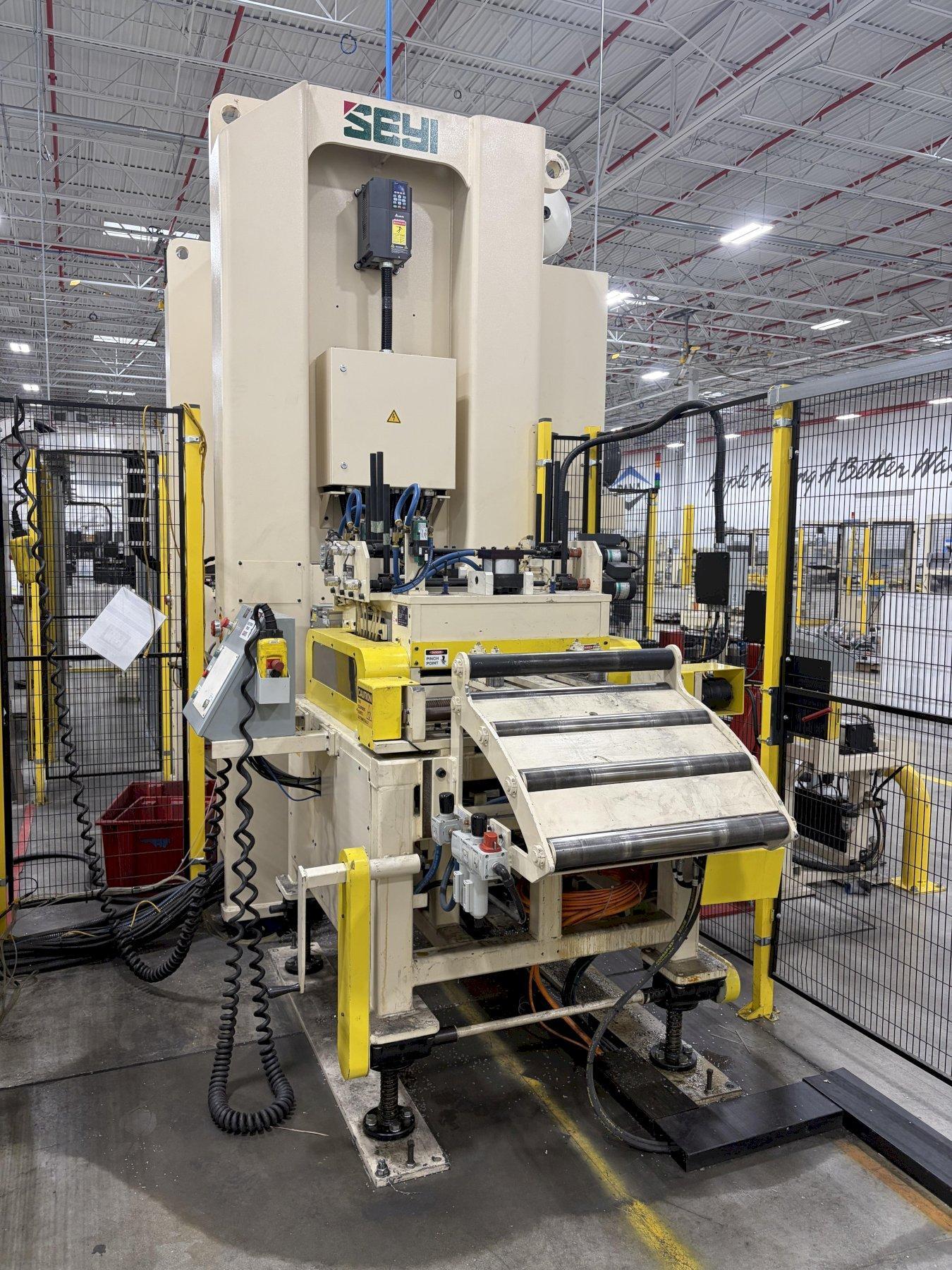

Model SNS2-176
New 2022 Delivered 2023
176 U.S tons
5.12" stroke
40-88 Spm Vari speed
3.94" Motorized adjustment
61.42" LR x 25.59"FB Slide Area ( T-SLotted)
72.83" LR x 29.92"FB Bed and bolster area (T-slotted )
Equipment & Features
----------------------
AIr clutch & Brake
AIr counter balances

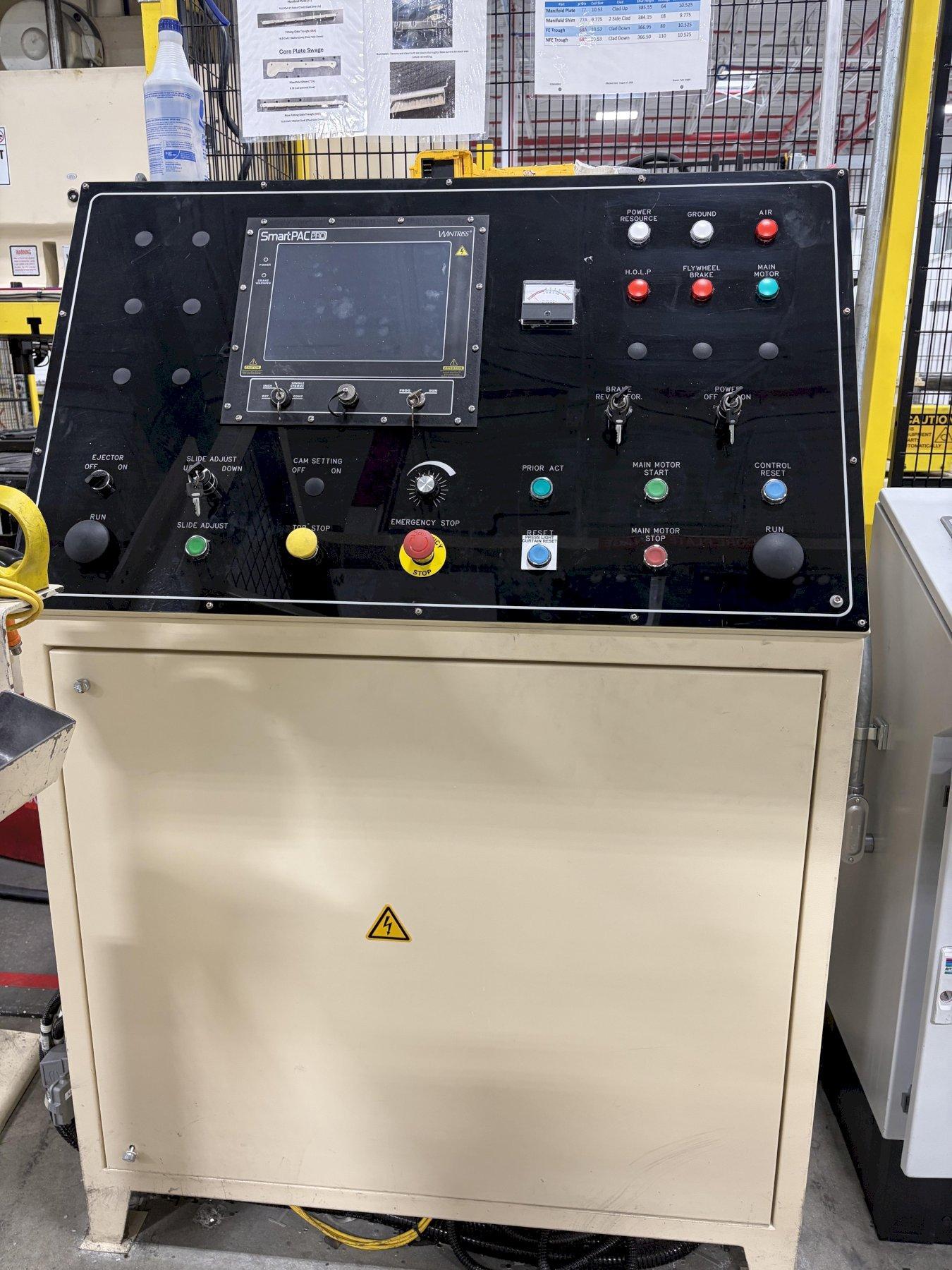

WIntress Smart Pac Pro series on control console
T-stand Palm station
Pax auto die oiler
LInear Small press Die Changer up to 5000# lbs cap.

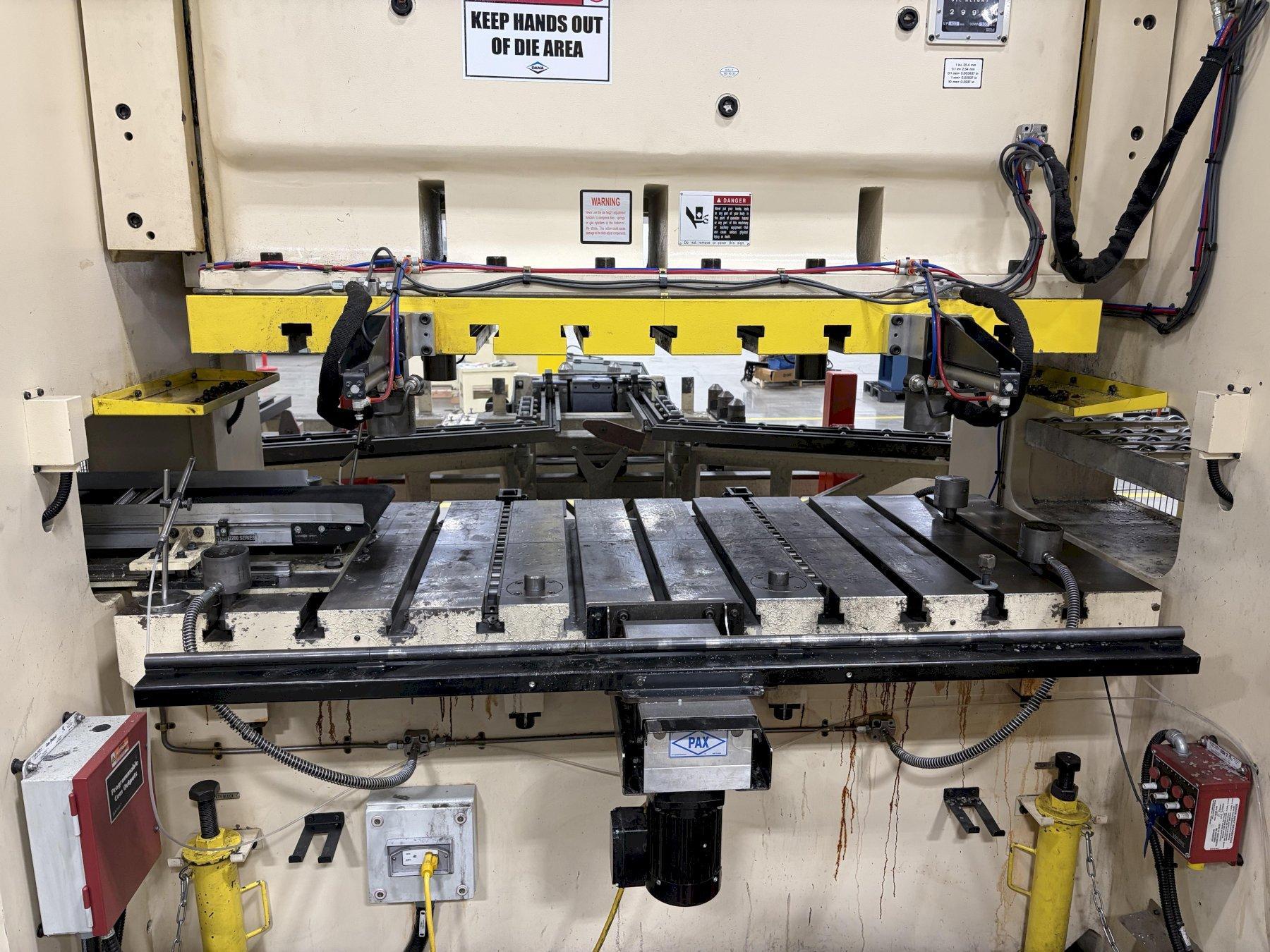

6.5" Thick T-slotted Bolster plate
T-slotted Ram
Three knockouts in Ram
Vibro pads
Programmable Cam outputs
Inch/ single / Continuous selector
25.9" Wide x 13.5" high window openings.
Floor standing
Motor and Controls.
138" (11'5") over all height, Est, 8'8"wide x 7'6' FB

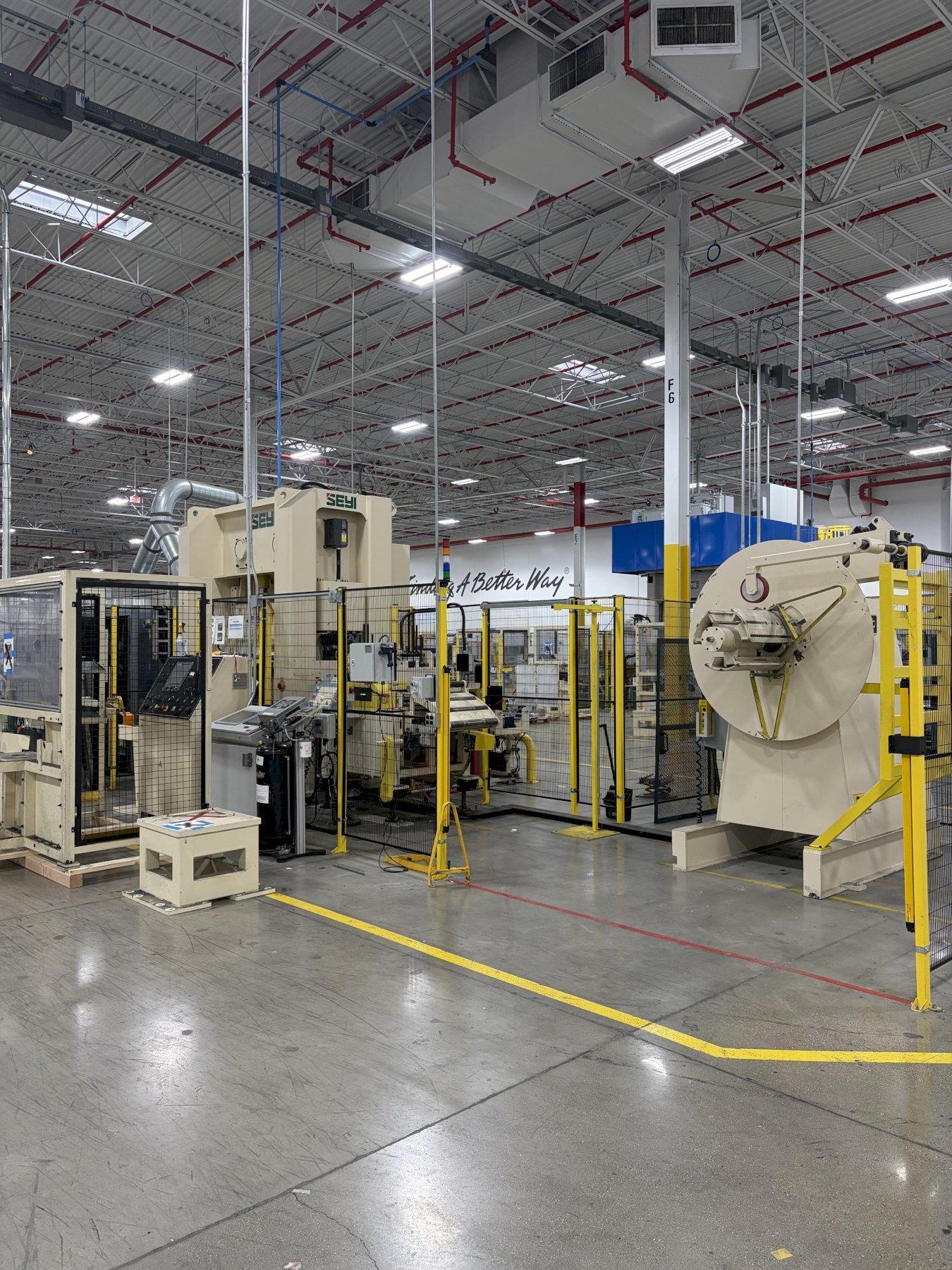

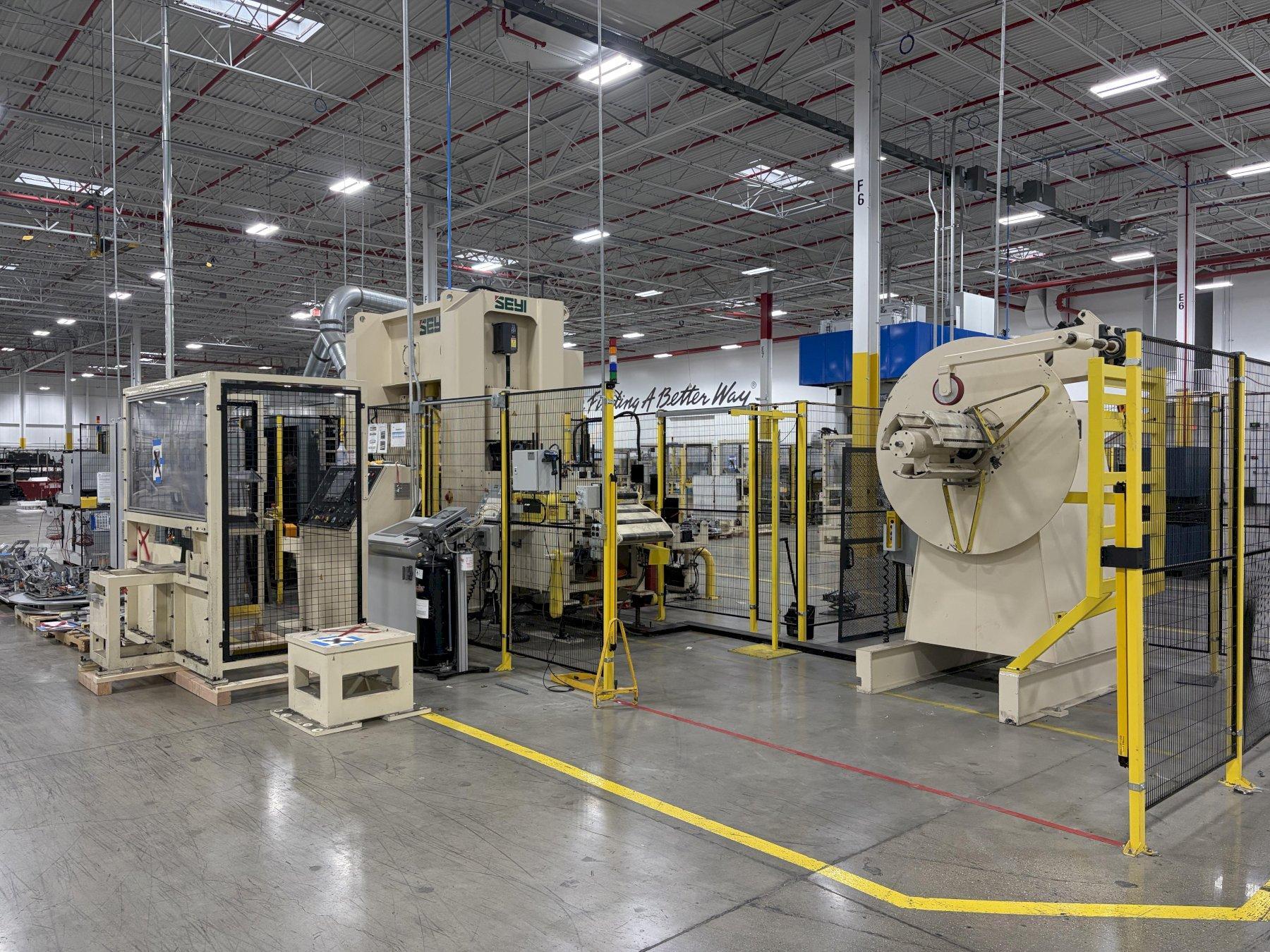

A 24" New 2023 Colt model CHDR-800-24,feed line is available for additional charge. the line was running on this press. 24" wide Motorized single end reel , Keepers, 8,000 lbs cap, 24" x 60" O.D.,Overarm,pendent control, Colt model CERFS-25-24 Servo Feeder, 24" @ 40KSI,0.100"max thickness, min 0.015". with photo eye and Unist Smart flow sheet mister oiler. ( can be purchased with press at additional cost) Stock 7722.
Specifications Subject to Verification; Subject To Prior Sale & Price Change
This is a rare offering. If your in the market for a new press at a Fraction on new this is the press. Please don't hesitate to call for your early inspection.
