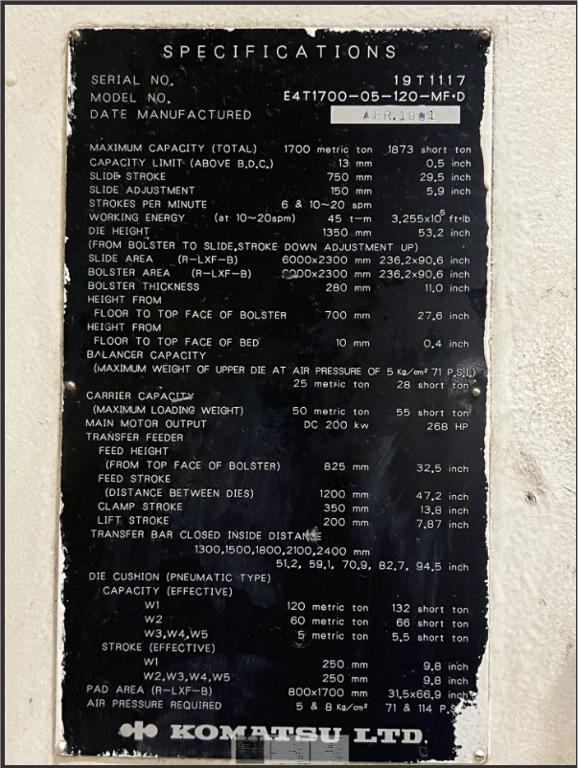

Preliminary Specifications

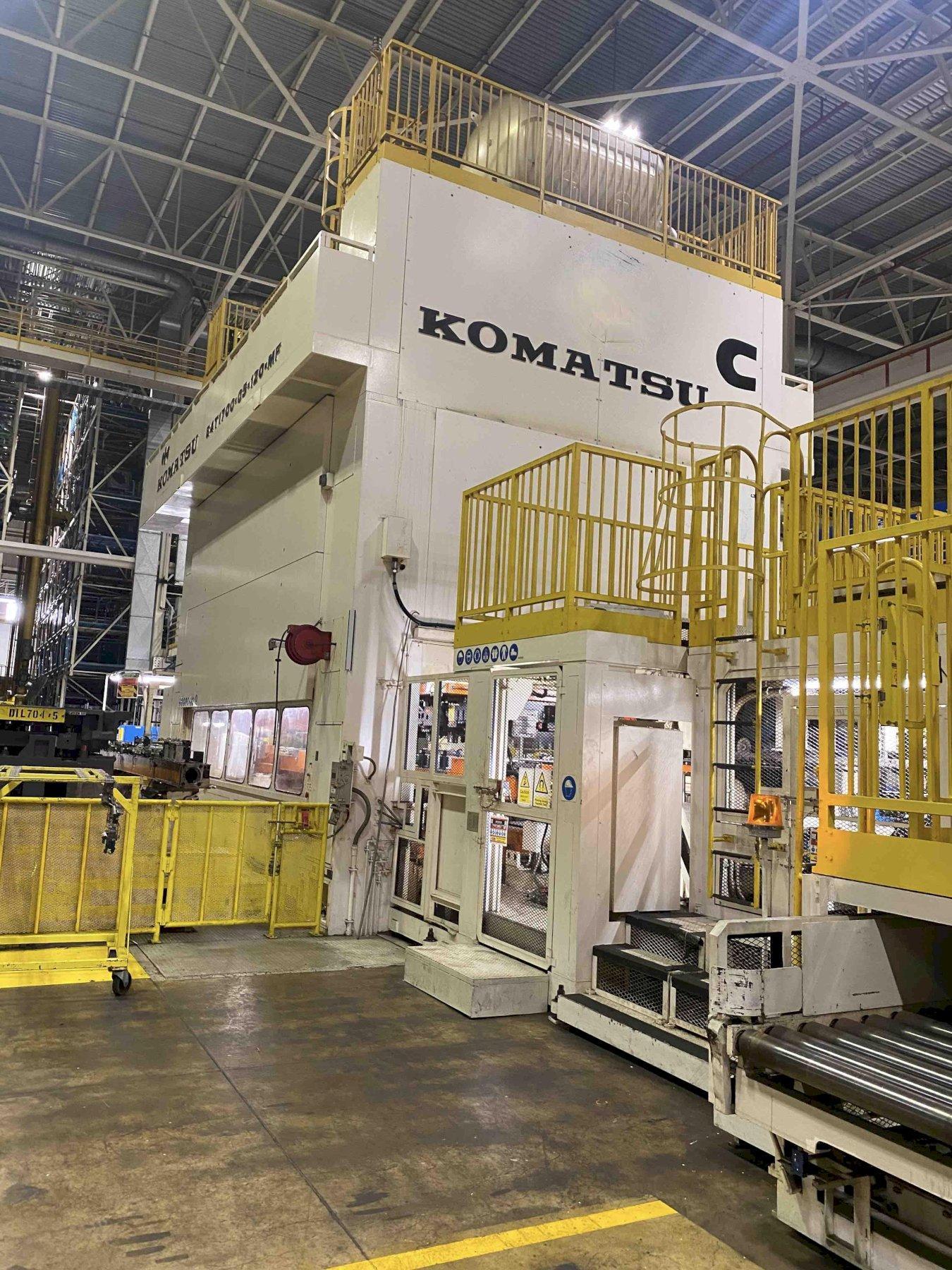

Komatsu Straight Side Transfer Press with Rolling Bolster
Model: E4T1700-05-120-MF
Year: 1991
1700 Metric Ton (1873 Short Ton)
750 mm Slide Stroke (29.5")
150 mm Slide Adjustment (5.9")
1350 mm Die Height (SDAU from Bolster) (53.2")
6000 mm x 2300 mm Slide Area (236.2" x 90.6")
6000 mm x 2300 mm Bolster Area (236.2" x 90.6")
280 mm Bolster Thickness (11.0")
700 mm Height from Floor to Top of Bolster (27.6")
Rolling Bolster
6 & 10-20 SPM
50 Metric Ton Carrier Capacity (55 Short Ton)
Main Motor 268 HP (DC 200 kw)
Transfer Feeder
825 mm Feed Height (From Top Face of Bolster) (32.5")
1200 mm Feed Stroke (Distance Between Dies) (47.2")
350 mm Clamp Stroke (13.8")
200 mm Lift Stroke (7.87")
Transfer Bar Closed Inside Distance
1300, 1500, 1800, 2100, 2400 mm
51.2, 59.1, 70.9, 82.7, 94.5 inch
Die Cushion (Pneumatic Type)
(W1) 120 Metric Ton (132 Short Ton)
(W2) 60 Metric Ton (66 Short Ton)
(W3, W4, W5) 5 Metric Ton (5.5 Short Ton)
250 mm Stroke (9.8")
800 x 1700 mm Pad Area (31.5" x 66.9")

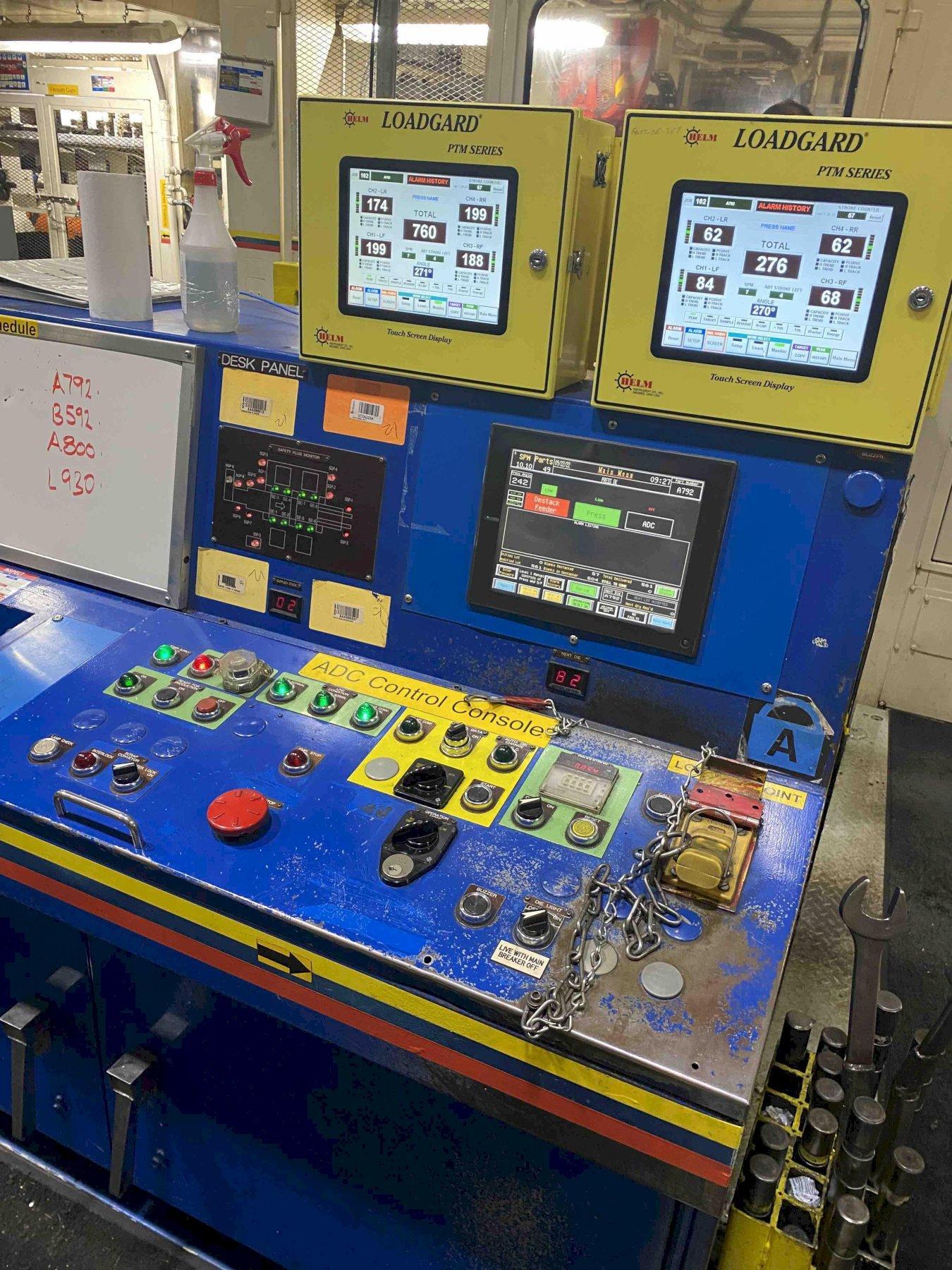

Press Control Console
Available for Inspection by Appointment, Available immediately
Specifications Subject To Verification; Subject To Prior Sale & Price Change
