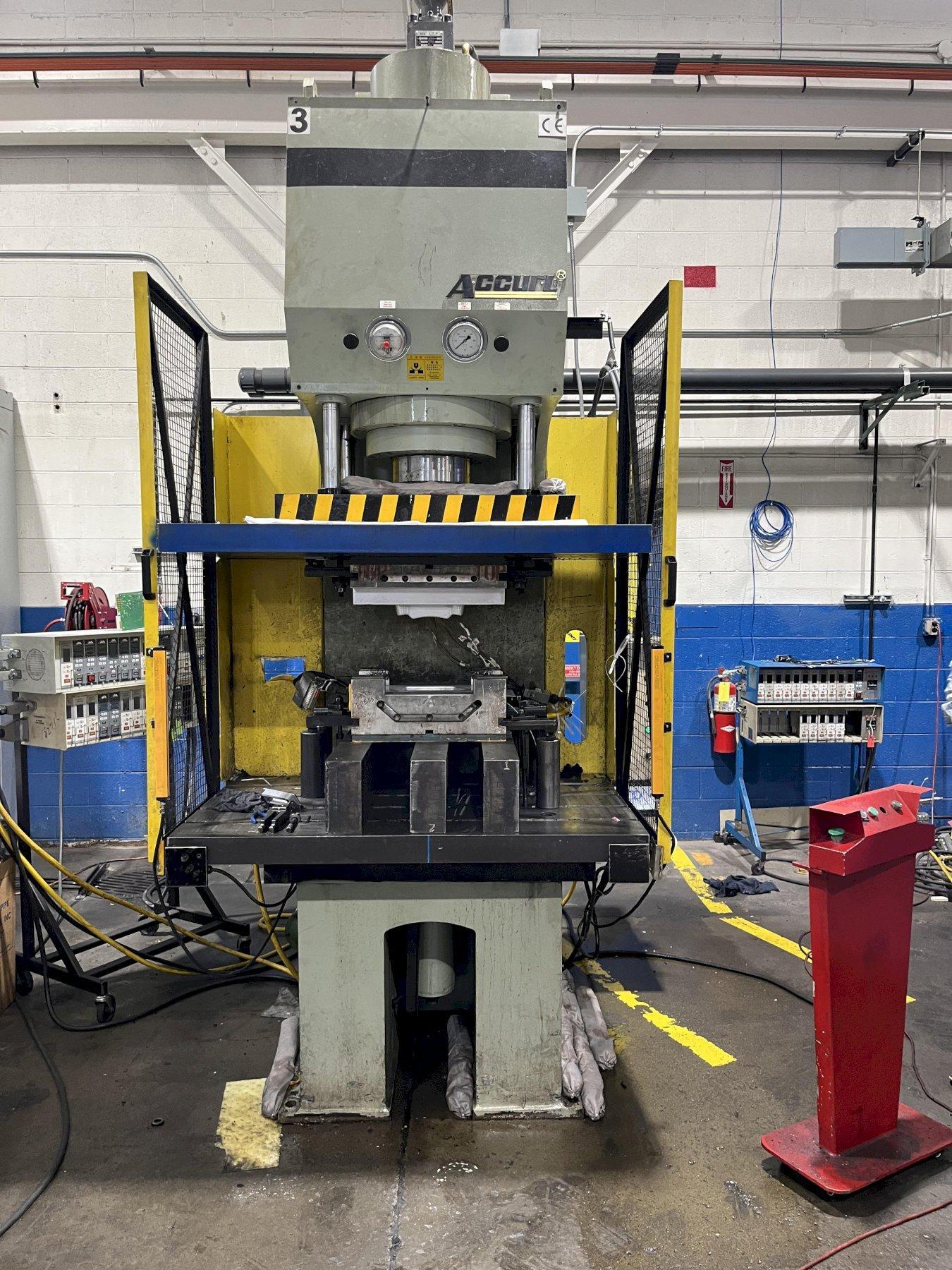

160 Ton Accurl Hydraulic C-Frame High Speed Press

176 Ton Accurl Hydraulic C-Frame downacting Gap frame Press with 4 post guided press.(2014) with bottom cusion

176 Ton Accurl Hydraulic C-Frame downacting Gap frame Press with 4 post guided press.(2014) with bottom cusion

Brand
ACCURL

Model
HPP-160T/16T

Type
Presses, Hydraulic

Stock #
7713

Condition
Used

Year
2014

Request a Quote

Specifications

Equipped With

ACCURL 176 TON GAP FRAME HIGH SPEED PRESS

Preliminary Specifications:

TON	176 T
BED L-R	39 in
BED F-B	29.5 in
STROKE	22 in
DAYLIGHT OPENING	44 in
SPEED	15 mmps
CUSHION	Yes
DIMENSIONS	72" x 72" x 144" tall
WEIGHT	26,500.00

Capacity: 176 US Tons
Return Force: 23 US Tons
Max Stroke: 22"
Daylight Opening: 44"
Bed Area: 39" lr x 25.5" fb (T-Slotted LR)
Bolster Plate: 53" lr x 33" fb x 3" thick (T-Slotted LR)
Ram Area: 35" lr x 25" fb (T-Slotted LR)
Ram Plate: 53" lr x 33" fb x 3" thick (T-Slotted LR)
Speeds:
Approach: 75 mm/s
Pressing: 7 - 15 mm/s
Return: 110 mm/s

EQUIPPED WITH:

4 Post Guided Ram
Dual Palm Buttons
Bottom Knock Out
Light Curtain (Front)
Touch Screen Interface

Standard Catalog Specifications (subject to verification)
