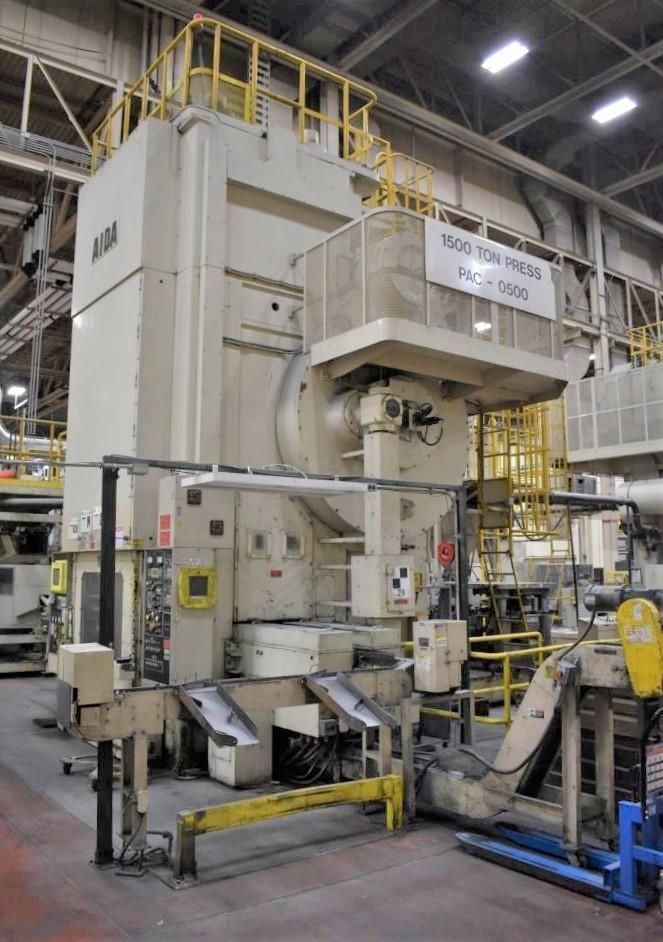

1500 Ton Aida Knuckle Joint Press, Model PK-1500, 9.84" STR, 44.09" SH, 1.18" ADJ, 47.24" x 47.24" Bed, 25-40 SPM Vari

Brand
AIDA

Model
PK-1500

Stock #
7596

Condition
Used

Year
1998

Specifications

Equipped With

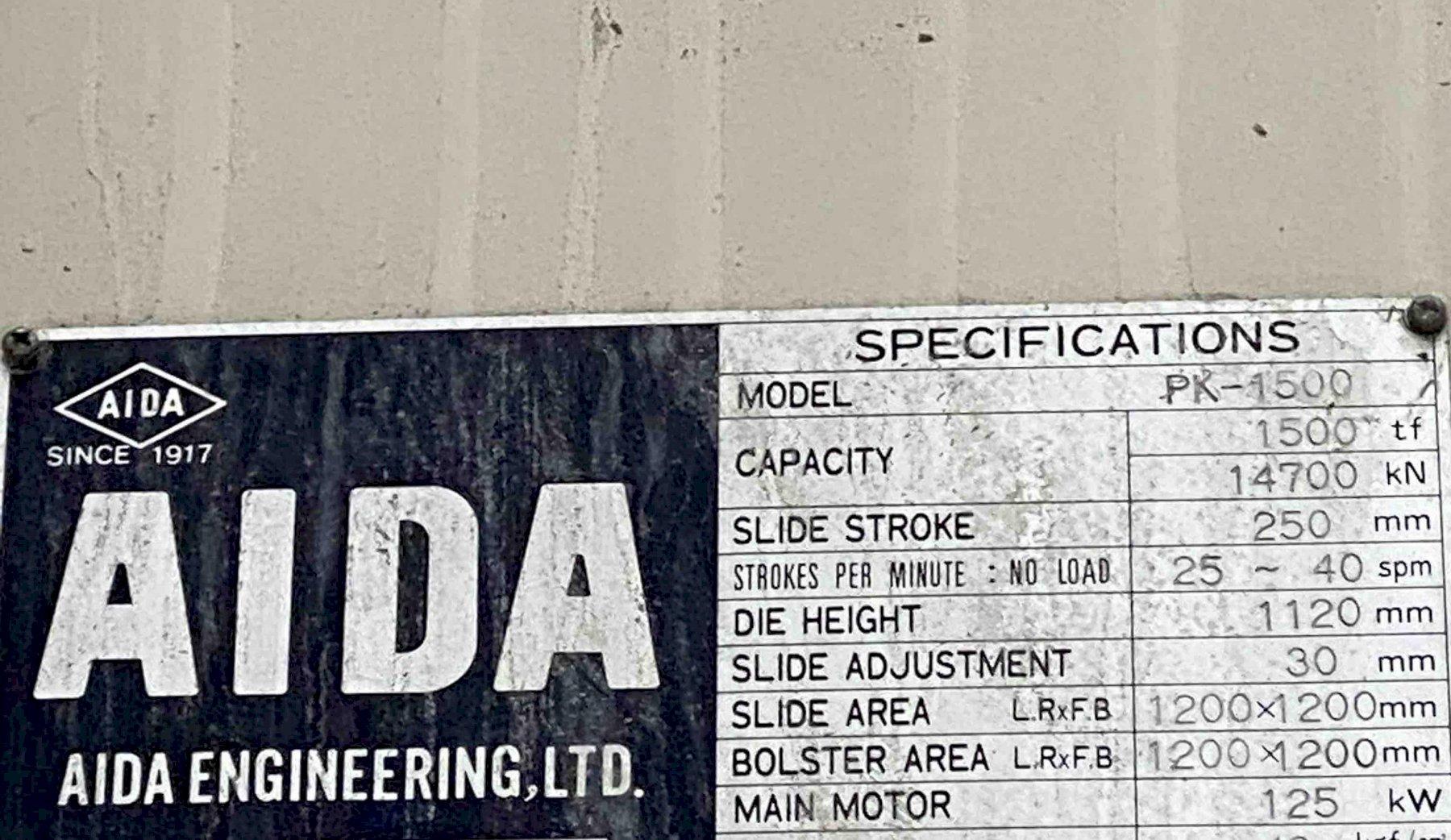

Preliminary Specifications

Aida Knuckle Motion 1 Point Press
Model: PK-1500

1500 Ton Force (14700 kN)
9.84" Slide Stroke (250 mm)
44.09" Die Height (1120 mm)
1.18" Slide Adjustment (30 mm)
47.24" LR x 47.24" FB Bolster Area (1200 mm X 1200 mm)
47.24" LR x 47.24" FB Slide Area (1200 mm X 1200 mm)
25-40 SPM Variable
11.81" Bolster Thickness (300 mm)
125 DC Main Motor
480V, 60 Hz, 3 PH

Bed Knockout Specifications
Mechanical Type
82 Short Ton Force Capacity (735 Kn)
2.95" Stroke (75 mm)
3.15" Dia. of Knockout Pin (80 mm Dia.)
2nd Stage (Center) Installed Stage
Attachment of Pin Lifter in Common with Bed Knockout Pin

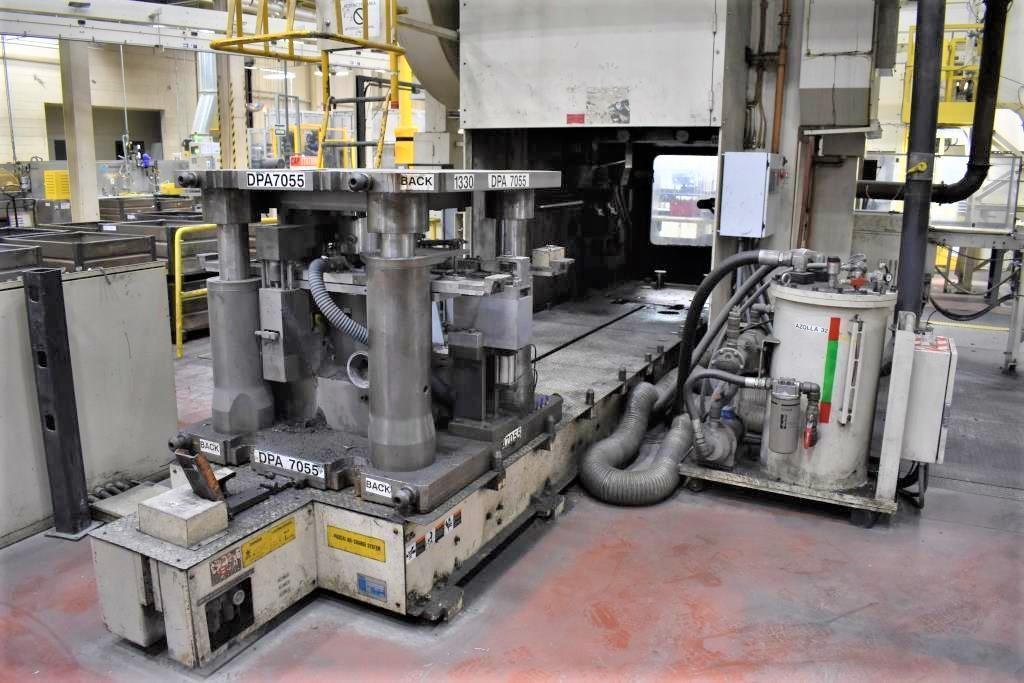

Transfer Feeder Specifications
2 Axis Transfer Device
7.87" Feed Stroke (200 mm)
3.93" Clamping Stroke Per One Side (100 mm)
9.84" At Clamp Inside Distance of Feed Bars
27.99" From Bolster Hieght of Feed Bar Bottom Face (711 mm)

Approx. Height Above Floor 292" To Top of Press (Not Sound Enclosure)
Estimated Weight 130 t (218,600 lbs) Crown # 38,000 LBS, Bed # 50,000 Lbs, SLide # 50,000 LBS, Uprights #80,000LB.

In Plant Under Power, Available For Inspection by Appointment

Specifications Subject To Verification; Subject To Prior Sale & Price Change
