STANDARD CATALOG SPECIFICATIONS

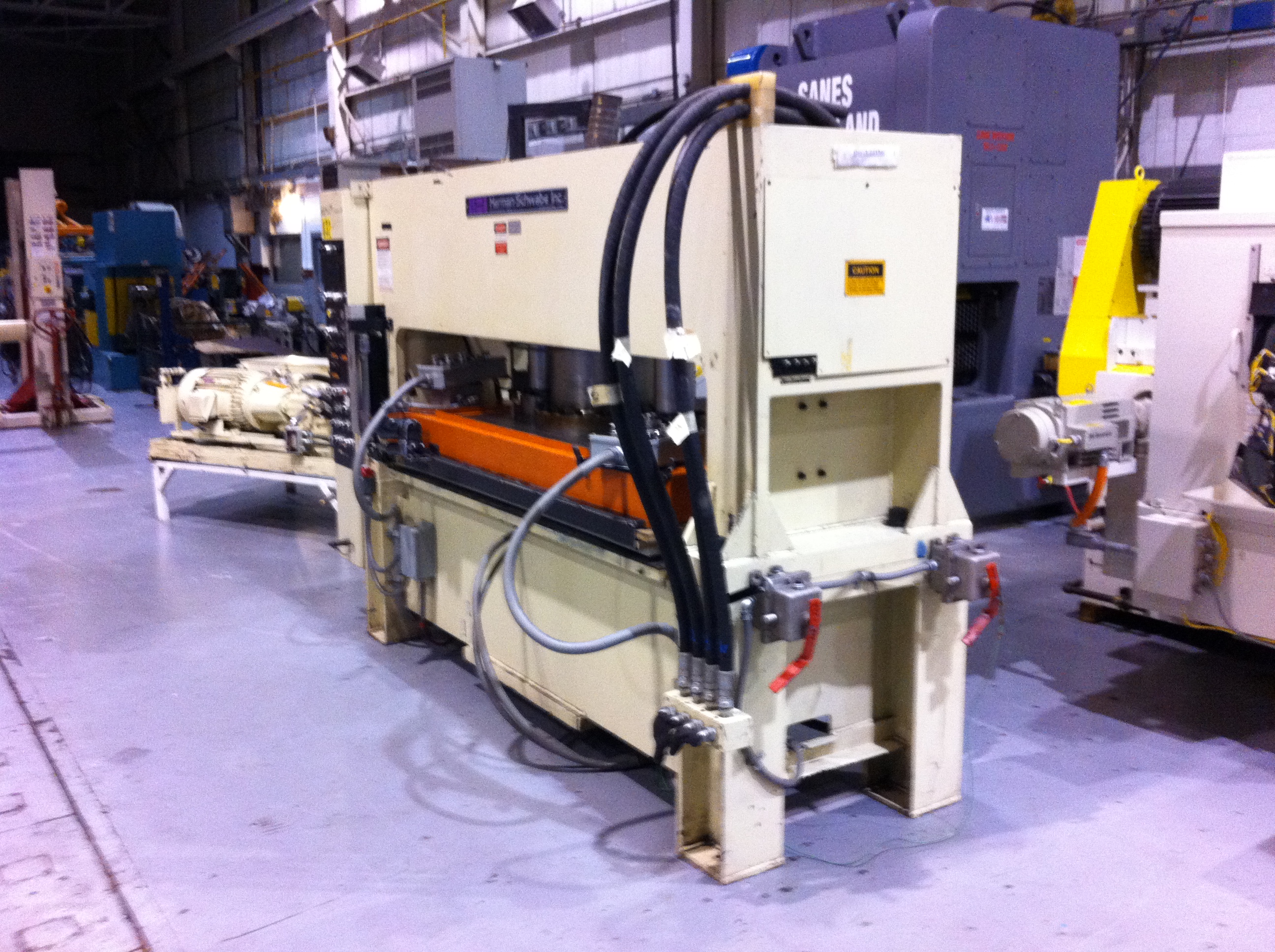

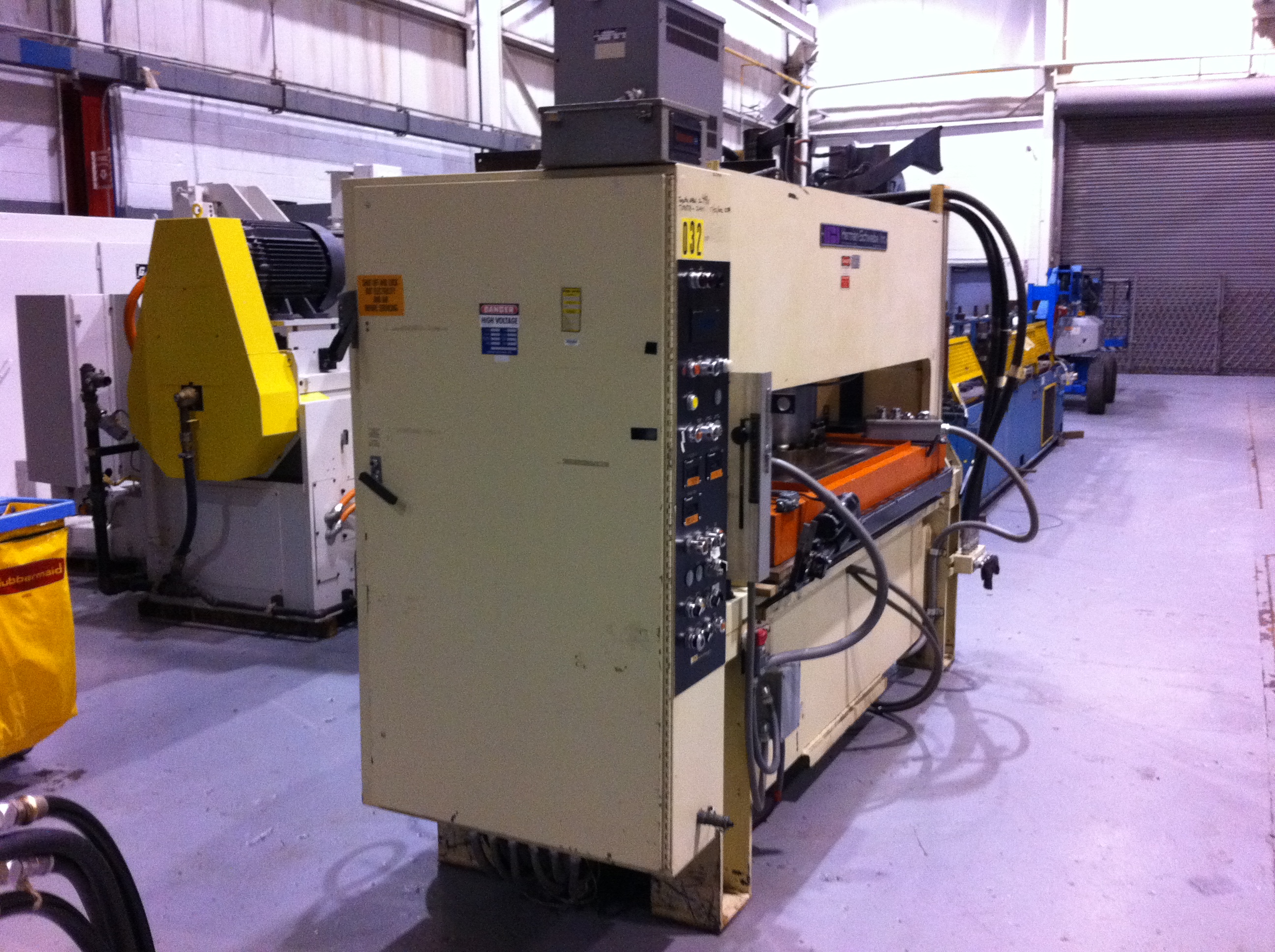

HERMAN SCHWABE HYD. DIE CUTTING PRESS
MODEL SR-150
1989

150 TON CAPACITY
8" STROKE
36.25" X 79" RAM AREA
36" X 83" BED AREA
89.5" BETWEEN HOUSINGS
32" FROM FLOOR TO TOP OF BED
3 PLUNGERS ON RAM
12" DAYLIGHT FROM BOTTOM OF SLIDE BOLSTER TO TOP OF BED PLATE

EQUIPMENT & FEATURES

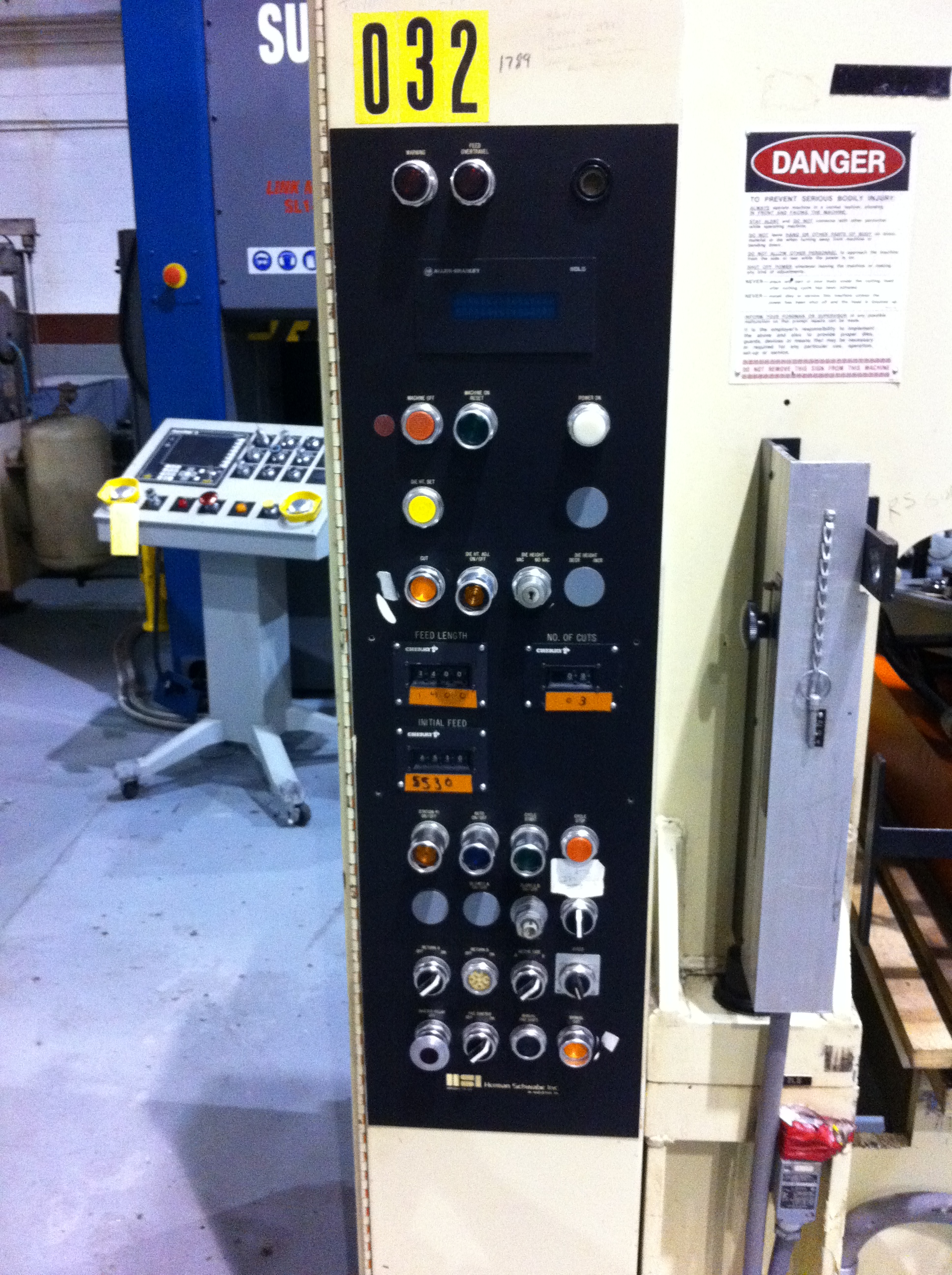

ALLEN BRADLEY DL5 CONTROL

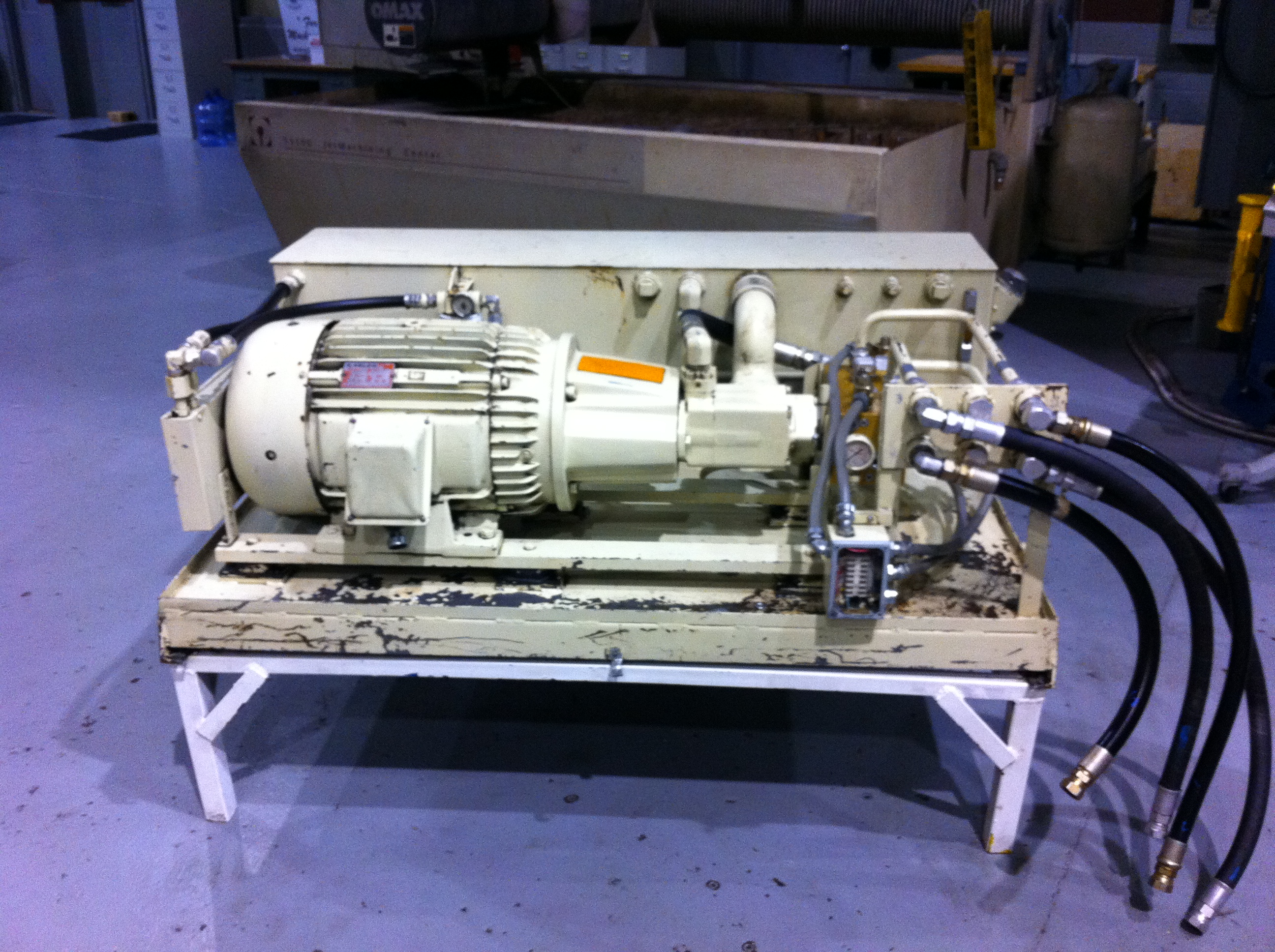

SEPARATE HYDRAULIC PACK W/25 HP MOTOR
HEAT EXCHANGER
COUNTERS
460 / 3 PHASE / 60 Hz

APPROXIMATE DIMENSIONS

PRESS:  50"FB X 12'5"LR X 98"T
HYDRAULIC PACK:  66" X 50" X 39"T
OVERALL APPROXIMATE WEIGHT 15,000 LBS.

THIS PRESS IS IN EXCELLENT SHAPE
PLEASE DO NOT HESITATE TO CONTACT YOUR SALESPERSON TODAY TO SCHEDULE A AN INSPECTION.
