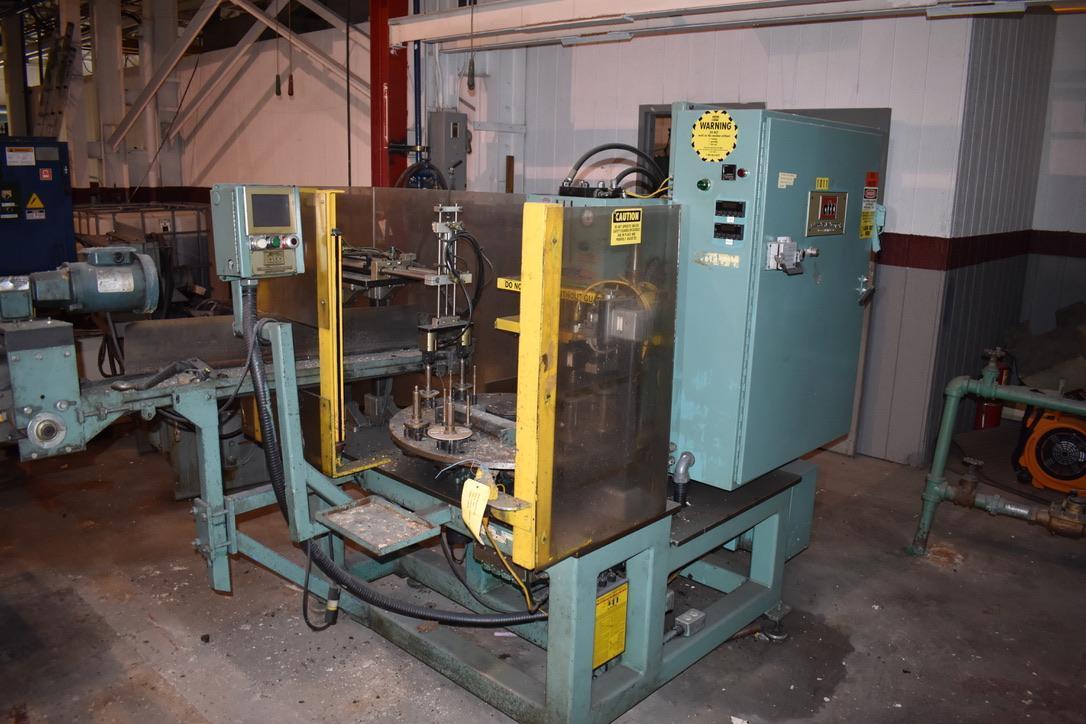

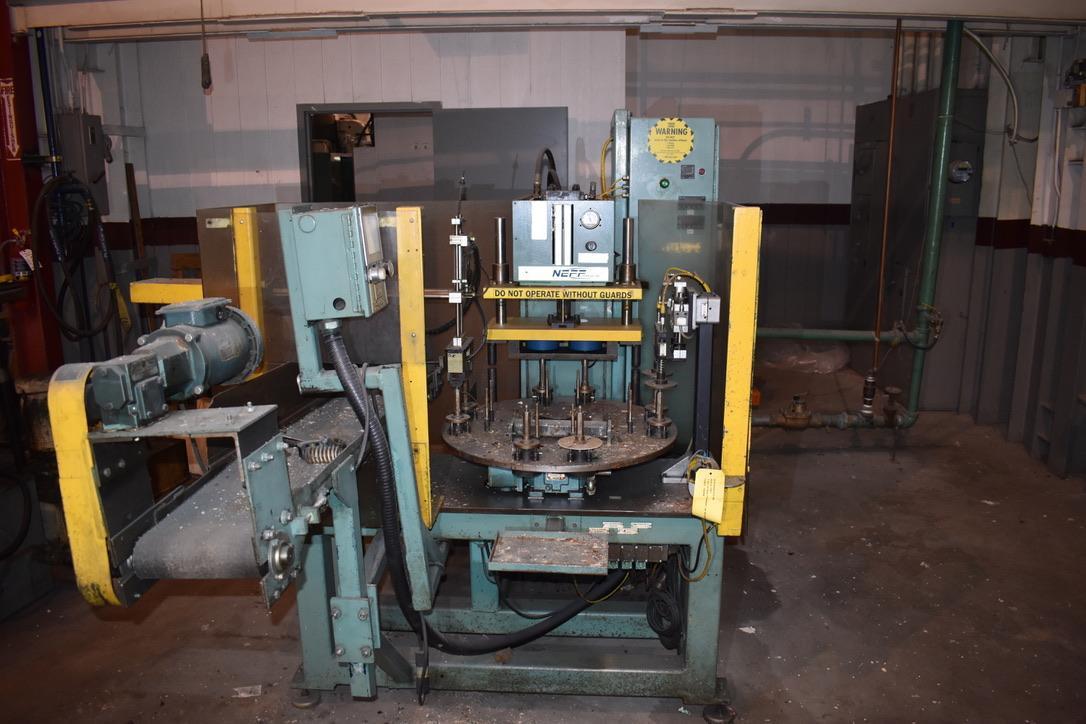

12 TON, NEFF C FRAME HYDRAULIC DOWNACTING PRESS,MODEL D12-5M, 7″ STR, 18″ DLO, 7″ THROAT, WITH REMOVABLE ROTARY TABLE, 1997

12 TON, NEFF C FRAME HYDRAULIC DOWNACTING PRESS,MODEL D12-5M, 7" STR, 18" DLO, 7" THROAT, WITH REMOVABLE ROTARY TABLE, 1997

Brand
NEFF

Model
D12-SM

Type
Presses, Hydraulic

Stock #
5008

Condition
Good

Year
1997

Request a Quote

Specifications

Equipped With

PRELIMINARY SPECIFICATIONS;

NEFF HYDRAULIC C-FRAME PRESS
MODEL D12-5M
NEW IN 1997

12 TON CAPACITY
0-7" STROKE
18" DAYLIGHT OPENING
7" THROAT
3.25" RAM DIAMETER
30" FROM FLOOR TO BED
10" X 21" RAM
30" DIAMETER ROTARY TABLE

SPEEDS
240 IPM ADVANCE
90 IPM PRESS
146 IPM RETURN

VOLTAGE:
575V / 3PHASE / 50/60 CYCLES

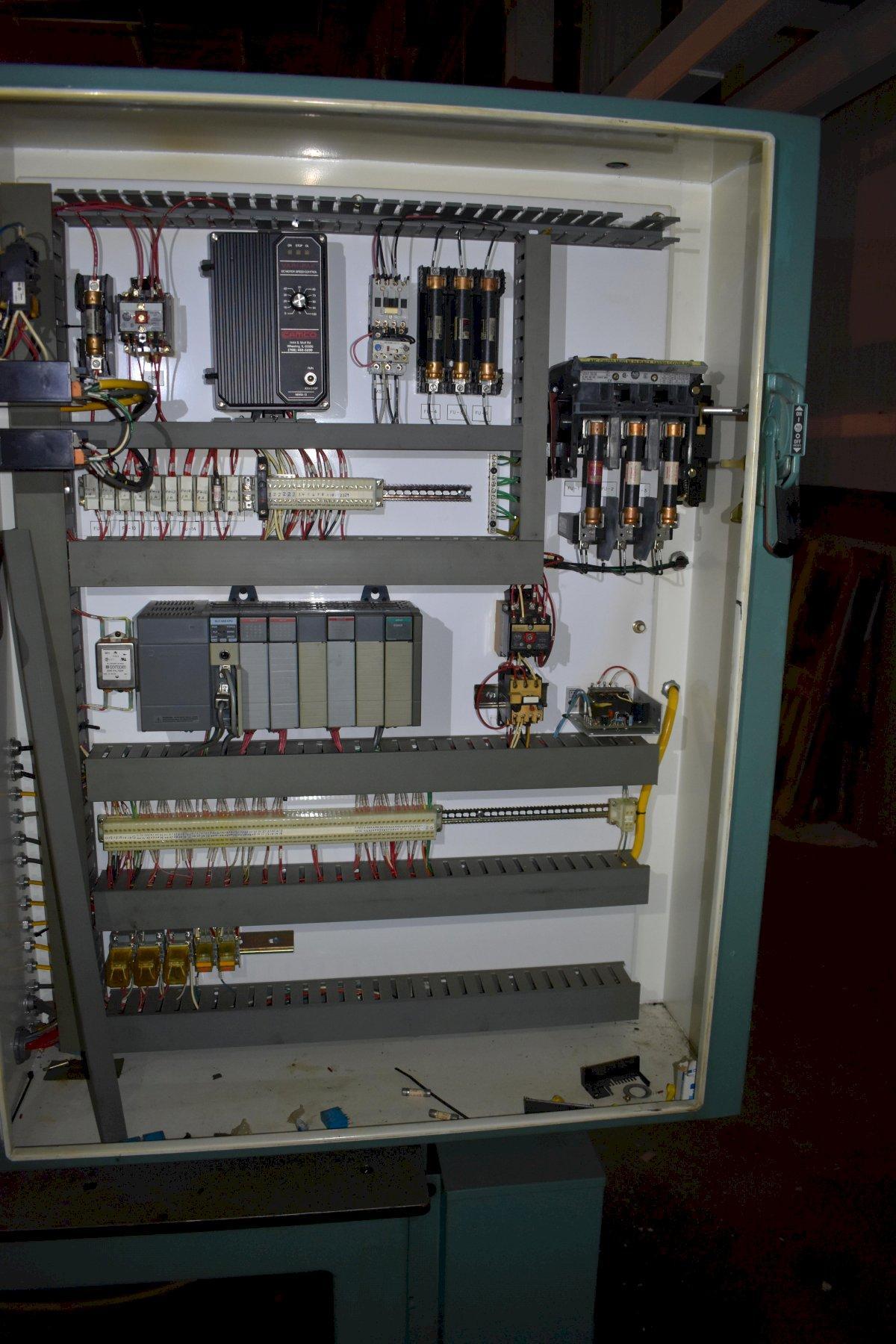

EQUIPPED WITH MOTOR AND CONTROLS
5 HP MOTOR
ATC CONTROLS

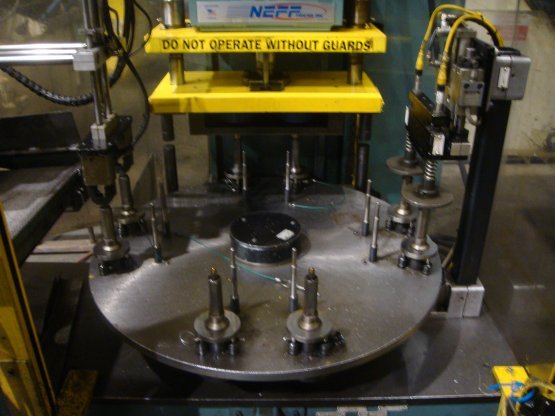

ATC 4-STATION ROTARY INDEX TABLE 30" DIAMETER
UNLOAD CONVEYOR MOTORIZED
STi LIGHT CURTAINS
12 GALLON HYDRAULIC TANK
MAIN RAM CYLINDER PLUS TWO GUIDE CYLINDERS (GUIDE RAM)

THIS IS A VERY MULTI PURPOSE PRESS. THE ROTARY DIAL TABLE IS COMPLETELY REMOVABLE FOR USE AS A STANDARD C FRAME GAP HYD PRESS

OVERALL DIMENSIONS;
APPROX O.A. WEIGHT: 1,500LBS
APPROX O.A. DIMENSIONS: 48"LR X 60"FB X 70"H

CALL FOR YOUR EARLY INSPECTION.
