PRELIMINARY SPECIFICATIONS:

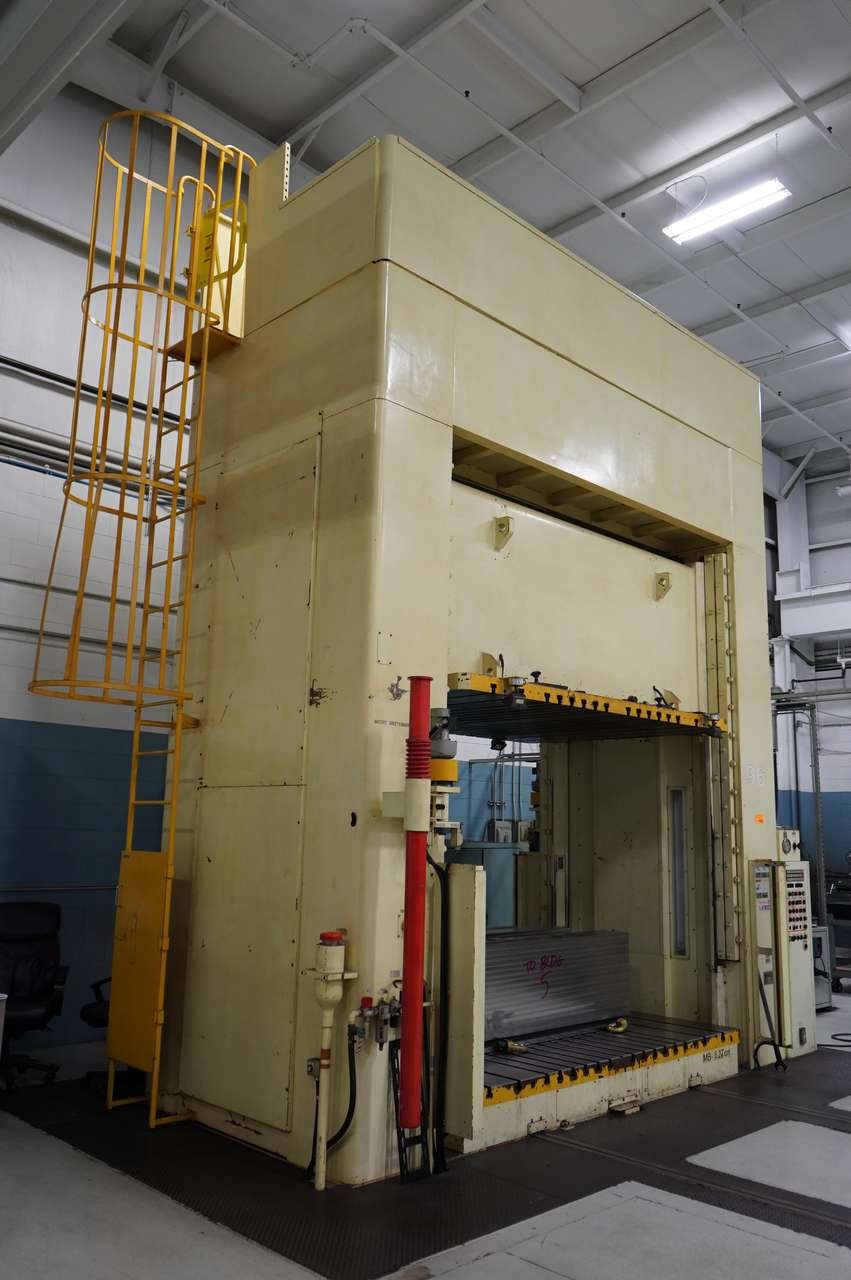

AMINO HYDRAULIC DOWN ACTING SPOTTING PRESS
MODEL DSP 100Y
TIE ROD CONSTRUCTION
YEAR 2008

112 TON CAPACITY (1000 kN)
56 TON RAISING CAPACITY (500 kN)
20 TON MAXIMUM DIE WEIGHT
10 TON MAXIMUM UPPER DIE WEIGHT
67" STROKE (1700 mm)
87" DAYLIGHT (2200 mm)
118" X 79" SLIDE AREA (3000mm X 2000 mm)
118" X 79" BED AREA (3000mm X 2000 mm)
102" TRAVEL FRONT-BACK ROLLING BOLSTER (2600 mm)

SPEEDS:
188 IPM FAST ADVANCE (88 mm/s)
200 IPM FAST RETURN (65 mm/s)
28 IPM PRESSING (12 mm/s)
47-71 IPM SLOW ADVANCE (20-30 mm/s)
47-71 IPM SLOW RETURN (20-30 mm/s)


EQUIPPED WITH
MOTOR & CONTROLS
TOP MOUNTED HYDRAULICS

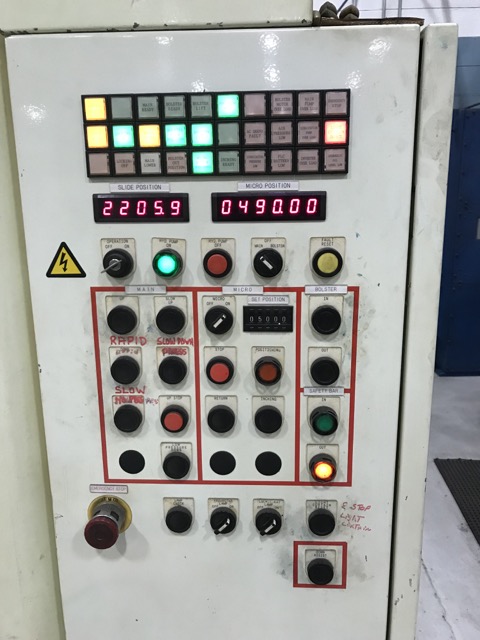

FREE STANDING OPERATORS PANEL
MITSUBISHI CONTROLS
12" THICK ROLLING BOLSTER
GIB GUIDED SLIDE
SAFETY LIGHT CURTAINS
SAFETY BAR
MAIN PUMP
- MODEL TCP34-L25-40 DOUBLE GEARED PUMP
MICRO INCH
HYDRAULIC CLAMP SYSTEM 4 SETS
480V/3PH/60HZ

APPROX. DIMENSIONS:
ESTIMATED WEIGHT: 132,000 LBS
APPROX O.A. DIMENSIONS: 217"LR X 79"FB X 287" H
APPROX FLOOR TO TOP OF PRESS 244" (6200 mm)
PIT  - APPROX 39" DEPTH (990 mm)

PRESS IS DISASSEMBLED AND MOVED INTO STORAGE
AVAILABLE FOR INSPECTION BY APPOINTMENT

Specifications Subject To Verification; Subject To Prior Sale and Price Change
