100 TON GOITI GAP FRAME PRESS, MODEL CFR, 5.5" STR, 11.2" SH, 3.5" ADJ, 38" LR X 24.5" FB BA
100 TON GOITI GAP FRAME PRESS, MODEL CFR, 5.5" STR, 11.2" SH, 3.5" ADJ, 38" LR X 24.5" FB BA
100 TON GOITI GAP FRAME PRESS, MODEL CFR, 5.5" STR, 11.2" SH, 3.5" ADJ, 38" LR X 24.5" FB BA
100 TON GOITI GAP FRAME PRESS, MODEL CFR, 5.5" STR, 11.2" SH, 3.5" ADJ, 38" LR X 24.5" FB BA
100 TON GOITI GAP FRAME PRESS, MODEL CFR, 5.5" STR, 11.2" SH, 3.5" ADJ, 38" LR X 24.5" FB BA
100 TON GOITI GAP FRAME PRESS, MODEL CFR, 5.5" STR, 11.2" SH, 3.5" ADJ, 38" LR X 24.5" FB BA
100 TON GOITI GAP FRAME PRESS, MODEL CFR, 5.5" STR, 11.2" SH, 3.5" ADJ, 38" LR X 24.5" FB BA
100 TON GOITI GAP FRAME PRESS, MODEL CFR, 5.5" STR, 11.2" SH, 3.5" ADJ, 38" LR X 24.5" FB BA
  • 100 TON GOITI GAP FRAME PRESS, MODEL CFR, 5.5" STR, 11.2" SH, 3.5" ADJ, 38" LR X 24.5" FB BA
  • 100 TON GOITI GAP FRAME PRESS, MODEL CFR, 5.5" STR, 11.2" SH, 3.5" ADJ, 38" LR X 24.5" FB BA
  • 100 TON GOITI GAP FRAME PRESS, MODEL CFR, 5.5" STR, 11.2" SH, 3.5" ADJ, 38" LR X 24.5" FB BA
  • 100 TON GOITI GAP FRAME PRESS, MODEL CFR, 5.5" STR, 11.2" SH, 3.5" ADJ, 38" LR X 24.5" FB BA
  • 100 TON GOITI GAP FRAME PRESS, MODEL CFR, 5.5" STR, 11.2" SH, 3.5" ADJ, 38" LR X 24.5" FB BA
  • 100 TON GOITI GAP FRAME PRESS, MODEL CFR, 5.5" STR, 11.2" SH, 3.5" ADJ, 38" LR X 24.5" FB BA
  • 100 TON GOITI GAP FRAME PRESS, MODEL CFR, 5.5" STR, 11.2" SH, 3.5" ADJ, 38" LR X 24.5" FB BA
  • 100 TON GOITI GAP FRAME PRESS, MODEL CFR, 5.5" STR, 11.2" SH, 3.5" ADJ, 38" LR X 24.5" FB BA

100 TON GOITI GAP FRAME PRESS, MODEL CFR, 5.5" STR, 11.2" SH, 3.5" ADJ, 38" LR X 24.5" FB BA

Brand
GOITI

Model
CFR

Type
Presses, Gap Frame, Single Crank

Stock #
7269

Condition
Good

Year

Request a Quote

Specifications

Equipped With

PRELIMINARY SPECIFICATIONS

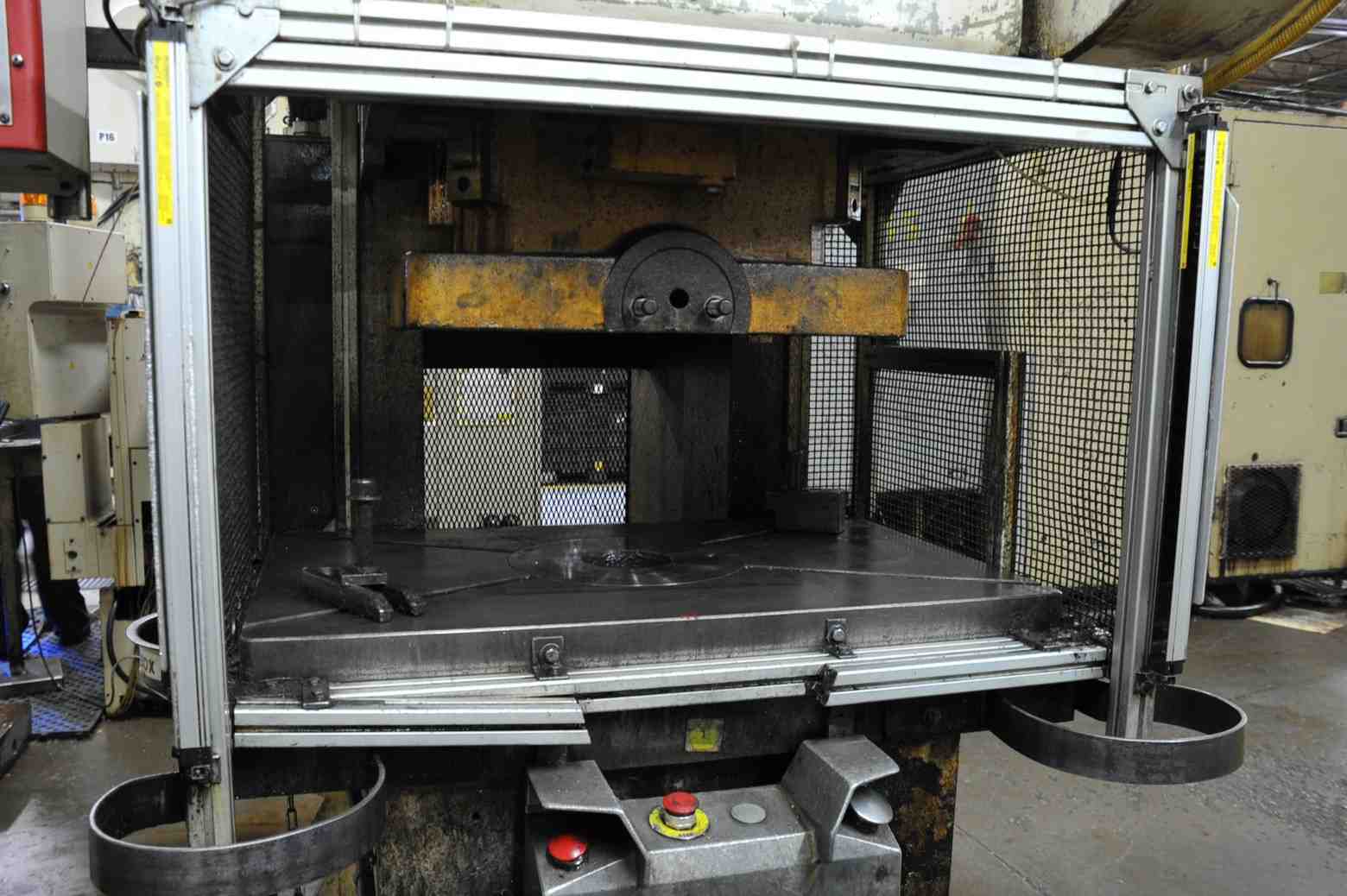

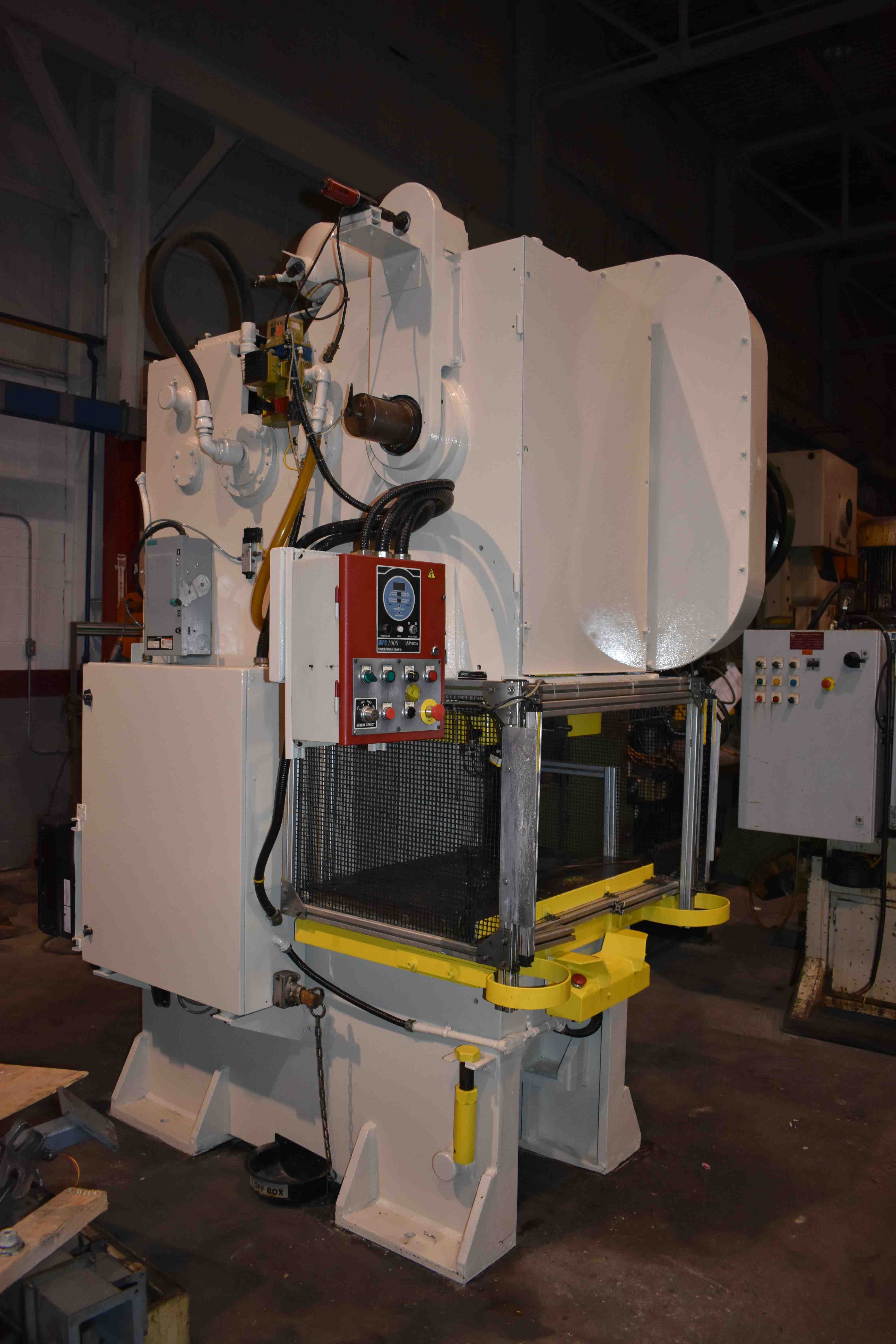

GOITI GAP FRAME PRESS
MODEL CFR
S/N 84-429-51

100 TON CAPACITY
5.5" STROKE (140 mm)
11.2" SHUT HEIGHT
3.54" ADJUSTMENT (90 mm)

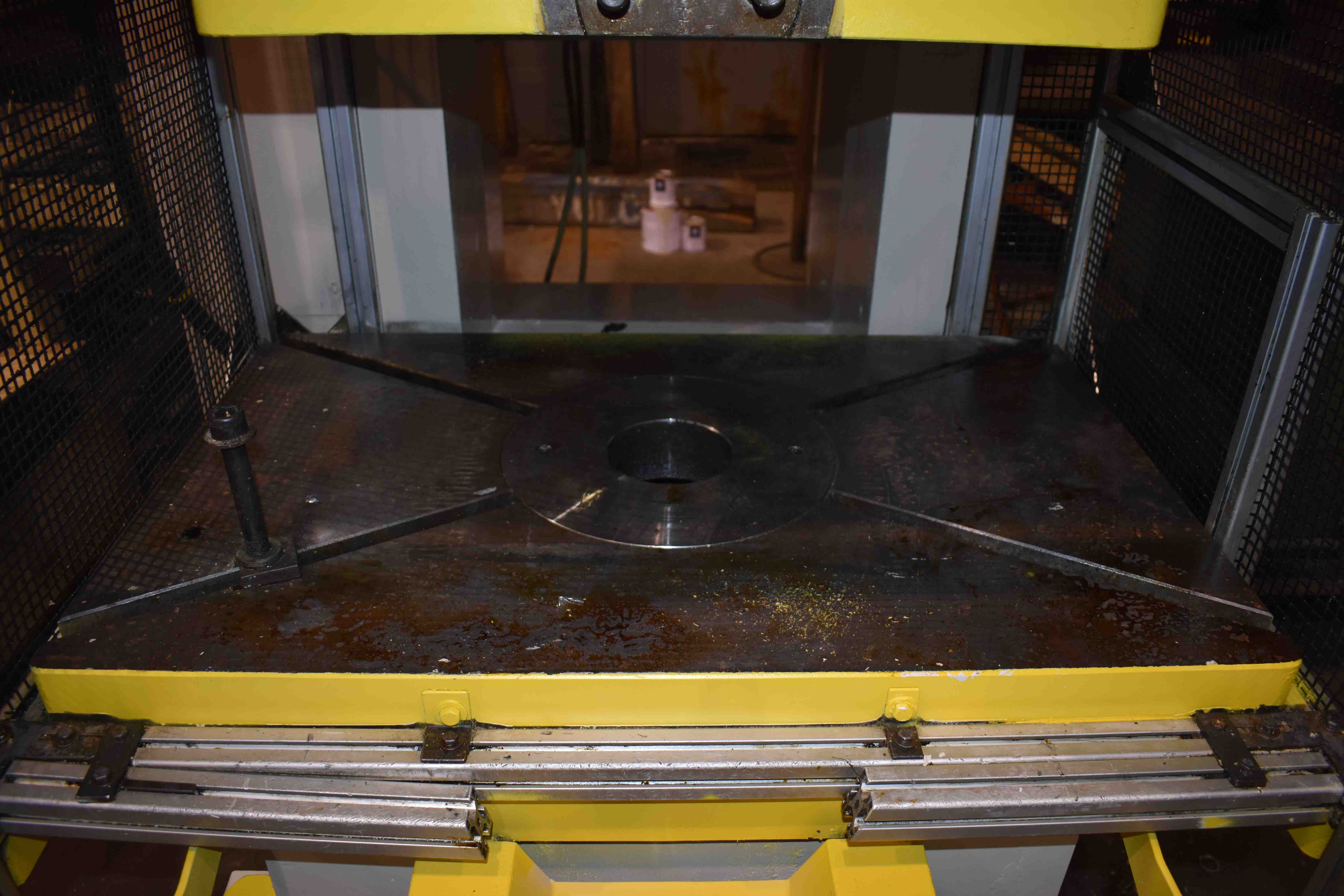

38" LR X 24.5" FB BED AREA
24" LR X 18" FB RAM AREA
56 SPM

EQUIPPED WITH

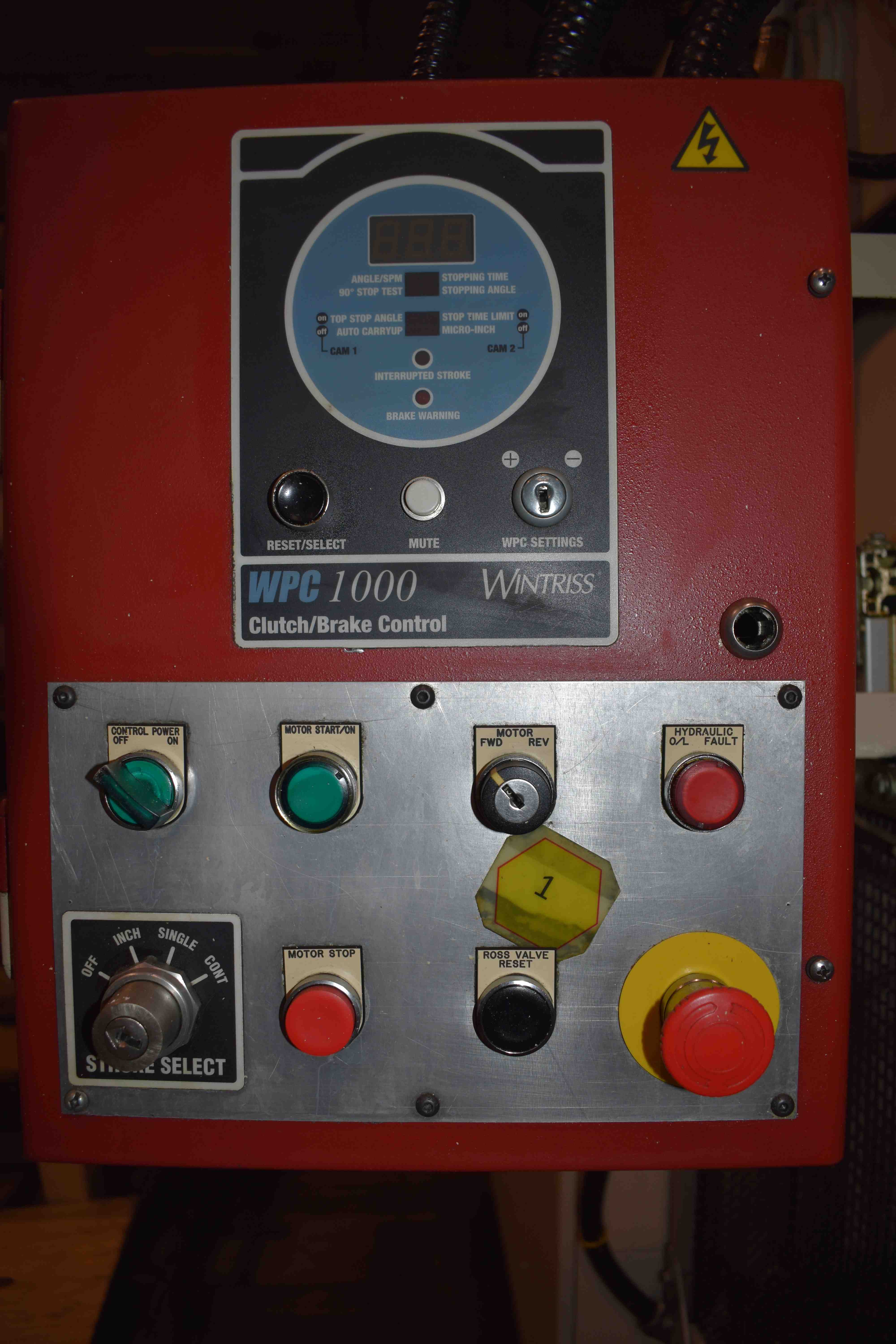

WINTRESS MODEL WPC-1000 CLUTCH & BRAKE CONTROLS
OMRON SAFETY LIGHT CURTAINS
OPERATOR PALM BUTTONS

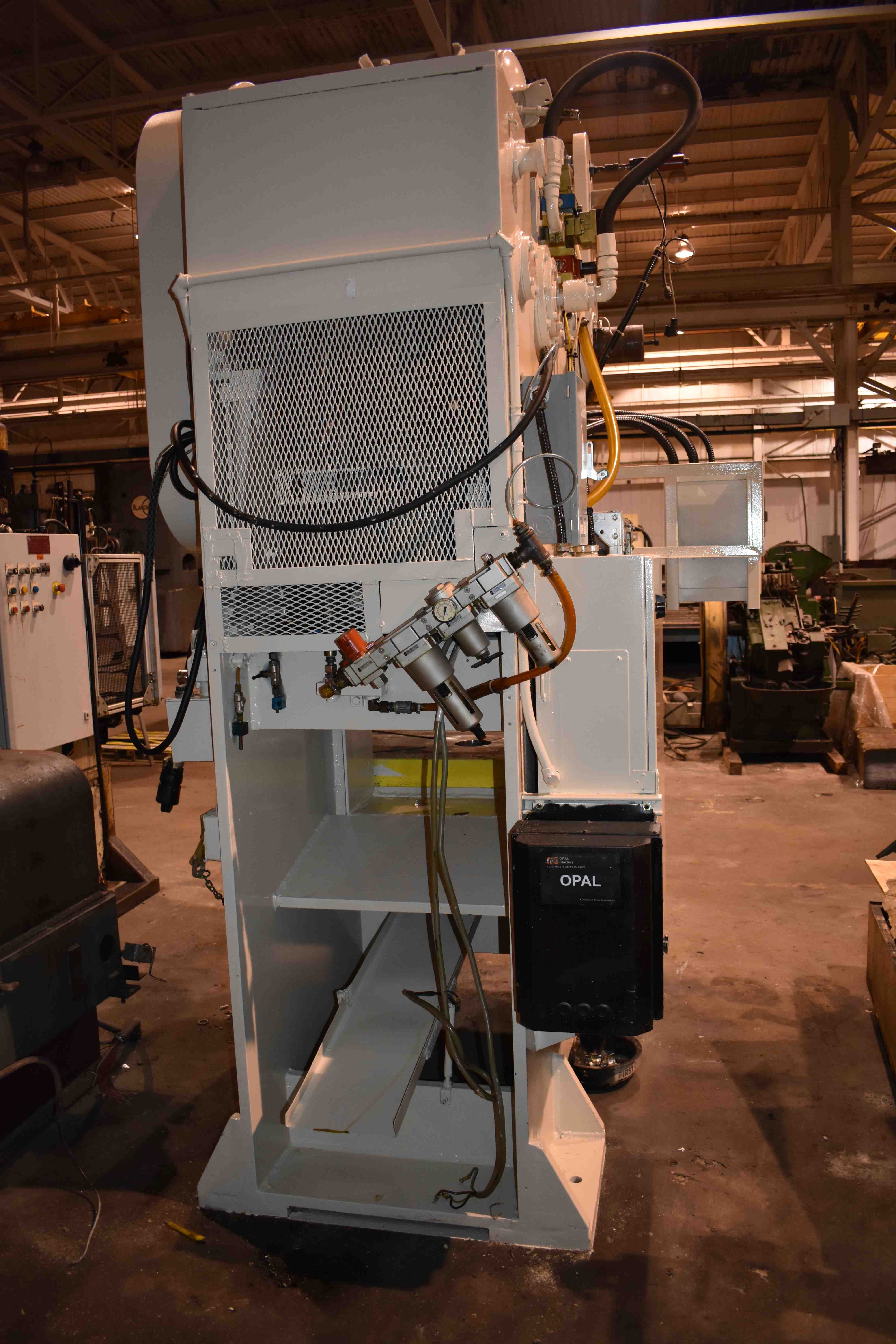

CEDISA TARRASA LUBE SYSTEM
T-SLOTTED BOLSTER

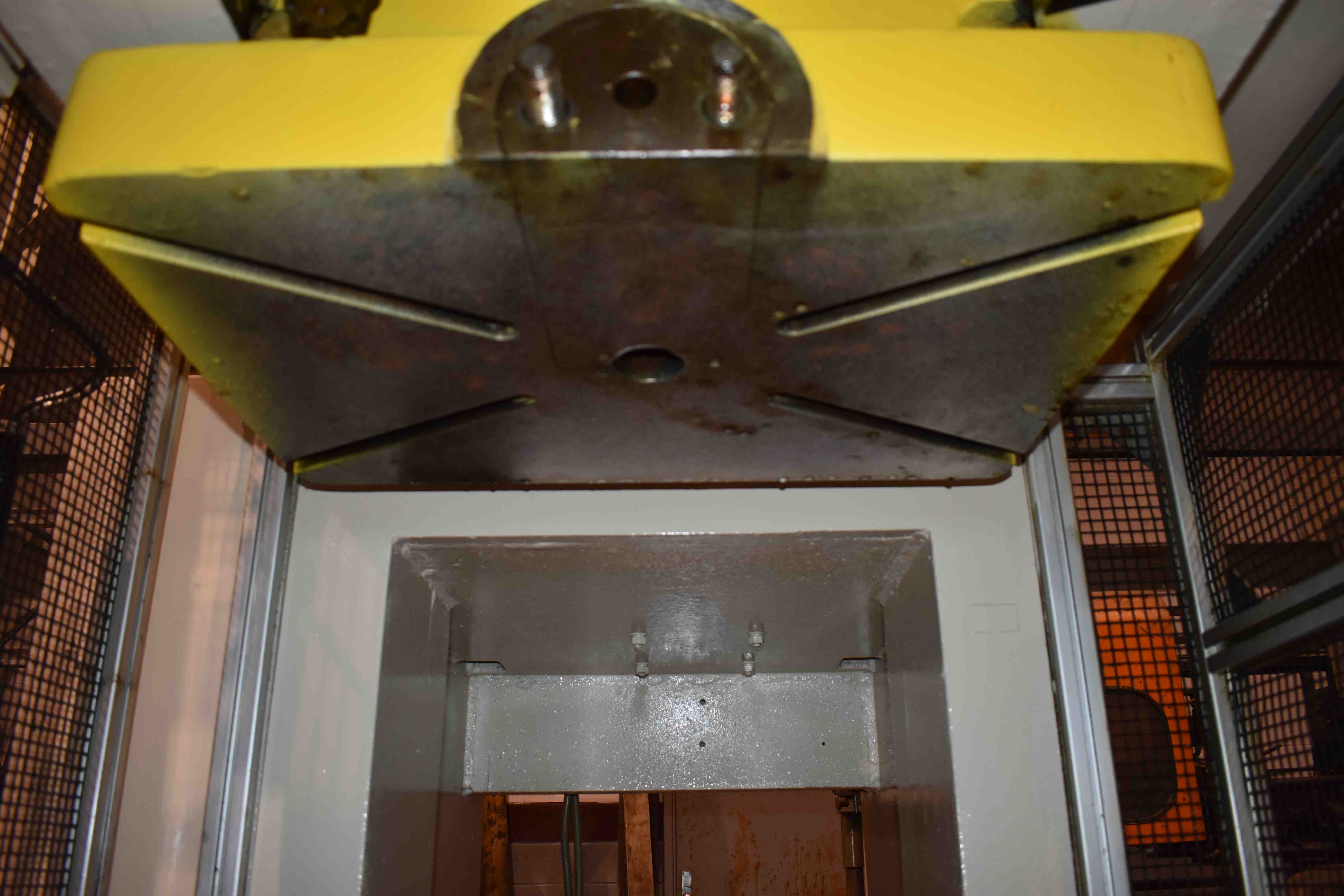

T-SLOTTED RAM
ISOLATOR PADS
10 HP MAIN MOTOR, 1750 RPM, 3 PH, 60 Hz

APPROX. SHIPPING DIMENSIONS 68" L-R X 84" F-B X 119" H (With Motor Removed)
ESTIMATED WEIGHT 27,000 LBS

PRESS HAS BEEN CLEANED & PAINTED!!!
AVAILABLE FOR INSPECTION, AVAILABLE IMMEDIATELY!!!

Specifications Subject To Verification; Subject To Prior Sale and Price Change
We encourage your personal inspection of this machine, available immediately!
